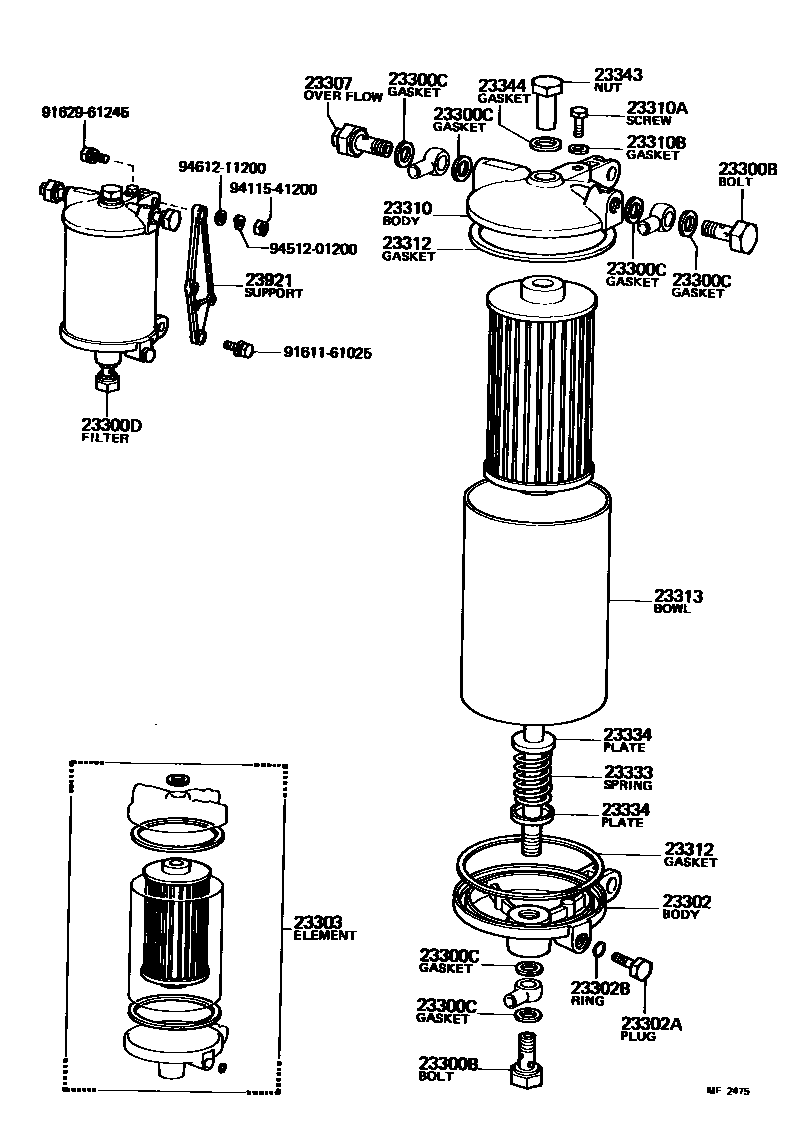

FUEL FILTER

0001 1 0002 1 0003 1 0004 1

23300FILTER ASSY, FUEL

main23030-60020iF..FA100,11#,FC100197204-197501

main23030-60030iF..FA100,115197501-197505

main23030-61020iF..FA100,115197505-198207

main23300-30011iF..FA100,11#,FB100,FC100196903-197001

main23300-30012iF..FA100,11#,FB100,FC100197001-197204

23300BUNION, NIPPLE(FOR FUEL FILTER OUTLET)

main90401-14007×2i2D..DA11#,DB10#196903-197403

main90401-14060×2i2D..DA11#,DB105197404-197704

23300CGASKET, NIPPLE UNION(FOR FUEL)

main22125-77020×6i2D..DA11#,DB10#196903-197704

main94712-77121×8i2D..DA11#197903-200112

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-76051i2D..DA11#,DB10#196903-197704

main23300-77010×2i2D..DA11#197704-197910

main23300-77011×2i2D..DA11#197910-200112

23302BODY SUB-ASSY, FUEL FILTER, LOWER

main23302-76021i2D..DA11#,DB10#196903-196908

main23302-76022i2D..DA11#,DB10#196908-197704

23302APLUG(FOR FUEL FILTER LOWER BODY)

main23351-46010i2D..DA11#,DB10#196903-197704

23302BRING(FOR FUEL FILTER LOWER BODY)

main23353-46010i2D..DA11#,DB10#196903-197704

23303ELEMENT SUB-ASSY, FUEL FILTER

main04234-30010iF..FA100,11#,FB100,FC100196903-197204

main04234-56010×2i2D..DA11#197704-197908

main04234-76010i2D..DA11#,DB10#197201-197704

main04234-77010×2i2D..DA11#197908-200112

main23303-76021i2D..DA11#,DB10#196903-197201

23307OVERFLOW SUB-ASSY, FUEL FILTER

main23307-76021i2D..DA11#,DB10#196903-197704

23310BODY, FUEL FILTER, UPPER

main23311-76013i2D..DA11#,DB10#196903-197704

23310ASCREW, AIR VENT(FOR FUEL FILTER)

main23351-76010i2D..DA11#,DB10#196903-197704

23310BGASKET, AIR VENT(FOR FUEL FILTER)

main23353-76020i2D..DA11#,DB10#196903-197704

23312GASKET, FILTER BOWL

main23312-30010iF..FA100,11#,FB100,FC100196903-197204

main23312-56010×2i2D..DA11#197704-198109

main23312-68010×2i2D..DA11#198109-200112

main23312-76020×2i2D..DA11#,DB10#196903-197704

23313BOWL OR CYLINDER, FUEL FILTER

main23313-30010iF..FA100,11#,FB100,FC100196903-197204

main23313-76012i2D..DA11#,DB10#196903-197704

23333SPRING, FILTER ELEMENT SET

main23333-30010iF..FA100,11#,FB100,FC100196903-197204

main23333-56010×2i2D..DA11#197704-200112

main23333-76021i2D..DA11#,DB10#196903-197704

23334PLATE, SPRING(FOR FILTER ELEMENT)

main23334-46010×2i2D..DA11#197704-200112

main23334-76021×2i2D..DA11#,DB10#196903-197704

23343NUT, CLAMPING(FOR FUEL FILTER)

main23343-76021i2D..DA11#,DB10#196903-197704

23344GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-46010×2i2D..DA11#197704-198109

main23344-68010×2i2D..DA11#198109-200112

main23344-76020i2D..DA11#,DB10#196903-197704

23921SUPPORT, FUEL FILTER

main23921-76010i2D..DA11#,DB10#196903-197704

main23921-77020×2i2D..DA11#197704-200112

9161161025

main91611-61025

9162961245

main91629-61245

9411541200

main94115-41200

9451201200

main94512-01200

9461211200

main94612-11200

24 parts on this diagram · 4 diagrams in section
