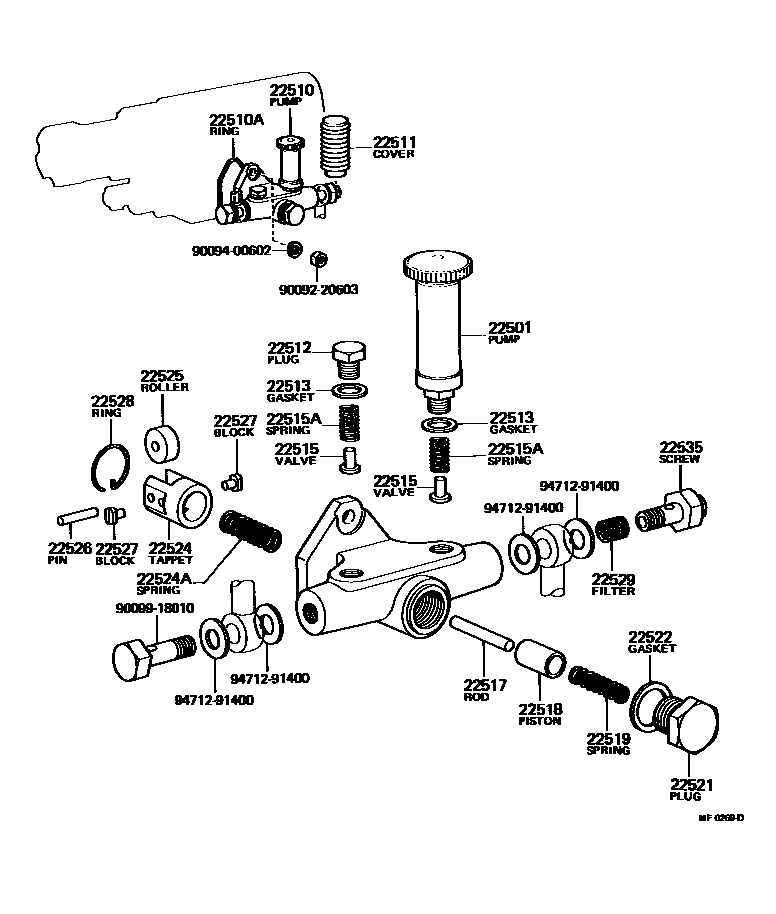

FUEL FEED PUMP

0001 1 0002 1 0003 1

22501PUMP SUB-ASSY, PRIMING

main22501-77020i2D..DA11#,DB10#196903-197901

main22501-77021i2D..DA11#197901-200112

22510PUMP ASSY, FUEL FEED

main22510-46010i2D..DA11#,DB10#196903-197704

main22510-77121i2D..DA11#197404-197704

W/MECHANICAL GOVERNOR

main22510-77130i2D..DA11#197704-200112

22510ARING, O(FOR FUEL FEED PUMP)

main90099-14015i2D..DA11#,DB10#196903-200112

22511COVER, PRIMING PUMP

main22511-77020i2D..DA11#,DB10#196903-198002

22512PLUG, FEED PUMP CHECK VALVE CHAMBER

main22512-77020i2D..DA11#,DB10#196903-200112

22513GASKET, CHECK VALVE CHAMBER PLUG

main22513-77020×2i2D..DA11#,DB10#196903-200112

22515VALVE, FEED PUMP CHECK

main22515-77020×2i2D..DA11#,DB10#196903-198708

main22515-77021×2i2D..DA11#198708-200112

22515ASPRING, FEED PUMP CHECK VALVE

main90501-05141×2i2D..DA11#,DB10#196903-200112

22517ROD, FEED PUMP PUSH

main22517-77020i2D..DA11#,DB10#196903-197704

22518PISTON, FEED PUMP

main22518-56010i2D..DA11#197704-198708

RED,RED

main22518-56011i2D..DA11#197704-198708

YELLOW,YELLOW

main22518-56012i2D..DA11#197704-200112

GREEN,GREEN

main22518-56013i2D..DA11#197704-198708

WHITE,WHITE

main22518-77020i2D..DA11#198708-200112

BLUE,RED;WHITE;YELLOW

22519SPRING, FEED PUMP PISTON

main22519-48010i2D..DA11#197704-200112

main90501-23132i2D..DA11#,DB10#196903-197704

22521PLUG, FEED PUMP PISTON CHAMBER

main22521-77020i2D..DA11#,DB10#196903-198708

main22521-77021i2D..DA11#198708-200112

22522GASKET, FEED PUMP PISTON PLUG

main22522-77020i2D..DA11#,DB10#196903-198708

main90099-01432i2D..DA11#198708-200112

22524TAPPET, FEED PUMP

main22524-77020i2D..DA11#,DB10#196903-197704

main22524-77021i2D..DA11#197704-200112

22524ASPRING, FEED PUMP TAPPET

main90501-10125i2D..DA11#,DB10#196903-197704

22525ROLLER, FEED PUMP TAPPET

main22525-77020i2D..DA11#,DB10#196903-200112

22526PIN, FEED PUMP TAPPET ROLLER

main22526-77020i2D..DA11#,DB10#196903-200112

22527BLOCK, FEED PUMP TAPPET SLIDING

main22527-56010×2i2D..DA11#197704-200112

main22527-77020×2i2D..DA11#,DB10#196903-197704

22528RING, FEED PUMP TAPPET SNAP

main22528-77020i2D..DA11#,DB10#196903-200112

22529FILTER, FUEL PUMP

main22529-67010i2D..DA11#197704-200112

main22529-76010i2D..DA11#,DB10#196903-197704

22535SCREW, FUEL PIPE FOLLOW

main22535-46010i2D..DA11#197704-200112

main22535-77050i2D..DA11#,DB10#196903-197704

9009220603

main90092-20603

9009400602

main90094-00602

9009918010

main90099-18010

9471291400

main94712-91400

25 parts on this diagram · 3 diagrams in section
