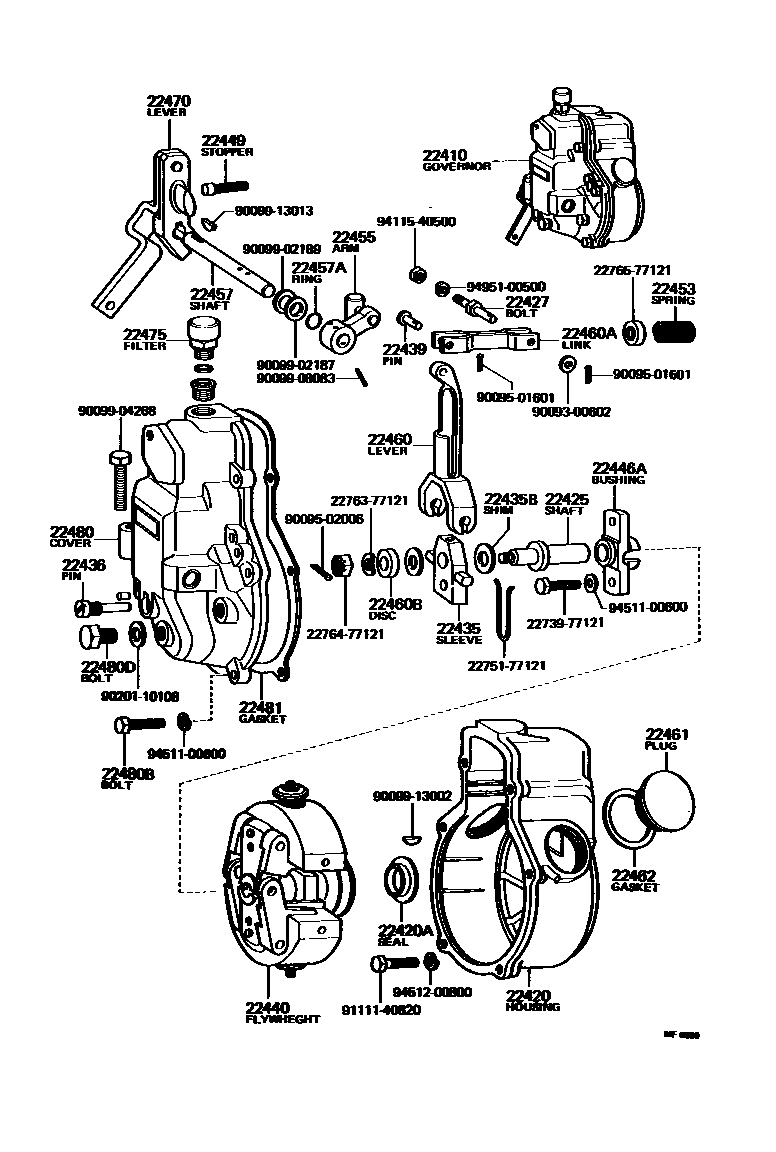

MECHANICAL GOVERNOR

0001 1 0003 1 0004 1

22410GOVERNOR ASSY, INJECTION PUMP MECHANICAL

main22410-77121i2D..DA11#197404-197503

main22410-77123i2D..DA11#197503-197511

main22410-77124i2D..DA11#197511-197704

22420HOUSING SUB-ASSY, MECHANICAL GOVERNOR

main22401-77123i2D..DA11#197503-197704

main22711-77121i2D..DA115..LHD197204-197403

22420ASEAL, OIL

main90099-05003i2D..DA115..LHD197204-197403

main90099-15002i2D..DA11#197503-197704

22425SHAFT SUB-ASSY, GOVERNOR

main22802-77121i2D..DA115..LHD197204-197403

22427BOLT, CONNECTING

main22329-77021i2D..DA115..LHD197204-197403

22435SLEEVE SUB-ASSY, FLY WEIGHT

main22405-77123i2D..DA11#197503-197704

main22761-77121i2D..DA11#197404-197503

22435BSHIM

main22795-77121i2D..DA11#197404-197503

main22796-77121i2D..DA11#197404-197503

main22797-77121i2D..DA11#197404-197503

main22798-77121i2D..DA11#197404-197503

main22799-77121i2D..DA11#197404-197503

main90093-31004i2D..DA11#197503-197704

T=0.2

main90093-31005i2D..DA11#197503-197704

T=0.3

main90093-31006i2D..DA11#197503-197704

T=0.4

main90093-31007i2D..DA11#197503-197704

T=0.1

main90093-31008i2D..DA11#197503-197704

T=1.0

22436PIN, CONNECTING

main22793-77121i2D..DA11#197404-197503

22439PIN, SHACKLE

main22782-77121i2D..DA115..LHD197204-197403

22440FLYWEIGHT SUB-ASSY

main22404-77123i2D..DA11#197503-197704

main22720-77121i2D..DA11#197404-197503

22446ABUSH, BEARING

main22738-77121i2D..DA11#197404-197503

22449STOPPER

main22443-77123i2D..DA11#197503-197704

NO.1

main22443-77124i2D..DA11#197503-197704

NO.2

main22776-77121i2D..DA11#197404-197503

22453SPRING, ADAPTER

main22783-77121i2D..DA115..LHD197204-197403

22455ARM SUB-ASSY

main22460-77121i2D..DA11#197404-197503

22457SHAFT

main22466-77121i2D..DA115..LHD197204-197403

22457ASEAL, OIL

main90099-04006i2D..DA115..LHD197204-197403

22460LEVER SUB-ASSY, SUPPORT

main22409-77123i2D..DA11#197503-197704

main22771-77121i2D..DA115..LHD197204-197403

22460ALINK ASSY, FORK

main22780-77121i2D..DA115..LHD197204-197403

22460BDISC, COVER

main22762-77121i2D..DA115..LHD197204-197403

22461PLUG, SCREW

main22446-47030i2D..DA11#197503-197704

main22477-77123×2i2D..DA11#197503-197704

MECHANICAL GOVERNOR SIDE

main22787-77121×2i2D..DA115..LHD197204-197403

22462WASHER, SEAL

main22447-47030i2D..DA11#197503-197704

main22786-77121i2D..DA115..LHD197204-197403

22470LEVER SUB-ASSY, FLOATING

main22470-77121i2D..DA11#197404-197503

22475FILTER SUB-ASSY

main22450-77121i2D..DA115..LHD197204-197403

22480COVER SUB-ASSY, GOVERNOR

main22703-77121i2D..DA115..LHD197204-197403

main22703-77123i2D..DA11#197503-197511

main22703-77124i2D..DA11#197511-197704

22480BBOLT

main90099-04262×6i2D..DA115..LHD197204-197403

22480DSCREW, ADJUSTING

main22776-77123i2D..DA11#197503-197704

main22791-77121i2D..DA11#197404-197503

22481GASKET

main22442-77123i2D..DA11#197503-197704

main22774-77121i2D..DA115..LHD197204-197403

2273977121BOLT, GOVERNOR LINK SUPPORT

main22739-77121

2275177121WIRE SUB-ASSY, FUEL CUT SOLENOID

main22751-77121

2276377121

main22763-77121

2276477121

main22764-77121

2276577121

main22765-77121

9009300602

main90093-00602

9009501601

main90095-01601

9009502006

main90095-02006

9009902187

main90099-02187

9009902189

main90099-02189

9009904268

main90099-04268

9009908083

main90099-08083

9009913002

main90099-13002

9009913013

main90099-13013

9020110108

main90201-10108

9111140820

main91111-40820

9411540500

main94115-40500

9451100600

main94511-00600

9451200800

main94512-00800

9495100500

main94951-00500

47 parts on this diagram · 3 diagrams in section
