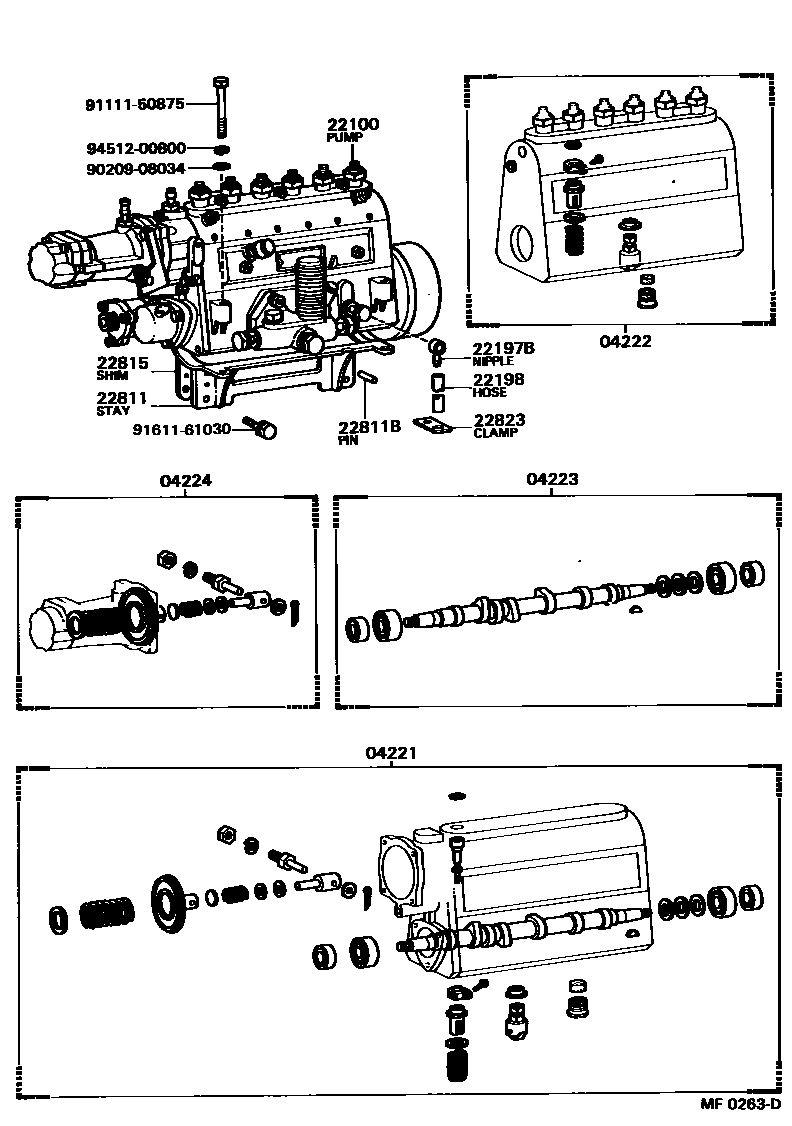

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1 0004 1 0005 1

04221PUMP KIT, INJECTION

main04221-77010i2D..DA11#,DB10#196903-197704

04222SPRING KIT, INJECTION

main04222-76060i2D..DA11#,DB10#196903-197704

04223CAMSHAFT KIT, INJECTION PUMP

main04223-76060i2D..DA11#,DB10#196903-197704

04224GOVERNOR KIT, PNEUMATIC

main04224-77010i2D..DA11#,DB10#196903-197704

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-77051i2D..DA11#196903-197501

main22100-77052i2D..DA11#197501-197503

main22100-77053i2D..DA11#197503-197704

main22100-77080i2D..DB10#196903-197501

main22100-77081i2D..DB105197501-197503

main22100-77082i2D..DB105197503-197703

main22100-77090i2D..DA11#197404-197501

W/EXHAUST BRAKE

main22100-77091i2D..DA11#197501-197503

W/EXHAUST BRAKE

main22100-77092i2D..DA11#197503-197704

W/EXHAUST BRAKE

main22100-77121i2D..DA115..LHD197204-197403

W/MECHANICAL GOVERNOR

main22100-77122i2D..DA11#197501-197503

W/MECHANICAL GOVERNOR

main22100-77123i2D..DA11#197503-197511

W/MECHANICAL GOVERNOR

main22100-77124i2D..DA11#197511-197704

W/MECHANICAL GOVERNOR

main22100-77130i2D..DA11#197704-197803

W/EXHAUST BRAKE

main22100-77131i2D..DA11#197802-197805

W/EXHAUST BRAKE

main22100-77132i2D..DA11#197805-200112

W/EXHAUST BRAKE

main22100-77140i2D..DA11#197704-197802

W/EXHAUST BRAKE & HAC

main22100-77141i2D..DA11#197802-197805

W/EXHAUST BRAKE & HAC

main22100-77142i2D..DA11#197805-200112

W/EXHAUST BRAKE & HAC

main22100-77190i2D..DA11#197704-197803

main22100-77191i2D..DA11#197802-197805

main22100-77200i2D..DA11#197704-197802

W/HAC

main22100-77201i2D..DA11#197802-197805

W/HAC

main22100-77202i2D..DA11#197805-200112

W/HAC

main22100-77270i2D..DA11#197805-200112

22197BNIPPLE

main90405-06013i2D..DA11#,DB10#196903-197704

22198PIPE OR HOSE, OVER FLOW

main90446-07026i2D..DA11#,DB10#196903-197704

22811STAY, INJECTION PUMP, NO.1

main22811-76010i2D..DA11#,DB10#196903-197704

main22811-77020i2D..DA11#197704-197803

main22811-77021i2D..DA11#197803-198005

main22811-77022i2D..DA11#198005-200112

22811BPIN, DOWEL(FOR INJECTION PUMP STAY)

main90250-08030×2i2D..DA11#198204-200112

main90250-08050×2i2D..DA11#,DB10#196903-198204

22815SHIM, INJECTION PUMP STAY

main22815-76010i2D..DA11#,DB10#196903-200112

T=0.1

main22816-76010i2D..DA11#,DB10#196903-200112

T=0.2

22823CLAMP, INJECTION PUMP DRAIN PIPE

main22823-76010i2D..DA11#,DB10#196903-197704

9020908034

main90209-08034

9111150875

main91111-50875

9161161030

main91611-61030

9451200800

main94512-00800

15 parts on this diagram · 5 diagrams in section
