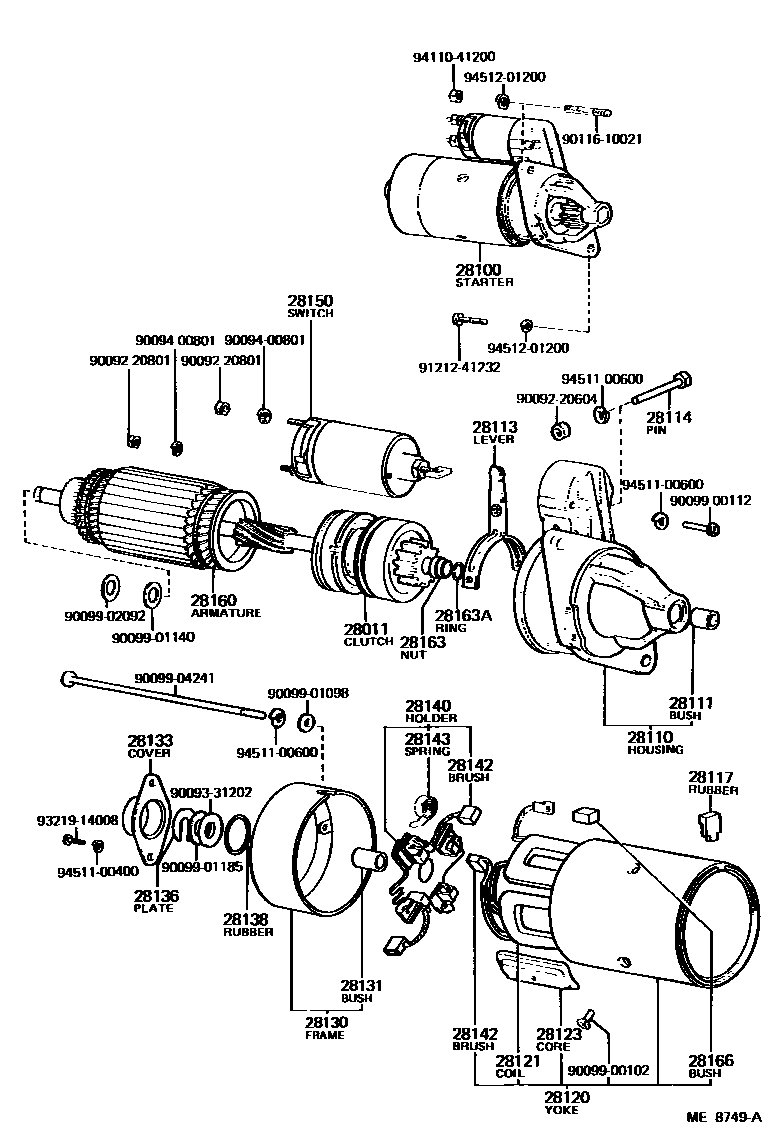

STARTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

28011CLUTCH SUB-ASSY, STARTER

main28011-54010i2D..DA11#197802-198002

24V 4.5KW

main28011-60041iF..FA100,11#,FB100,FC100196903-198207

12V 1.0KW

main28011-66010i2D..DA11#,DB10#197101-197106

24V 4.5KW

main28011-66011i2D..DA11#,DB10#197401-197704

24V 4.5KW

main28011-77040i2D..DA11#,DB10#196903-197101

24V 4.5KW

main28011-77041i2D..DA11#,DB10#197106-197401

24V 4.5KW

main28011-77090i2D..DA11#197704-197802

24V 4.5KW

28100STARTER ASSY

main28100-60040iF..FA100,11#,FB100,FC100196903-196907

12V 1.0KW

main28100-60041iF..FA100,11#,FB100,FC100196907-197906

12V 1.0KW

main28100-60042iF..FA100,115197906-198207

12V 1.0KW

sub28100-60090

main28100-77040i2D..DA11#,DB10#196903-197506

24V 4.5KW

main28100-77041i2D..DA11#,DB105197506-197704

24V 4.5KW

main28100-77060i2D..DA11#,DB10#196903-197704

24V 4.5KW,EXHAUST BRAKE

main28100-77090i2D..DA11#197704-198002

24V 4.5KW

main28100-77110i2D..DA11#198002-200112

24V 4.5KW,24V 4.5KW

28110HOUSING ASSY, STARTER DRIVE

main28110-60040iF..FA100,11#,FB100,FC100196903-196907

12V 1.0KW

main28110-60041iF..FA100,11#,FB100,FC100196907-198207

12V 1.0KW

main28110-77041i2D..DA11#,DB10#196903-197101

24V 4.5KW

main28110-77042i2D..DA11#,DB10#197101-197106

24V 4.5KW

main28110-77043i2D..DA11#,DB10#197106-197401

24V 4.5KW

main28110-77044i2D..DA11#,DB10#197401-197506

24V 4.5KW

main28110-77045i2D..DA11#,DB105197506-197704

24V 4.5KW

main28110-77060i2D..DA11#,DB10#197101-197106

24V 4.5KW,EXHAUST BRAKE

sub28110-77040

main28110-77061i2D..DA11#,DB10#197106-197401

24V 4.5KW,EXHAUST BRAKE

main28110-77062i2D..DA11#,DB10#197401-197704

24V 4.5KW,EXHAUST BRAKE

main28115-77090i2D..DA11#197704-200112

24V 4.5KW

28111BUSH(FOR STARTER HOUSING)

main28111-47010i2D..DA11#,DB10#197101-197704

24V 4.5KW

main28111-51011iF..FA100,11#,FB100,FC100196907-198207

12V 1.0KW

main28111-77040i2D..DA11#,DB10#196903-197101

24V 4.5KW

main90099-10050iF..FA100,11#,FB100,FC100196903-196907

12V 1.0KW,STD

main90099-10052iF..FA100,11#,FB100,FC100196903-196907

12V 1.0KW,U/S 0.3

main90099-10053iF..FA100,11#,FB100,FC100196903-196907

12V 1.0KW,U/S 0.5

28113LEVER, STARTER PINION DRIVE

main28113-40010iF..FA100,11#,FB100,FC100196903-196907

12V 1.0KW

main28113-41011iF..FA100,11#,FB100,FC100196907-198207

12V 1.0KW

main28113-66010i2D..DA11#,DB10#197101-197401

24V 4.5KW

main28113-66011i2D..DA11#,DB10#197401-197704

24V 4.5KW

main28113-77040i2D..DA11#,DB10#196903-197101

24V 4.5KW

28114PIN, STARTER DRIVE LEVER SET

main28114-40010iF..FA100,11#,FB100,FC100196903-196907

12V 1.0KW

main28114-41011iF..FA100,11#,FB100,FC100196907-198207

12V 1.0KW

main28114-76010i2D..DA11#,DB10#196903-197506

24V 4.5KW,EXHAUST BRAKE

main28114-77040i2D..DA11#,DB10#196903-197506

24V 4.5KW

28117RUBBER(FOR STARTER YOKE)

main28117-41020iF..FA100,11#,FB100,FC100196907-198207

12V 1.0KW

28120YOKE ASSY, STARTER

main28120-42020iF..FA100,115197906-198207

12V 1.0KW

main28120-56071i2D..DA11#198708-200112

24V 4.5KW

main28120-60040iF..FA100,11#,FB100,FC100196903-196907

12V 1.0KW

main28120-60041iF..FA100,11#,FB100,FC100196907-197906

12V 1.0KW

sub28120-60042

sub28126-40061

main28120-66010i2D..DA11#,DB10#197101-197704

24V 4.5KW

main28120-77041i2D..DA11#,DB10#196903-197101

24V 4.5KW

main28120-77090i2D..DA11#197704-198708

24V 4.5KW

28121COIL, STARTER FIELD

main28121-34070iF..FA100,115197906-198207

12V 1.0KW

main28121-41020iF..FA100,11#,FB100,FC100196907-197906

12V 1.0KW

main28121-60040iF..FA100,11#,FB100,FC100196903-196907

12V 1.0KW

main28121-66010i2D..DA11#,DB10#197101-197704

24V 4.5KW

main28121-77040i2D..DA11#,DB10#196903-197101

24V 4.5KW

28123CORE, STARTER POLE

main28123-41020×4iF..FA100,11#,FB100,FC100196907-198207

12V 1.0KW

main28123-50010×4iF..FA100,11#,FB100,FC100196903-196907

12V 1.0KW

main28123-76010×4i2D..DA11#,DB10#196903-197704

24V 4.5KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-41020iF..FA100,11#,FB100,FC100196907-198101

12V 1.0KW

main28130-50010iF..FA100,11#,FB100,FC100196903-196907

12V 1.0KW

main28130-60042iF..FA100,115198101-198207

12V 1.0KW

main28130-77041i2D..DA11#,DB10#196903-197704

24V 4.5KW

main28130-77090i2D..DA11#197704-200112

24V 4.5KW

sub28130-77110

sub28199-46080

sub90099-04207

28131BUSH, COMMUTATOR END FRAME

main28111-47010i2D..DA11#,DB10#197401-197704

24V 4.5KW

main28131-20010iF..FA100,11#,FB100,FC100196903-198207

12V 1.0KW,STD

main28131-76010i2D..DA11#,DB10#196903-197401

24V 4.5KW

main90099-10039iF..FA100,11#,FB100,FC100196903-198207

12V 1.0KW,U/S 0.3

main90099-10040iF..FA100,11#,FB100,FC100196903-198207

12V 1.0KW,U/S 0.5

28133COVER, BEARING(FOR END FRAME)

main28132-40010iF..FA100,11#,FB100,FC100196903-198207

12V 1.0KW

28136PLATE, STARTER LOCK

main28136-40010iF..FA100,11#,FB100,FC100196903-198207

12V 1.0KW

28138RUBBER(FOR STARTER BEARING COVER)

main28138-40010iF..FA100,11#,FB100,FC100196903-198207

12V 1.0KW

sub28138-26030

28140HOLDER ASSY, STARTER BRUSH

main28140-41020iF..FA100,11#,FB100,FC100196907-198207

12V 1.0KW

main28140-50011iF..FA100,11#,FB100,FC100196903-196907

12V 1.0KW

main28140-77090i2D..DA11#197704-200112

24V 4.5KW

28142BRUSH, STARTER

main28142-10011×4iF..FA100,11#,FB100,FC100196907-197906

12V 1.0KW

main28142-25011×4iF..FA100,115197906-198207

12V 1.0KW

main28142-77040×4i2D..DA11#,DB10#196903-197704

24V 4.5KW

main28148-50010×4iF..FA100,11#,FB100,FC100196903-196907

12V 1.0KW

28143SPRING, STARTER BRUSH

main28143-40010×4iF..FA100,11#,FB100,FC100196903-198207

12V 1.0KW

sub28143-40040

main28143-77040×4i2D..DA11#,DB10#196903-197704

24V 4.5KW

28150SWITCH ASSY, MAGNET STARTER

main28150-21011iF..FA100,11#,FB100,FC100196903-196907

12V 1.0KW

main28150-41011iF..FA100,11#,FB100,FC100196907-197808

12V 1.0KW

sub28150-33020

main28150-60040iF..FA100,115197808-198207

12V 1.0KW

main28150-66010i2D..DA11#,DB10#197101-197401

24V 4.5KW

main28150-66011i2D..DA11#,DB10#197401-197506

24V 4.5KW

main28150-77040i2D..DA11#,DB10#196903-197101

24V 4.5KW

main28150-77060i2D..DA11#,DB105197506-197704

24V 4.5KW

main28150-77090i2D..DA11#197704-200112

24V 4.5KW

28160ARMATURE ASSY, STARTER

main28160-41020iF..FA100,11#,FB100,FC100196907-198207

12V 1.0KW

main28160-47010i2D..DA11#,DB10#197101-197106

24V 4.5KW

sub28160-47011

main28160-50012iF..FA100,11#,FB100,FC100196903-196907

12V 1.0KW

sub28160-50011

main28160-77040i2D..DA11#,DB10#196903-197101

24V 4.5KW

main28160-77041i2D..DA11#,DB10#197106-197401

24V 4.5KW

main28160-77042i2D..DA11#,DB10#197401-197704

24V 4.5KW

main28160-77090i2D..DA11#197704-200112

24V 4.5KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011iF..FA100,11#,FB100,FC100196903-198207

12V 1.0KW

main28163-47011i2D..DA11#,DB10#197101-197704

24V 4.5KW

main28163-77040i2D..DA11#,DB10#196903-197101

24V 4.5KW

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047iF..FA100,11#,FB100,FC100196903-198207

12V 1.0KW

main90099-07096i2D..DA11#,DB10#197101-197704

24V 4.5KW

28166BUSH, STARTER INSULATION

main28166-40010iF..FA100,11#,FB100,FC100196903-196907

12V 1.0KW

9009220604

main90092-20604

9009220801

main90092-20801

9009331202

main90093-31202

9009400801

main90094-00801

9009900102

main90099-00102

9009900112

main90099-00112

9009901098

main90099-01098

9009901140

main90099-01140

9009901185

main90099-01185

9009902092

main90099-02092

9009904241

main90099-04241

9011610021

main90116-10021

9121241232

main91212-41232

9321914008

main93219-14008

9411041200

main94110-41200

9451100400

main94511-00400

9451100600

main94511-00600

9451201200

main94512-01200

41 parts on this diagram · 6 diagrams in section
