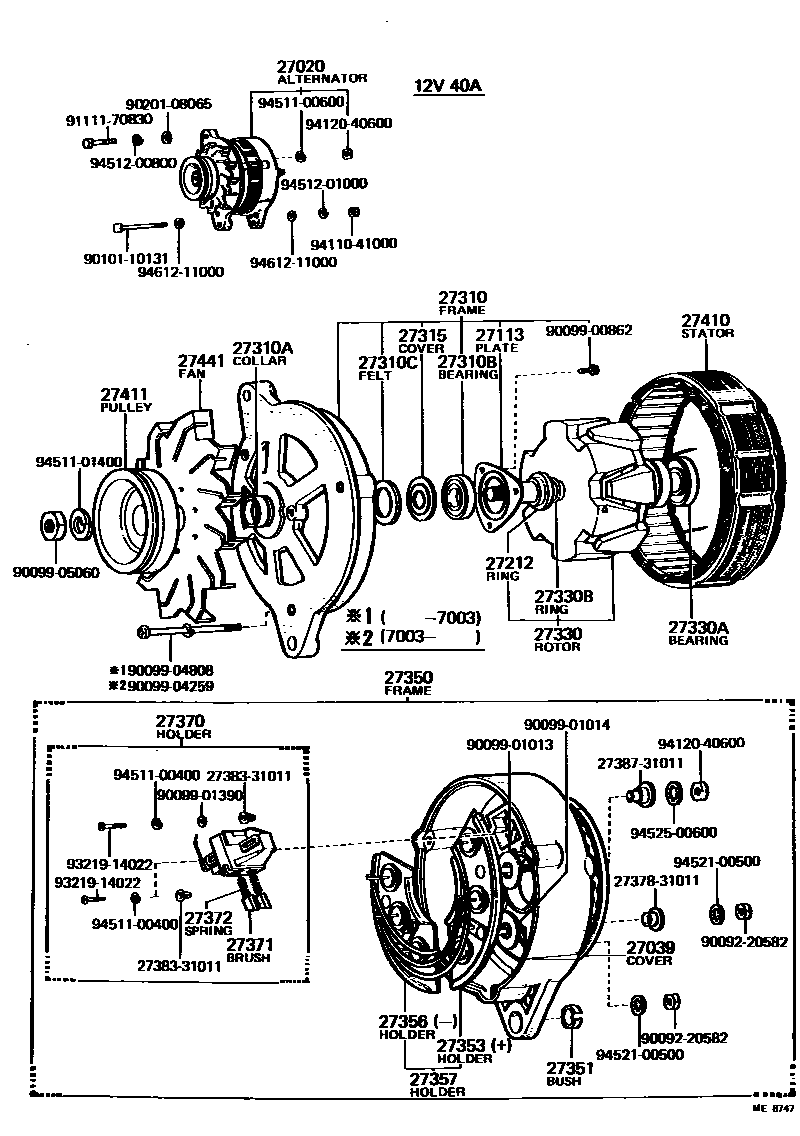

ALTERNATOR

0001 1 0002 1 0004 1 0005 1 0006 124V 15A,W/VACUUM PUMP 0007 124V 15A,W/VACUUM PUMP 0008 1 0009 124V 15A,W/O VACUUM PUMP 0010 124V 15A,W/O VACUUM PUMP

27020ALTERNATOR ASSY

main27020-60032iF..FA100,11#,FC100196903-197101

12V 40A

main27020-60033iF..FA100,11#,FC100197101-197403

12V 40A

main27020-60040iF..FB100196903-197105

12V 55A

main27020-60080iF..FA100,115197404-198207

12V 40A

main27020-77020i2D..DA11#,DB10#196903-197103

24V 15A

main27020-77021i2D..DA11#,DB10#197103-197207

24V 15A

main27020-77022i2D..DA11#,DB10#197207-197304

24V 15A

main27020-77023i2D..DA11#,DB10#197304-197702

24V 15A

main27020-77050i2D..DB105197507-197703

24V 40A

main27020-77060i2D..DA11#..1SR197704-199804

24V 15A,24V 15A,W/O VACUUM PUMP

main27020-77070i2D..DA11#,DB105197702-199804

24V 15A,24V 15A,W/VACUUM PUMP

main27020-77080i2D..DA11#..1SR199804-200112

24V 15A,W/O VACUUM PUMP

main27020-77090i2D..DA11#199804-200112

24V 15A,W/VACUUM PUMP

27039COVER, ALTERNATOR REAR END

main27039-33011iF..FA11#,FC100197101-197403

12V 40A

main27039-46030i2D..DA11#,DB10#197103-197207

24V 15A

main27039-56010iF,2D..DA11#,DB105,FA100,115197404-197507

12V 40A,24V 15A

main27039-56040i2D..DA11#..1SR199804-200112

24V 15A,W/O VACUUM PUMP

main27041-56041i2D..DA11#..1SR197704-199804

24V 15A,FR,W/O VACUUM PUMP

27113PLATE, BEARING RETAINER, ALTERNATOR

main27113-20010iF..FB100196903-197105

12V 55A

main27312-31011iF..FA100,11#,FC100196903-197403

12V 40A

main27312-46030i2D..DA11#,DB10#196903-197207

24V 15A

main27312-56011iF,2D..DA11#,DB105,FA100,115197404-199804

12V 40A,24V 15A

main27312-56070i2D..DA11#199804-200112

24V 15A

main27312-77040i2D..DB105197507-197703

24V 40A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050iF..FA100,11#,FC100196903-197403

12V 40A

main27212-54040i2D..DA11#199804-200112

24V 15A

main27212-56010i2D..DA11#,DB10#197207-197403

24V 15A

main90099-01083iF..FB100196903-197105

12V 55A

main90099-19206i2D..DA11#,DB10#196903-197207

24V 15A

main90099-19242i2D..DB105197507-197703

24V 40A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-31011iF..FA100,11#,FC100196903-198207

12V 40A

main27310-40041iF..FB100196903-197105

12V 55A

main27310-46030i2D..DA11#,DB10#196903-197207

24V 15A

main27310-46032i2D..DA11#,DB10#197207-199804

24V 15A

main27310-77040i2D..DB105197507-197703

24V 40A

main27310-77080i2D..DA11#199804-200112

24V 15A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27314-46030i2D..DA11#,DB10#196903-197207

24V 15A

main27314-56010iF,2D..DA11#,DB105,FA100,115197404-199804

12V 40A,24V 15A

main90099-05123i2D..DB105197507-197703

24V 40A

main90099-19032iF..FB100196903-197105

12V 55A

main90099-19075iF..FA100,11#,FC100196903-197006

12V 40A

main90099-19203iF..FA100,11#,FC100197006-197403

12V 40A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10013iF..FA100,11#,FB100,FC100196903-197403

12V 40A,55A

main90099-10082i2D..DA11#,DB10#197207-197403

24V 15A

main90099-10105i2D..DB105197507-197703

24V 40A

main90099-10188i2D..DA11#199804-200112

24V 15A

main97100-06304i2D..DA11#,DB10#196903-197207

24V 15A

27310CFELT(FOR ALTERNATOR DRIVE END FRAME)

main90099-02004iF..FA100,11#,FB100,FC100196903-197403

12V 40A,55A

main90099-02012i2D..DB105197507-197703

24V 40A

main90099-02014×2i2D..DA11#,DB10#196903-197207

24V 15A

27315COVER, ALTERNATOR FELT, INNER NO.1

main27115-39050iF..FB100196903-197105

12V 55A

main27313-31011iF..FA100,11#,FC100196903-197403

12V 40A

main27315-46030i2D..DA11#,DB10#196903-197207

24V 15A

main27315-56070i2D..DA11#199804-200112

24V 15A

main27315-77040i2D..DB105197507-197703

24V 40A

27330ROTOR ASSY, ALTERNATOR

main27330-33010iF..FA100,11#,FC100196903-197403

12V 40A

main27330-56010i2D..DA11#,DB10#197207-197702

24V 15A

main27330-56040i2D..DA11#..1SR197704-199804

24V 15A,W/O VACUUM PUMP

main27330-60010iF..FB100196903-197105

12V 55A

main27330-60080iF..FA100,115197404-198207

12V 40A

main27330-77020i2D..DA11#,DB10#196903-197207

24V 15A

main27330-77040i2D..DB105197507-197703

24V 40A

main27330-77070i2D..DA11#,DB105197702-199804

24V 15A,W/VACUUM PUMP

main27330-77080i2D..DA11#..1SR199804-200112

24V 15A,W/O VACUUM PUMP

main27330-77090i2D..DA11#199804-200112

24V 15A,W/VACUUM PUMP

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10012iF..FB100196903-197105

12V 55A

main90099-10015i2D..DA11#..1SR197704-199804

24V 15A,W/O VACUUM PUMP

main90099-10141i2D..DA11#..1SR199804-200112

24V 15A,W/O VACUUM PUMP

main97113-06201iF..FA100,11#,FC100196903-197403

12V 40A

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07048iF..FA100,11#,FC100196903-197403

12V 40A

main90099-07103i2D..DA11#,DB10#197207-197403

24V 15A

main90099-07108i2D..DA11#199804-200112

24V 15A

27350FRAME ASSY, RECTIFIER END

main27350-33010iF..FA100,11#,FC100196903-197006

12V 40A

main27350-33011iF..FA100,11#,FC100197006-197101

12V 40A

main27350-33012iF..FA100,11#,FC100197101-197403

12V 40A

main27350-46040i2D..DA11#,DB10#196903-197207

24V 15A

main27350-47042i2D..DA11#..1SR197704-199804

24V 15A,W/O VACUUM PUMP

main27350-60041iF..FB100196903-197105

12V 55A

main27350-77022i2D..DA11#,DB10#197304-197403

24V 15A

main27350-77023iF,2D..DA11#,DB105,FA100,115197507-197702

12V 40A,24V 15A

main27350-77030i2D..DA11#,DB10#197207-197304

24V 15A

main27350-77040i2D..DB105197507-197703

24V 40A

main27350-77080i2D..DA11#199804-200112

24V 15A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-30010iF..FA100,11#,FC100196903-197403

12V 40A

main27351-46030i2D..DA11#,DB10#196903-197304

24V 15A

main27351-56012iF,2D..DA11#,DB105,FA100,115197404-199804

12V 40A,24V 15A

main27351-56013i2D..DA11#199804-200112

24V 15A

main27351-60012iF..FB100196903-197105

12V 55A

main27351-77040i2D..DB105197507-197703

24V 40A

27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR

main27353-31012iF..FA100,11#,FC100196903-197403

12V 40A

main27353-46030i2D..DA11#,DB10#196903-197207

24V 15A

main27353-56011i2D..DA11#,DB10#197207-199804

24V 15A

main27353-60040iF..FB100196903-197105

12V 55A

main27353-60080iF..FA100,115197404-198207

12V 40A

main27353-77040i2D..DB105197507-197703

24V 40A

27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR

main27356-31012iF..FA100,11#,FC100196903-197403

12V 40A

main27356-46030i2D..DA11#,DB10#196903-197207

24V 15A

main27356-56010i2D..DA11#,DB10#197207-199804

24V 15A

main27356-60080iF..FA100,115197404-198207

12V 40A

main27356-77040i2D..DB105197507-197703

24V 40A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-31012iF..FA100,11#,FC100196903-197403

12V 40A

main27357-54190i2D..DA11#199804-200112

24V 15A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31012iF..FA100,11#,FC100196903-197403

12V 40A

main27370-56010i2D..DA11#,DB10#197207-197702

24V 15A

main27370-60080iF..FA100,115197404-197702

12V 40A

main27370-77040i2D..DB105197507-197703

24V 40A

main27370-77080i2D..DA11#199804-200112

27371BRUSH, ALTERNATOR

main27371-31011×2iF..FA100,11#,FC100196903-197207

12V 40A

main27371-46030×2i2D..DA11#,DB10#196903-197207

24V 15A,BLACK

main27371-50020×2iF..FB100196903-197105

12V 55A,BLACK

main27371-54412×2i2D..DA11#199804-200112

24V 15A

main27377-31010×2iF..FB100196903-197105

12V 55A,RED

main27377-46030×2i2D..DA11#,DB10#196903-197207

24V 15A,RED

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2iF..FA100,11#,FC100196903-197207

12V 40A

main27372-40010×2iF..FB100196903-197105

12V 55A

main27372-46030×2i2D..DA11#,DB10#196903-197207

24V 15A

main27372-56070×2i2D..DA11#199804-200112

24V 15A

27410STATOR ASSY, ALTERNATOR

main27410-33010iF..FA100,11#,FC100196903-197403

12V 40A

main27410-46031iF..FA100,115197404-198207

12V 40A

main27410-46040i2D..DA11#,DB10#196903-197207

24V 15A

main27410-56010i2D..DA11#,DB10#197207-199804

24V 15A

main27410-60040iF..FB100196903-197105

12V 55A

main27410-77040i2D..DB105197507-197703

24V 40A

main27410-77080i2D..DA11#199804-200112

24V 15A

27411PULLEY, ALTERNATOR

main27411-60010iF..FB100196903-197105

12V 55A

main27411-60032iF..FA100,11#,FC100196903-197403

12V 40A

main27411-60080iF..FA100,115197404-198207

12V 40A

main27411-77020i2D..DA11#,DB10#196903-197207

24V 15A

main27411-77030i2D..DA11#,DB10#197207-199804

24V 15A

main27411-77050i2D..DB105197507-197703

24V 40A

main27411-77080i2D..DA11#199804-200112

24V 15A

27441FAN, ALTERNATOR

main27441-31011iF..FA100,11#,FC100196903-197403

12V 40A

main27441-46030i2D..DA11#,DB10#196903-197403

24V 15A

main27441-46031i2D..DA11#,DB105197507-199804

12V 40A,24V 15A

main27441-54040i2D..DA11#199804-200112

24V 15A

main27441-60010iF..FB100196903-197105

12V 55A

main27441-77010i2D..DB105197507-197703

24V 40A

2737831011INSULATOR, ALTERNATOR, NO.1

main27378-31011

2738331011WASHER, ALTERNATER TERMINAL INSULATOR, NO.1

main27383-31011

2738731011INSULATOR, TERMINAL

main27387-31011

9009220582

main90092-20582

9009900862

main90099-00862

9009901013

main90099-01013

9009901014

main90099-01014

9009901390

main90099-01390

9009904259

main90099-04259

9009904808

main90099-04808

9009905060

main90099-05060

9010110131

main90101-10131

9020108065

main90201-08065

9111170830

main91111-70830

9321914022

main93219-14022

9411041000

main94110-41000

9412040600

main94120-40600

9451100400

main94511-00400

9451100600

main94511-00600

9451101400

main94511-01400

9451200800

main94512-00800

9451201000

main94512-01000

9452100500

main94521-00500

9452500600

main94525-00600

9461211000

main94612-11000

48 parts on this diagram · 9 diagrams in section
