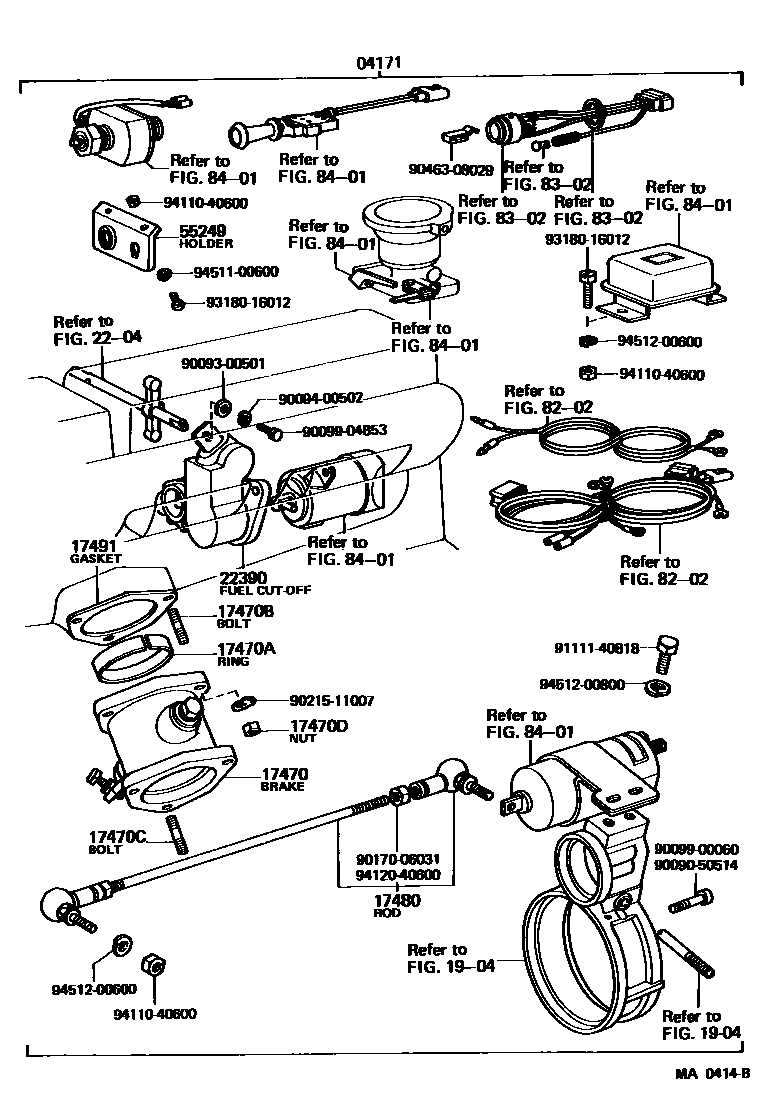

EXHAUST BRAKE

0001 1 0002 1 0003 1 0004 1

04171EXHAUST BRAKE KIT

main04171-76011i2D..DA11#..RHD196903-197403

main04171-76041i2D..DA11#..LHD196903-197403

17470BRAKE ASSY, EXHAUST

main17470-76010i2D..DA11#,DB10#196903-197704

main46710-55010i2D..DA11#197704-200112

17470ARING, SET(FOR EXHAUST BRAKE)

main90522-64010i2D..DA11#,DB10#196903-200112

17470BBOLT, STUD(FOR EXHAUST BRAKE TO MANIFOLD)

main90116-10123×3i2D..DA11#,DB10#196903-197704

17470CBOLT, STUD(FOR EXHAUST BRAKE TO EXHAUST PIPE)

main90116-10029×3i2D..DA11#,DB10#196903-197807

main90116-10123×3i2D..DA11#197807-200112

17470DNUT(FOR EXHAUST BRAKE TO EXHAUST PIPE BOLT)

main90179-10118×3i2D..DA11#,DB10#196903-200112

17480ROD SUB-ASSY, EXHAUST BRAKE

main17480-76010i2D..DA11#,DB10#196903-197704

main46730-55010i2D..DA11#197704-200112

17491GASKET, EXHAUST BRAKE

main17491-76010i2D..DA11#,DB10#196903-200112

1904STARTER

→ Go to FIG 19-04

2204PNEUMATIC GOVERNOR

→ Go to FIG 22-04

22390FUEL CUT OFF ASSY, ENGINE EXHAUST BRAKE

main22390-77091i2D..DA11#,DB10#196903-197704

55249HOLDER, EXHAUST BRAKE

main55349-95210iDA11#196903-197403

8202WIRING & CLAMP

→ Go to FIG 82-02

8302INDICATOR

→ Go to FIG 83-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9009050514

main90090-50514

9009300501

main90093-00501

9009400502

main90094-00502

9009900060

main90099-00060

9009904853

main90099-04853

9017006031

main90170-06031

9021511007

main90215-11007

9046308029

main90463-08029

9111140818

main91111-40818

9318016012

main93180-16012

9411040600

main94110-40600

9412040600

main94120-40600

9451100600

main94511-00600

9451200600

main94512-00600

9451200800

main94512-00800

30 parts on this diagram · 4 diagrams in section
