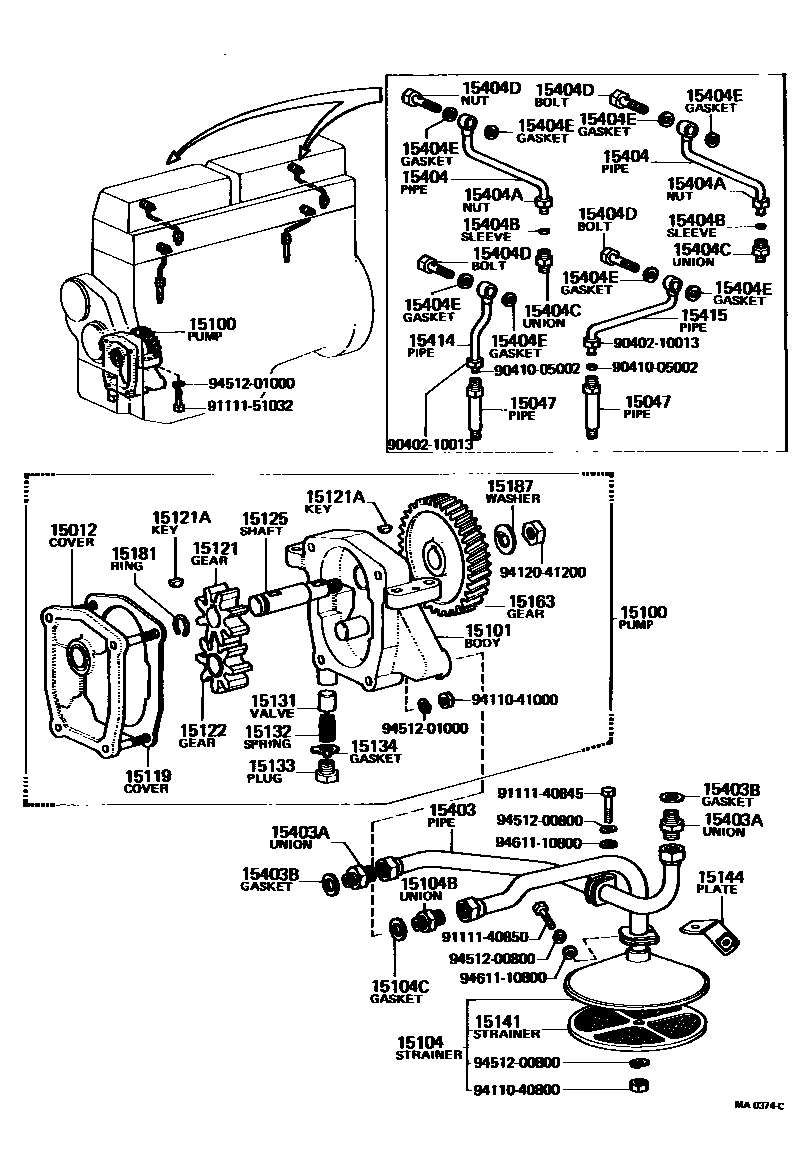

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

15012COVER SUB-ASSY, OIL PUMP

main15012-60013iF..FA100,11#,FC100197309-197606

main15012-60014iF..FA100,115197606-198207

main15012-76030i2D..DA11#,DB10#196903-200112

15047PIPE SUB-ASSY, OIL DELIVERY MAIN

main15047-76010×2i2D..DA11#,DB10#196903-196906

main15457-76011×2i2D..DA11#,DB10#196906-197704

15100PUMP ASSY, OIL

main15100-60012iF..FA100,11#,FB100,FC100196903-197309

main15100-60013iF..FA100,11#,FC100197309-197606

main15100-60014iF..FA100,115197606-197612

main15100-61010iF..FA100,115197612-198207

main15100-76030i2D..DA11#,DB10#196903-196908

main15100-76031i2D..DA11#,DB10#196908-197704

main15100-77010i2D..DA11#197704-200112

15101BODY SUB-ASSY, OIL PUMP

main15101-76030i2D..DA11#,DB10#196903-197403

main15101-76031i2D..DA11#,DB105197404-197704

main15101-77010i2D..DA11#197704-200112

15104STRAINER SUB-ASSY, OIL

main15104-60010iF..FA100,11#,FB100,FC100196903-197606

main15104-76011i2D..DA11#,DB10#196903-197704

main15104-77030i2D..DA11#197704-200112

15104BUNION(FOR OIL STRAINER)

main90401-24068i2D..DA11#197704-200112

main90404-34133i2D..DA11#,DB10#196903-196908

main90404-34186i2D..DA11#,DB10#196908-197704

15104CGASKET(FOR OIL STRAINER)

main90430-24096i2D..DA11#,DB10#196903-200112

15119GASKET, OIL PUMP COVER

main15119-76030i2D..DA11#,DB10#196903-200112

15121GEAR, OIL PUMP DRIVE

main15121-60011iF..FA100,11#,FB100,FC100196903-197309

N=7

main15121-76030i2D..DA11#,DB10#196903-200112

main15121-88111iF..FA100,11#,FC100197309-198207

N=7

15121AKEY, OIL PUMP DRIVE SHAFT

main15186-77010×2i2D..DA11#197712-197804

main90280-03009iF..FA100,11#,FB100,FC100196903-198207

main90280-04007×2i2D..DA11#,DB10#196903-197712

15122GEAR, OIL PUMP DRIVEN

main15122-60010iF..FA100,11#,FB100,FC100196903-197309

N=7

main15122-76030i2D..DA11#,DB10#196903-197704

main15122-77010i2D..DA11#197704-200112

main15122-79410iF..FA100,11#,FC100197309-198207

N=7

15125SHAFT, OIL PUMP

main15125-60012iF..FA100,11#,FB100,FC100196903-197309

main15125-60013iF..FA100,11#,FC100197309-198207

main15125-76030i2D..DA11#,DB10#196903-197403

main15125-76031i2D..DA11#,DB105197404-197804

15131VALVE, OIL PUMP RELIEF

main15131-24010i2D..DA11#; F..FA100,115197704-200112

main15131-40010i2D..DA11#,DB10#196903-197704

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010iF..FA100,11#,FC100197309-198207

main15132-76011i2D..DA11#,DB10#196903-200112

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i2D..DA11#,DB10#196903-197704

main15133-24010iF..FA100,11#,FC100197309-198207

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010iF..FA100,11#,FC100197309-197606

main15134-76010i2D..DA11#,DB10#196903-197704

15141STRAINER, OIL

main15141-76010i2D..DA11#,DB10#196903-197704

main15141-77020i2D..DA11#197704-200112

15144PLATE, OIL FILTER SUPPORTING

main15144-76021i2D..DA11#,DB10#196903-197704

main15144-77040i2D..DA11#197704-200112

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-76030i2D..DA11#,DB10#196903-200112

15181RING, OIL PUMP SHAFT SNAP

main15181-76030i2D..DA11#,DB10#196903-197804

15187WASHER, CLAW(FOR OIL PUMP DRIVE SHAFT GEAR)

main15187-76030i2D..DA11#,DB10#196903-200112

15403PIPE SUB-ASSY, OIL PUMP OUTLET

main15403-76030i2D..DA11#,DB10#196903-197704

main15403-77020i2D..DA11#197704-200112

15403AUNION(FOR OIL PUMP OUTLET PIPE)

main90401-18003×2i2D..DA11#197704-200112

main90404-28131×2i2D..DA11#,DB10#196903-197704

15403BGASKET(FOR OIL PUMP OUTLET PIPE)

main90430-18002×4i2D..DA11#197801-200112

main90430-18012×4i2D..DA11#197704-197801

main90430-18166×4i2D..DA11#,DB10#196903-197704

15404PIPE SUB-ASSY, VALVE ROCKER SHAFT OIL

main15042-76021×2i2D..DA11#,DB10#196903-197704

W/DECOMPRESSION

main15042-76030×2i2D..DA11#,DB10#196903-197704

main15042-77010×2i2D..DA11#197704-200112

main15404-60010iF..FA100,11#,FB100,FC100196903-197206

main15404-60020iF..FA100,11#,FC100197206-197309

15404ANUT, VALVE ROCKER SHAFT OIL PIPE UNION

main90402-10013×2iF..FA100,11#,FB100,FC100196903-197309

15404BSLEEVE, VALVE ROCKER SHAFT OIL PIPE BALL

main90410-05002×2iF..FA100,11#,FB100,FC100196903-197309

15404CUNION, VALVE ROCKER SHAFT OIL PIPE

main90401-08001×6i2D..DA11#197704-200112

main90404-10005×2i2D..DA11#,DB10#196903-197704

main90404-10026iF..FA100,11#,FB100,FC100196903-197309

15404DVALVE, ROCKER SHAFT OIL PIPE UNION

main90401-10010×4i2D..DA11#,DB10#196903-197112

main90401-10082×4i2D..DA11#,DB10#197112-197704

main90405-10102iF..FA100,11#,FB100,FC100196903-197309

15404EGASKET, VALVE ROCKER SHAFT OIL PIPE UNION

main90202-03018iF..FA100,11#,FB100,FC100196903-197309

main90430-10034×8i2D..DA11#,DB10#196903-197704

15414PIPE, ROCKER SHAFT OIL DELIVERY, NO.1

main15404-76010i2D..DA11#,DB10#196903-197704

15415PIPE, ROCKER SHAFT OIL DELIVERY, NO.2

main15405-76020i2D..DA11#,DB10#196903-197704

9040210013

main90402-10013

9041005002

main90410-05002

9111140845

main91111-40845

9111140850

main91111-40850

9111151032

main91111-51032

9411040800

main94110-40800

9411041000

main94110-41000

9412041200

main94120-41200

9451200800

main94512-00800

9451201000

main94512-01000

9461110800

main94611-10800

43 parts on this diagram · 5 diagrams in section
