CAMSHAFT & VALVE

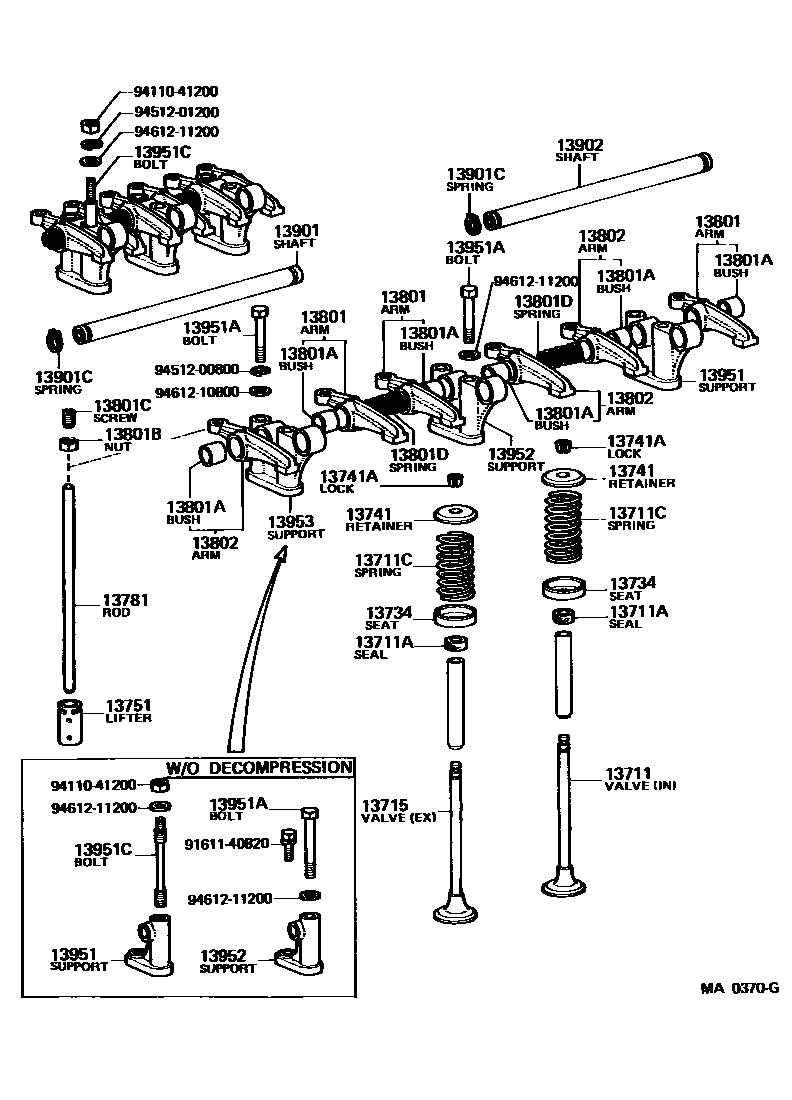

Parts diagram
13711VALVE, INTAKE
main13711-60020i196903-197306
sub13711-60021
sub90913-03012
main13711-60021i197306-198207
main13711-76012i196903-197508
sub13711-76013
main13711-76013i197508-197704
main13711-77010i197704-198104
main13711-77011i198104-200112
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
main90913-02002i196903-197010
sub90913-02017
main90913-02008i197606-197704
EXHAUST
main90913-02008i196903-197606
main90913-02017i197010-197608
main90913-02027i197704-200112
main90913-02027i197606-197704
INTAKE
main90913-02030i197608-197810
sub90913-02033
main90913-02033i197810-198008
main90913-02048i198008-198207
13711CSPRING, COMPRESSION(FOR OUTER)
main90501-45117i196903-197704
sub90501-47002
main90501-47002i197704-198104
main90501-47004i198104-200112
13715VALVE, EXHAUST
main13715-60031i196903-197306
sub13715-60032
sub90913-03012
main13715-60032i197306-198207
sub13715-61030
main13715-61010i197608-197704
LOW-OCTANE SPEC
main13715-76012i196903-197508
sub13715-76013
main13715-76013i197508-197606
sub13715-76014
main13715-76014i197606-197704
main13715-77010i197704-198104
main13715-77011i198104-200112
13734SEAT, VALVE SPRING
main13734-60030i196903-198207
main13734-76010i196903-197704
sub13734-77010
main13734-77010i197704-198104
main13734-77011i198104-200112
13741RETAINER, VALVE SPRING
main13741-60030i196903-198207
main13741-76010i196903-198104
main13741-77010i198104-200112
13741ALOCK, VALVE SPRING RETAINER
main90913-03005i196903-197306
main90913-03006i196903-197704
sub90913-03015
main90913-03012i197306-198207
main90913-03015i197704-198104
main90913-03020i198104-200112
13751LIFTER, VALVE
main13751-60021i196903-197608
STD
sub13751-61010
main13751-61010i197608-198207
STD
main13751-76010i196903-198104
STD
main13751-77010i198104-200112
STD,STD
main13755-60021i196903-197608
O/S 0.05
sub13755-61010
main13755-61010i197608-198207
O/S 0.05
main13755-76010i196903-198104
O/S 0.100
main13755-77010i198104-200112
O/S 0.050
main13757-76010i196903-198104
O/S 0.075
13781ROD, VALVE PUSH
main13781-60020i196903-197904
sub13781-61010
main13781-61010i197904-198207
main13781-76010i196903-197704
sub13781-77010
main13781-77010i197704-200112
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
main13801-60020i196903-196908
sub13801-60021
sub90170-12131
sub90913-05012
main13801-60021i196908-197904
sub13801-61H00
main13801-61010i197904-198008
main13801-76021i196903-198104
W/DECOMPRESSION
sub13801-77020
main13801-76030i196903-198104
sub13801-77010
main13801-77010i198104-200112
sub13801-77020
main13801-77020i198104-200112
W/DECOMPRESSION
main13811-61021i198008-198207
sub13811-61H00
13801ABUSH, BIMETAL FORMED(FOR ROCKER ARM)
main90999-70012i196903-198104
main90999-73043i196903-198008
main90999-73090i198104-200112
13801BNUT, HEXAGON(FOR VALVE ADJUSTING)
main90170-10014i198008-198207
main90170-10074i197904-198008
main90170-12037i196903-200112
main90170-12041i196903-196908
main90170-12131i196908-197904
sub90170-12009
13801CSCREW, VALVE ADJUSTING
main90913-05001i196903-196908
main90913-05006i196903-200112
main90913-05007i197904-198207
main90913-05012i196908-197904
13801DSPRING, COMPRESSION(FOR ROCKER ARM)
main90501-16163i196903-198207
main90501-20103i196903-200112
13802ARM SUB-ASSY, VALVE ROCKER, NO.2
main13802-60020i196903-196908
sub13802-60021
sub90170-12131
sub90913-05012
main13802-60021i196908-197904
sub13802-61H00
main13802-61010i197904-198008
main13802-76021i196903-198104
W/DECOMPRESSION
sub13802-77020
main13802-76030i196903-198104
sub13802-77010
main13802-77010i198104-200112
sub13802-77020
main13802-77020i198104-200112
W/DECOMPRESSION
main13812-61021i198008-198207
sub13812-61H00
13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1
main13901-60021i196903-197309
main13901-60022i197309-198008
main13901-61011i198008-198207
sub13901-61020
main13901-76010i196903-197704
main13901-76020i196903-197704
W/DECOMPRESSION
main13901-77010i197704-198104
sub13901-77011
main13901-77011i198104-200112
13901CSPRING, RETAINER(FOR VALVE ROCKER SHAFT)
main90520-20048i196903-200112
main90524-15008i196903-198207
13902SHAFT SUB-ASSY, VALVE ROCKER, NO.2
main13901-76010i196903-197704
main13901-76020i196903-197704
W/DECOMPRESSION
main13902-60020i196903-197309
13951SUPPORT, VALVE ROCKER, NO.1
main13951-60020i196903-197904
sub13951-61010
main13951-61010i197904-198008
sub13952-61010
main13951-61012i198008-198207
sub13952-61012
main13951-76021i196903-197704
W/DECOMPRESSION
main13951-76030i196903-197704
main13951-77010i197704-200112
main13951-77020i197704-200112
W/DECOMPRESSION
13951ABOLT(FOR ROCKER SUPPORT SET)
main13959-77010i197704-200112
main90101-08159i196903-197704
W/DECOMPRESSION
main90101-12098i196903-196908
*12-1.5PX100-22
main90101-12316i196908-197704
*12-1.25PX100-22
main90910-01006i196903-198207
13951CBOLT, STUD(FOR ROCKER SUPPORT)
main13994-60010i196903-198008
main13994-61010i198008-198207
main13994-76010i196903-196908
main90116-12197i196908-197704
13952SUPPORT, VALVE ROCKER, NO.2
main13952-60010i197309-197904
sub13952-61010
main13952-61010i197904-198008
main13952-61012i198008-198207
main13952-76021i196903-197704
W/DECOMPRESSION
main13952-76030i196903-197704
main13952-77010i197704-200112
main13952-77020i197704-200112
W/DECOMPRESSION
13953SUPPORT, VALVE ROCKER, NO.3
main13953-76010i196903-197704
W/DECOMPRESSION
main13953-77020i197704-200112
W/DECOMPRESSION
9161140820
main91611-40820
9411041200
main94110-41200
9451200800
main94512-00800
9451201200
main94512-01200
9461210800
main94612-10800
9461211200
main94612-11200

29 parts on this diagram · 6 diagrams in section
