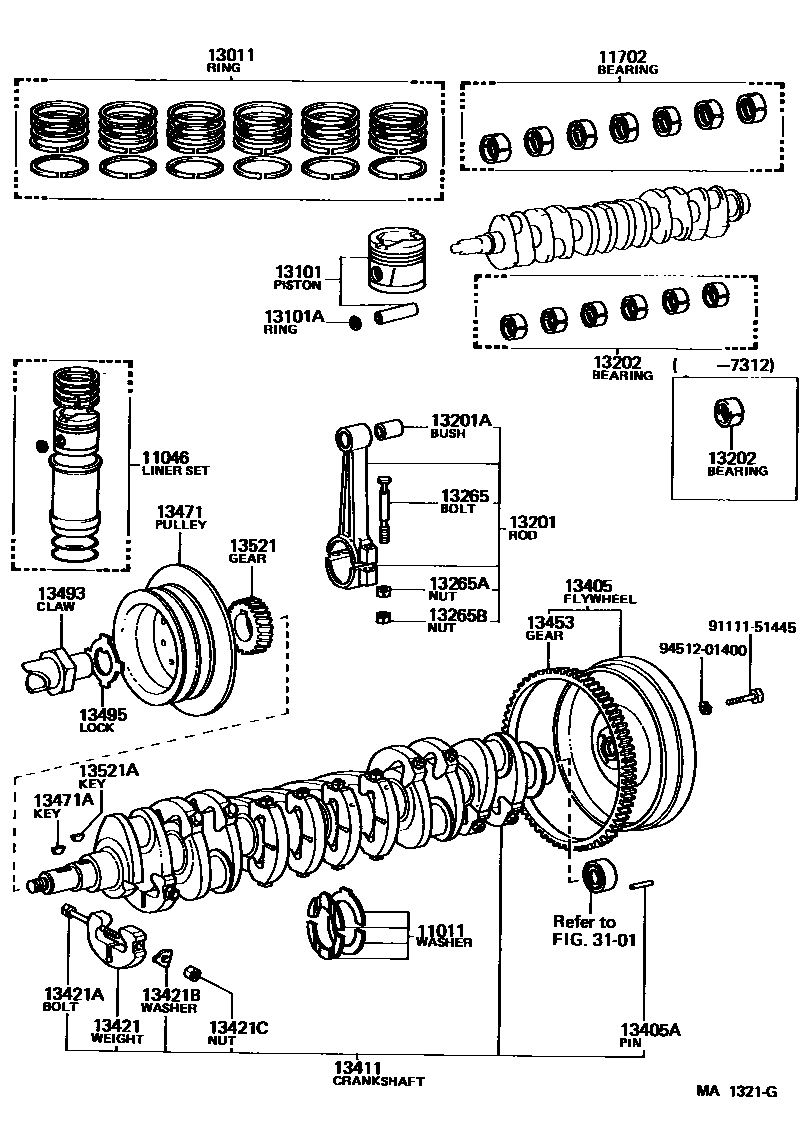

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD,STD
O/S 0.250,O/S 0.25
O/S 0.500,O/S 0.50
11046CYLINDER LINER & PISTON SET
CHROME PLATED
CHROME PLATED
11702BEARING SET, CRANKSHAFT
STD
STD
STD
U/S 0.05
STD,STD
U/S 0.05
U/S 0.05
U/S 0.25
U/S 0.05,U/S 0.05
U/S 0.25
U/S 0.25
U/S 0.50
U/S 0.25,U/S 0.25
U/S 0.50
U/S 0.50
U/S 0.75
U/S 0.50,U/S 0.50
U/S 0.75
U/S 0.75
U/S 1.00
U/S 0.75,U/S 0.75
U/S 1.00
U/S 1.00
U/S 1.00,U/S 1.00
13011RING SET, PISTON
STD
STD
STD,STD
STD,*3PCS
STD
STD
STD
STD,STD
STD,*3PCS
O/S 0.25
O/S 0.25
O/S 0.50
O/S 0.50,O/S 0.50
O/S 0.25,*3PCS
O/S 0.75
O/S 0.50
O/S 1.00
O/S 1.00,O/S 1.00
O/S 0.50,*3PCS
O/S 0.75
O/S 0.75,*3PCS
O/S 1.00
O/S 1.50
O/S 1.50,O/S 1.50
O/S 1.00,*3PCS
O/S 1.25
O/S 1.50
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD
STD,STD
STD 1,BLACK
STD 2,RED/MAROON
STD 3,GRAY
STD 1,BLACK
STD 2,RED/MAROON
STD 3,GRAY
STD 1,BLACK
STD 2,RED/MAROON
STD 3,GRAY
STD 1,BLACK
STD 2,RED/MAROON
STD 3,GRAY
STD,STD 1
STD,MARK 1,MARK1
STD,MARK 2,MARK2
STD,MARK 3,MARK3
O/S 0.25
O/S 0.25
O/S 0.50
O/S 0.50
O/S 0.50,O/S 0.50
O/S 0.50
O/S 0.75
O/S 1.00
O/S 1.00
O/S 1.00,O/S 1.00
O/S 0.75
O/S 1.00
O/S 1.50
O/S 1.50
O/S 1.50,O/S 1.50
O/S 1.25
O/S 1.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
STD,STD
STD
STD,STD
U/S 0.05,U/S 0.05
U/S 0.05
U/S 0.05,U/S 0.05
U/S 0.25,U/S 0.25
U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.50,U/S 0.50
U/S 0.50
U/S 0.50,U/S 0.50
U/S 0.75
U/S 0.75
U/S 0.75,U/S 0.75
U/S 1.00
U/S 1.00
U/S 1.00,U/S 1.00
STD
U/S 0.05
U/S 0.25
U/S 0.50
U/S 0.75
U/S 1.00
13265BOLT, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13265BNUT, STAMPED(FOR CONNECTING ROD BOLT)
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=30,OD=14
13411CRANKSHAFT
13421WEIGHT, BALANCE
13421ABOLT, HEXAGON(FOR CRANKSHAFT BALANCE WEIGHT)
13421BWASHER, BALANCE WEIGHT SET BOLT
13421CNUT, HEXAGON(FOR CRANKSHAFT BALANCE WEIGHT BOLT)
13453GEAR, FLYWHEEL RING
N=136
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13493CLAW, CRANKSHAFT
13495LOCK, CRANKSHAFT PULLEY
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
N=27
N=30
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
3101CLUTCH & RELEASE FORK
9111151445
main91111-51445
9451201400
main94512-01400
