ENGINE OVERHAUL GASKET KIT

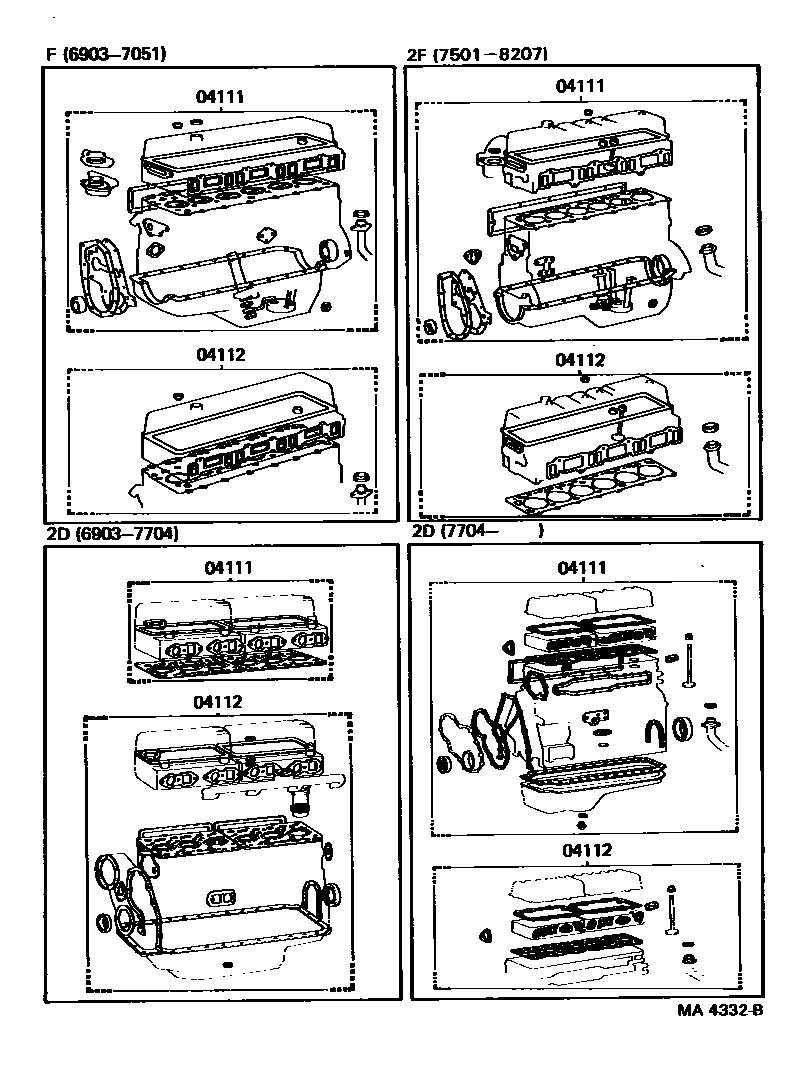

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-60081i196909-197309

main04111-60082i197309-197403

main04111-60090i196903-196909

main04111-61010i197501-197607

main04111-61011i197607-197608

main04111-61012i197608-197712

main04111-61013i197712-198207

main04111-77017i196903-197704

main04111-77020i197704-197806

main04111-77021i197806-200112

04112GASKET KIT, ENGINE VALVE GRIND

main04112-60080i196903-197309

main04112-60081i197309-197501

main04112-61010i197501-197607

main04112-61011i197607-197608

main04112-61012i197608-198207

main04112-77014i196903-197704

main04112-77020i197704-197806

main04112-77021i197806-200112

2 parts on this diagram · 1 diagram in section
