SHORT BLOCK ASSEMBLY

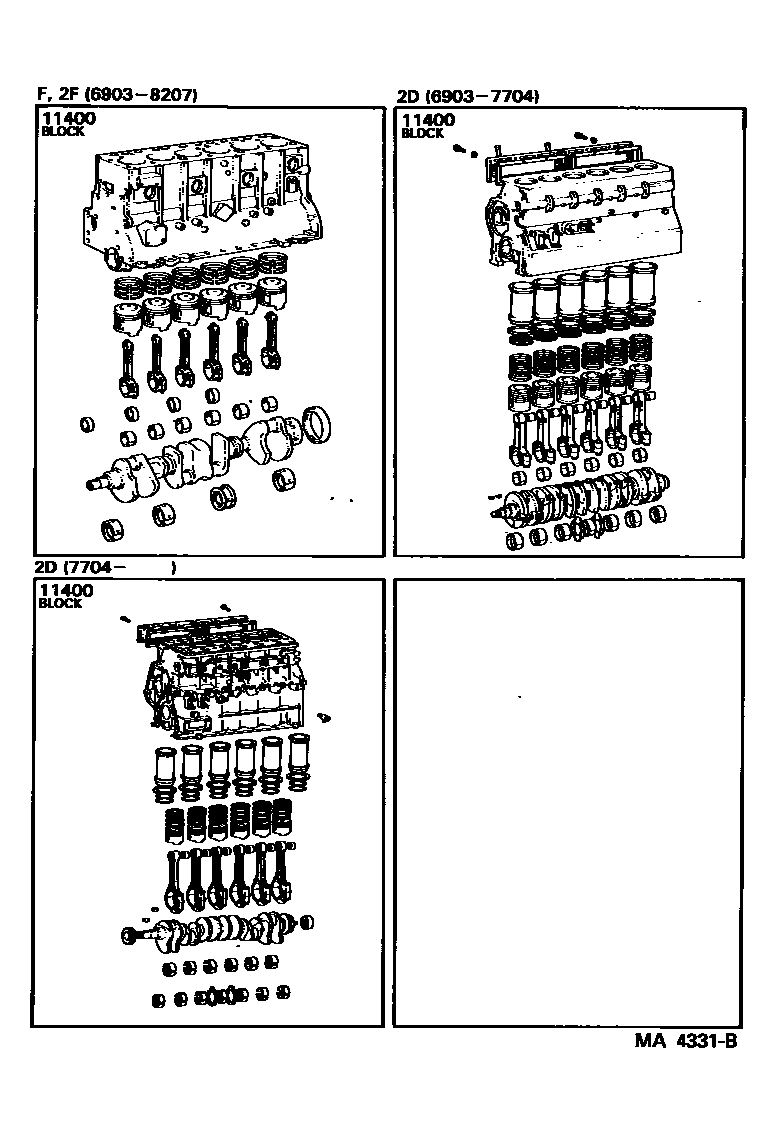

Parts diagram

11400BLOCK ASSY, SHORT

main11400-60012i196903-196906

main11400-60013i196909-197109

main11400-60014i197109-197309

main11400-60015i197309-197501

main11400-61030i197501-197601

main11400-61031i197601-198207

main11400-77011i196903-196906

main11400-77012i196906-197704

main11400-77020i197704-200112

1 parts on this diagram · 1 diagram in section
