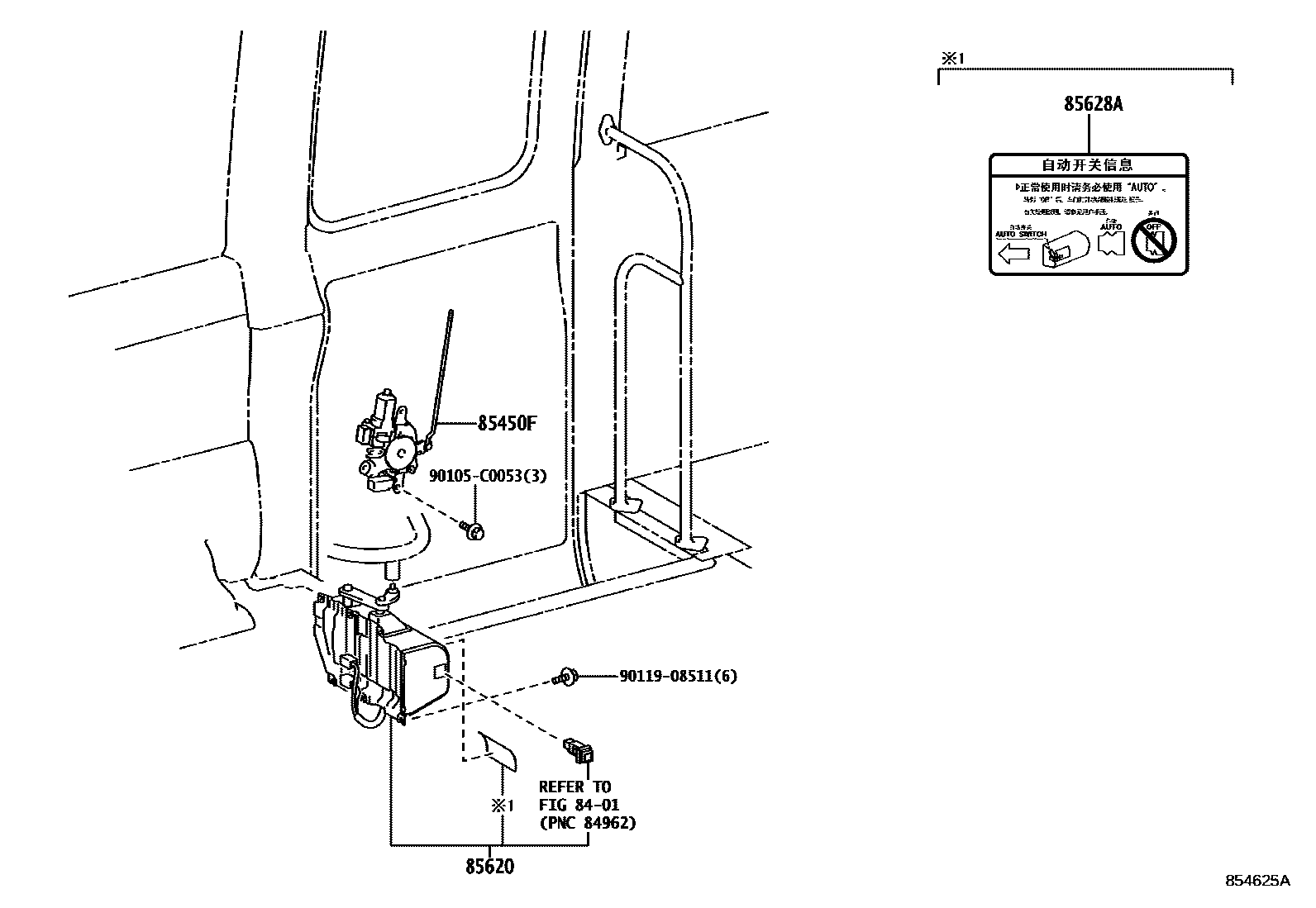

AUTOMATIC DOOR

0001 1GLIDING TYPE 0002 1EMERGENCY CABLE

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85450FMOTOR ASSY, DOOR CONTROL

main85450-36070iKMB53202108

85620MOTOR ASSY, AUTOMATIC DOOR REGULATOR

main85620-36630iKMB53202108

85628ALABEL, AUTOMATIC DOOR, NO.2

main85628-36360iKMB53202108

90105C0053

main90105-C0053

9011908511

main90119-08511

6 parts on this diagram · 2 diagrams in section
