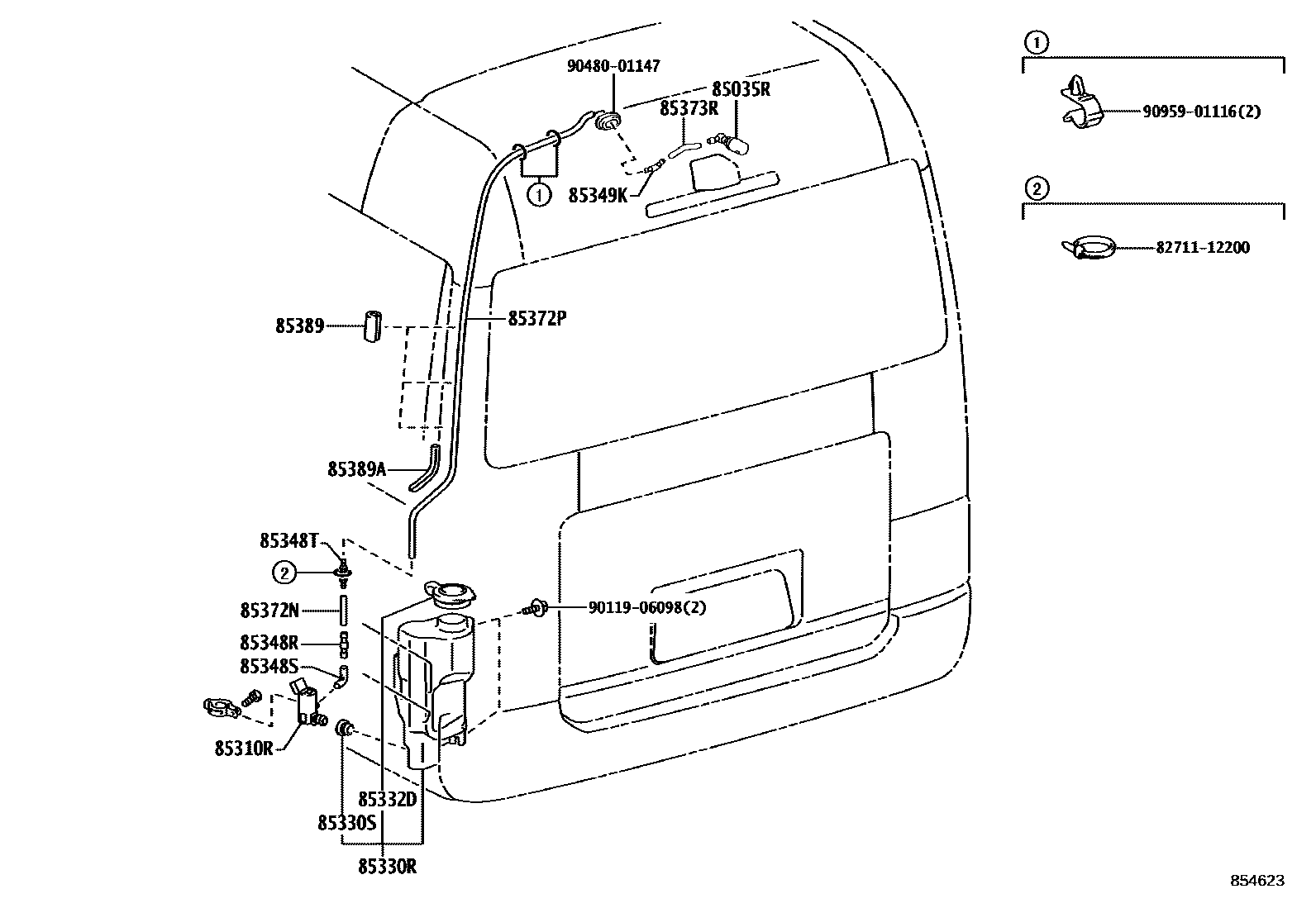

REAR WASHER

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-36020iKMB53..17S202108

85310RMOTOR ASSY, REAR WASHER

main85310-20200iKMB53..17S202108

85330RJAR ASSY, REAR WASHER

main85325-36031iKMB53..17S202108

85330SBUSH, REAR WASHER JAR

main90099-32089iKMB53..17S202108

85332DCAP, REAR WASHER TANK

main85316-35130iKMB53..17S202108

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iKMB53..17S202108

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481iKMB53..17S202108

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-32150iKMB53..17S202108

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iKMB53..17S202108

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-62120iKMB53..17S202108

L=120

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90446-06006iKMB53..17S202108

L=2000(*H,L=1830)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main85395-36010iKMB53..17S202108

85389PACKING, WINDSHIELD WASHER HOSE, NO.1

main85389-36030iKMB53..17S202108

85389APACKING, WINDSHIELD WASHER HOSE, NO.2

main85389-36020iKMB53..17S202108

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9011906098

main90119-06098

9048001147

main90480-01147

9095901116

main90959-01116

18 parts on this diagram · 1 diagram in section
