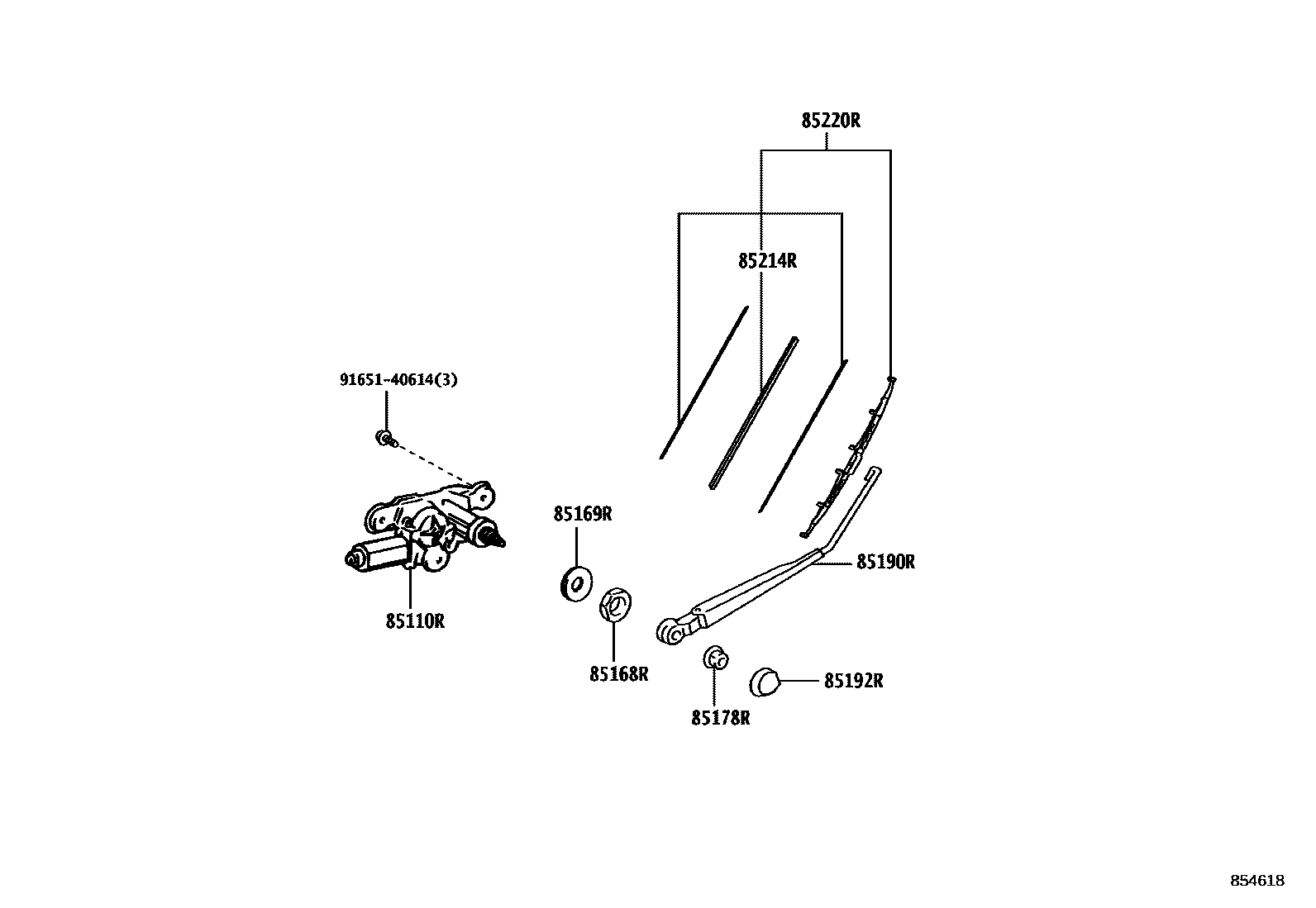

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-36010iKMB53..17S202108

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iKMB53..17S202108

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-16150iKMB53..17S202108

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iKMB53..17S202108

85190RARM ASSY, REAR WIPER

main85241-36011iKMB53..17S202108

85192RCOVER, REAR WIPER ARM

main85292-36010iKMB53..17S202108

85214RRUBBER, REAR WIPER

main85214-10100iKMB53..17S202108

85220RBLADE ASSY, REAR WIPER

main85242-60050iKMB53..17S202108

9165140614

main91651-40614

9 parts on this diagram · 1 diagram in section
