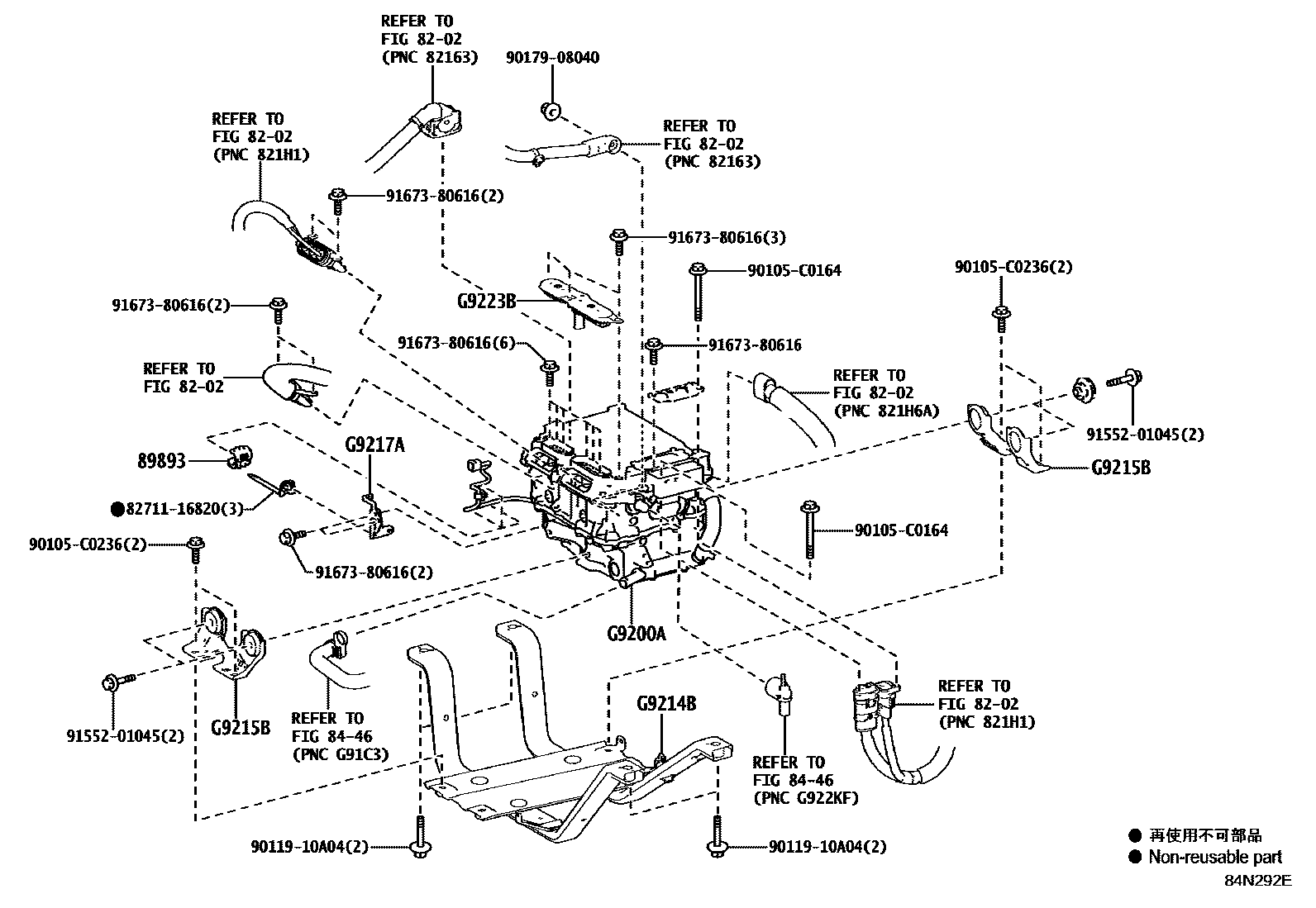

INVERTER(BEV OR FCEV)

8202WIRING & CLAMP

→ Go to FIG 82-02

8446FCEV COOLING

→ Go to FIG 84-46

89893FILTER, BATTERY NOISE

main89893-74010×3iKMB53202108

G9200AINVERTER ASSY, W/CONVERTER

mainG92A036010iKMB53202108

G9214BBRACKET, INVERTER, NO.1

mainG921436010iKMB53202108

G9215BBRACKET, INVERTER, NO.2

mainG921542020×2iKMB53202108

G9217ABRACKET, INVERTER, NO.4

mainG92170S010iKMB53202108

G9223BCOVER, INVERTER TERMINAL

mainG922311010iKMB53202108

8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16820

90105C0164

main90105-C0164

90105C0236

main90105-C0236

9011910A04

main90119-10A04

9017908040

main90179-08040

9155201045

main91552-01045

9167380616

main91673-80616

15 parts on this diagram · 1 diagram in section
