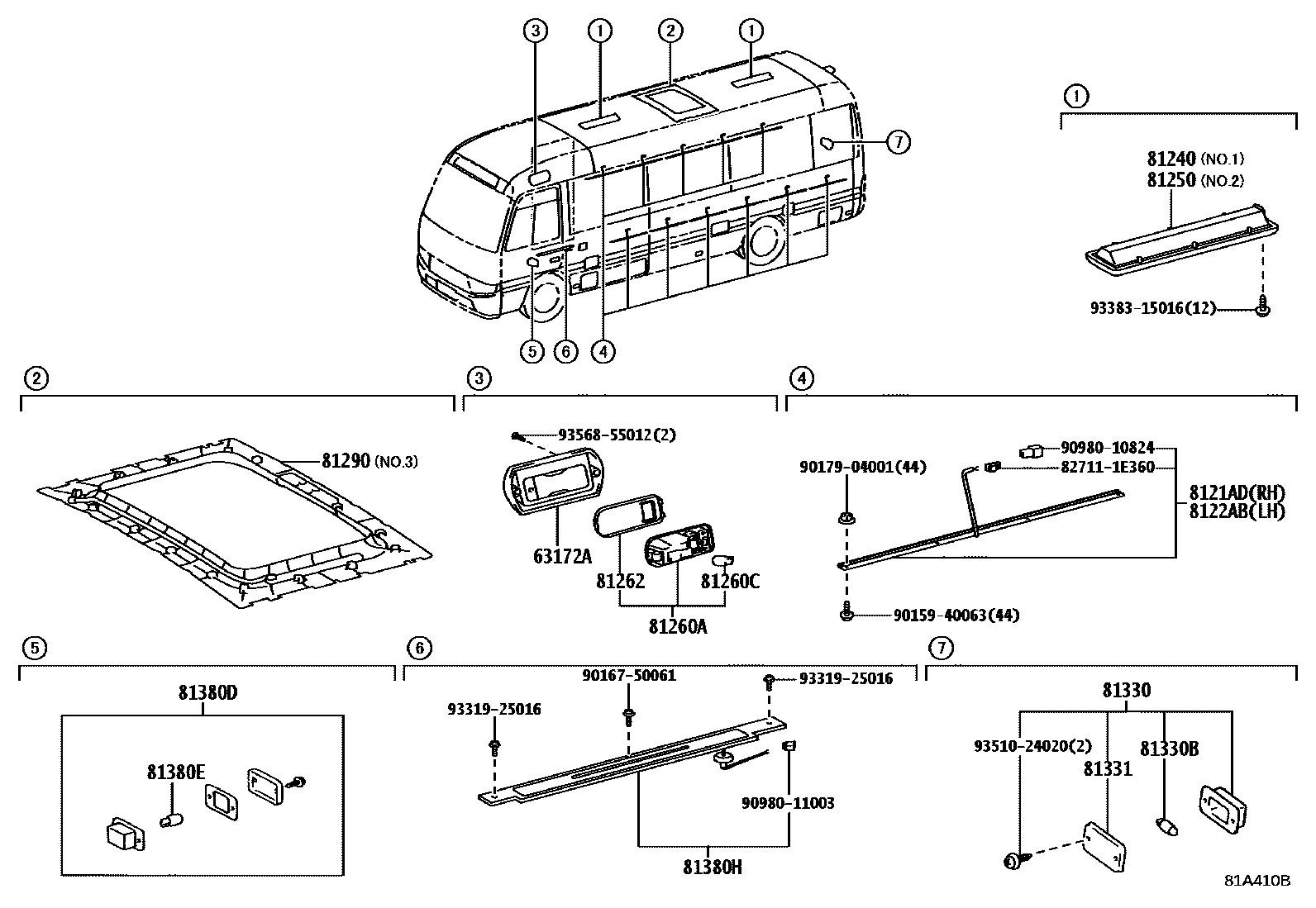

INTERIOR LAMP

63172ABASE, ROOM LAMP

main63172-36020-A0iKMB53202108

IVORY,TRIM4#

8121ADLAMP, LED ILLUMINATION, RH

main8121A-0S010×5iKMB53202108

8122ABLAMP, LED ILLUMINATION, LH

main8121A-0S010×6iKMB53202108

81240LAMP ASSY, ROOM, NO.1

main81260-0S030iKMB53202108

81250LAMP ASSY, ROOM, NO.2

main81260-0S030iKMB53202108

81260ALAMP ASSY, MAP

main81240-36120-A0iKMB53202108

IVORY,TRIM4#

81260CBULB(FOR MAP LAMP)

main99132-12050iKMB53202108

12V 5W

81262LENS, MAP LAMP

main81251-30120iKMB53202108

81290LAMP ASSY, ROOM, NO.3

main81260-0S040iKMB53..03S202108

main81260-0S050iKMB53..17S202108

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81230-24010iKMB53..17S202108

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-13050iKMB53..17S202108

12V 5W

81331LENS, LUGGAGE COMPARTMENT LAMP

main81231-30080iKMB53..17S202108

81380DLAMP ASSY, STEP

main81380-0S010iKMB53202108

81380EBULB (FOR STEP LAMP)

main99132-12050iKMB53202108

81380HLAMP ASSY, STEP

main81380-0S021iKMB53202108

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9015940063

main90159-40063

9016750061

main90167-50061

9017904001

main90179-04001

9098010824

main90980-10824

9098011003

main90980-11003

9331925016

main93319-25016

9338315016

main93383-15016

9351024020

main93510-24020

9356855012

main93568-55012

25 parts on this diagram · 1 diagram in section
