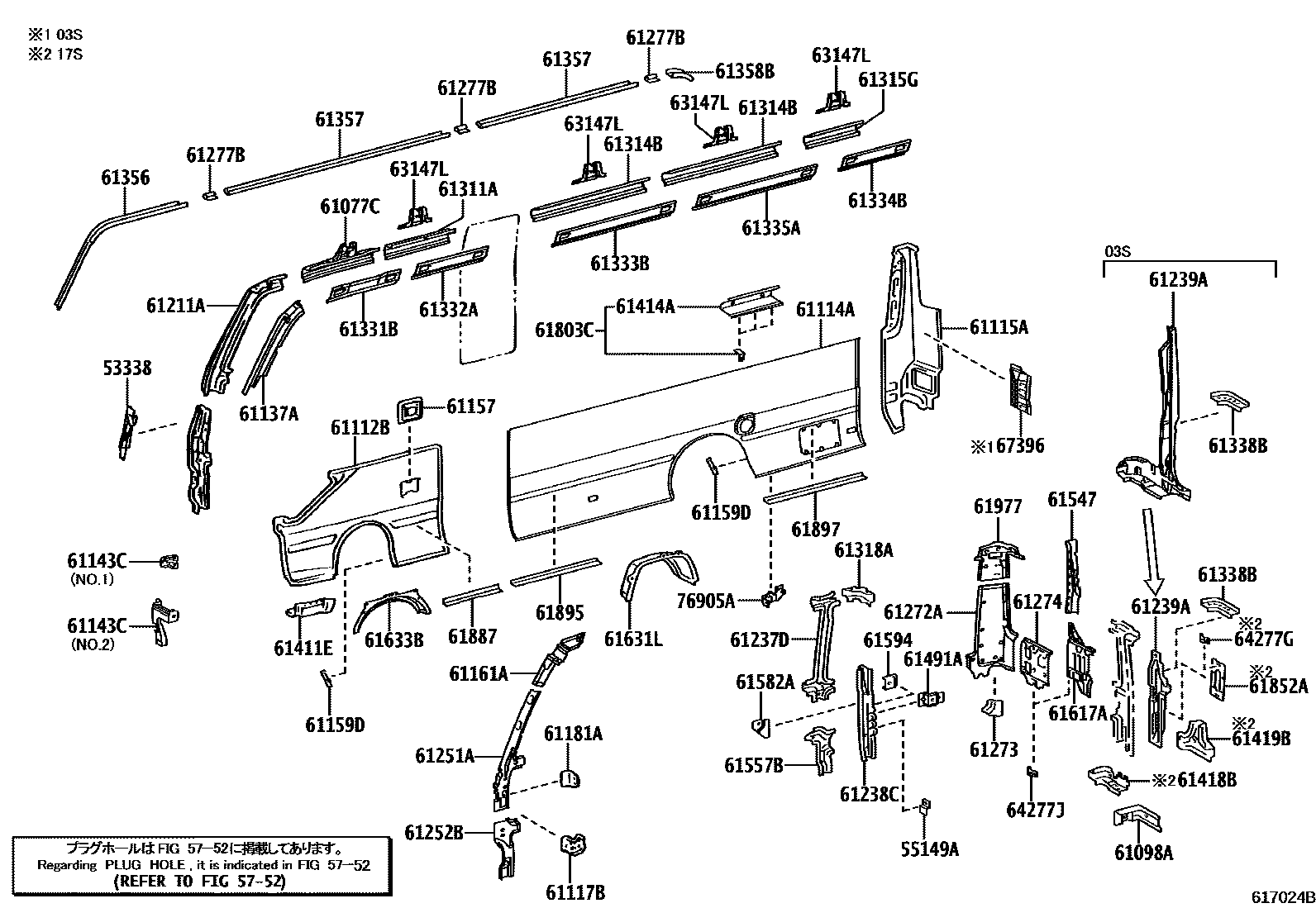

SIDE MEMBER

0001 1RH 0002 1LH 0003 1CENTER DOOR OPENING & STIFFEN0004 1PILLAR 0005 1SIDE RAIL

53338REINFORCEMENT, HOOD, INNER REAR

main53338-0S010iKMB53202108

55149ABRACKET, DASH WIRING HARNESS

main55149-36010iKMB53202108

5752HOLE PLUG

→ Go to FIG 57-52

61077CRAIL SUB-ASSY, NO.1 UPPER OUTER, RH

main61077-0S010iKMB53202108

61098ASTIFFENER SUB-ASSY, PILLAR NO.10, INNER RH

main61098-0S010iKMB53202108

61112BPANEL, NO.2 SIDE, RH

main61112-0S020iKMB53..17S202108

61114APANEL, NO.3 SIDE, RH

main61114-0S010iKMB53..17S202108

61115APANEL, NO.4 SIDE, RH

main61115-0S030iKMB53..17S202108-202201

61117BRETAINER, WASHER TANK

main61117-36010iKMB53202108

61137AREINFORCEMENT, FRONT BODY PILLAR, LOWER OUTER RH

main61137-0S010iKMB53202108

61143CSUPPORT, FRONT BUMPER SIDE, RH

main61143-0S010iKMB53202108

NO.1

main61143-0S020iKMB53202108

NO.2

61157BRACKET, NO.2 SIDE PANEL

main61157-36020iKMB53..17S202108

61159DRETAINER, SIDE PANEL, NO.2 RH

main61159-36010×2iKMB53..17S202108

61161APILLAR, FRONT BODY, INNER RH

main61161-0S020iKMB53202108

61181ABRACKET, INSTRUMENT SIDE, RH

main61183-36010iKMB53202108

61211APILLAR, NO.1 OUTER, UPPER RH

main61211-0S010iKMB53202108

61237DPILLAR, NO.9 OUTER, UPPER RH

main61237-36010iKMB53202108

61238CRAIL, ROOF SIDE, INNER NO.4 LH

main61238-36060iKMB53202108

61239APILLAR, NO.10 RH

main61031-36020iKMB53..03S202108

main61239-36010iKMB53..17S202108

61251APILLAR, NO.1 INNER, RH

main61251-0S020iKMB53202108

61252BPILLAR, NO.1 INNER, LOWER RH

main61252-0S010iKMB53202108

61272APILLAR, NO.9 INNER, RH

main61272-0S030iKMB53..17S202108

61273PILLAR, NO.9 INNER, LOWER RH

main61273-0S010iKMB53..17S202108

61274PILLAR, NO.10 INNER, RH

main61274-0S020iKMB53..17S202108

61277BJOINT, ROOF DRIP CHANNEL

main61277-36010×3iKMB53202108

61311ARAIL, NO.1 UPPER OUTER, RH

main61312-0S010iKMB53202108

61314BRAIL, NO.2 UPPER OUTER, RH

main61314-36060×2iKMB53202108

61315GRAIL, NO.3 UPPER OUTER, RH

main61315-36020iKMB53202108

61318ARAIL, NO.6 UPPER OUTER, RH

main61318-36010iKMB53202108

61331BRAIL, NO.1 UPPER INNER, FRONT RH

main61331-0S020iKMB53202108

61332ARAIL, NO.1 UPPER INNER, REAR RH

main61332-0S020iKMB53202108

61333BRAIL, NO.2 UPPER INNER, RH

main61333-0S010iKMB53202108

61334BRAIL, NO.3 UPPER INNER, RH

main61334-36031iKMB53202108

61335ARAIL, NO.4 UPPER INNER, RH

main61335-0S020iKMB53202108

61338BRAIL, REAR SIDE NO.2, RH

main61338-0S010iKMB53202108

61356CHANNEL, ROOF DRIP SIDE, FRONT RH

main61356-36010iKMB53202108

61357CHANNEL, ROOF DRIP SIDE, CENTER NO.1

main61357-36010×2iKMB53202108

61358BCHANNEL, ROOF DRIP SIDE, REAR RH

main61358-36010iKMB53..17S202108

61411ERAIL, NO.1 LOWER OUTER, RH

main61411-0S010iKMB53202108

61414ARAIL,NO.4 LOWER OUTER, RH

main61414-0S010×2iKMB53202108

61418BRAIL, NO.8 LOWER OUTER, RH

main61418-36050iKMB53..17S202108

61419BRAIL, NO.9 LOWER OUTER

main61419-36010iKMB53..17S202108

61491ABRACKET, SIDE PANEL STRENGTH, NO.1

main61491-36040iKMB53202108

61547REINFORCEMENT, QUARTER PILLAR, INNER RH

main61547-0S010iKMB53..17S202108

61557BGUSSET, PILLAR TO RAIL, NO.2

main61557-36020iKMB53202108

61582ABRACKET, REAR SEAT, NO.2

main61582-36020iKMB53202108

61594BRACKET, STIFFENER, NO.4

main61594-36010×2iKMB53202108

61617APANEL, QUARTER INNER, REAR RH

main61617-0S010iKMB53..17S202108

61631LPANEL, REAR WHEEL HOUSE, OUTER RH

main61631-36010iKMB53202108

61633BPANEL, WHEEL HOUSE

main61633-0S011iKMB53202108

61803CRAIL SUB-ASSY, NO.4 LOWER OUTER, RH

main61803-0S010iKMB53202108

61852APLATE, NO.5 PILLAR BOARD SET

main61852-36020iKMB53..17S202108

61887RAIL, SIDE PANEL DUST PROOF, NO.1 RH

main61888-36031iKMB53..17S202108

61895RAIL, SIDE PANEL DUST PROOF, NO.2 RH

main61895-36011iKMB53..17S202108

61897RAIL, SIDE PANEL DUST PROOF, NO.3 RH

main61897-36011iKMB53..17S202108

61977REINFORCEMENT, PILLAR NO.9 INNER, RH

main61977-0S010iKMB53..17S202108

63147LBRACKET, ROOF PANEL REINFORCEMENT

main63147-36011×4iKMB53202108

64277GBRACKET, SIDE TRIM BASE PLATE, RH

main64277-36020×2iKMB53..17S202108

64277JBRACKET, INNER PILLAR, RH

main64277-36020×2iKMB53..17S202108

67396STIFFENER, BACK DOOR RH

main67396-0S010iKMB53..03S202108

76905ARETAINER SUB-ASSY, SIDE MUDGUARD, LOWER RH

main76905-36010iKMB53..17S202108

61 parts on this diagram · 5 diagrams in section
