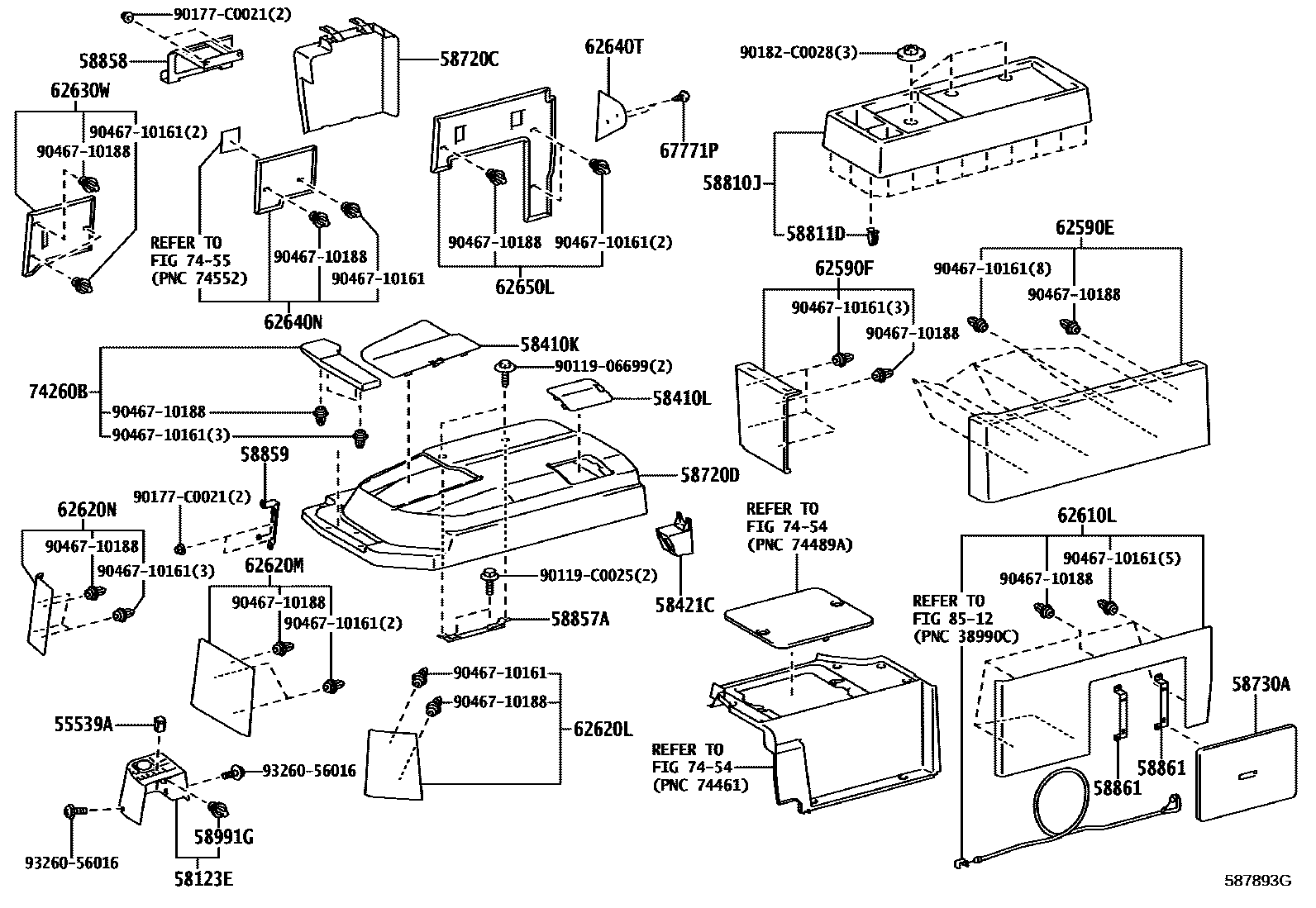

CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
58123ESUPPORT, SHIFT & SELECT LEVER
58410KCOVER ASSY, ENGINE SERVICE HOLE, NO.1
58410LCOVER ASSY, ENGINE SERVICE HOLE, NO.2
58421CCOVER, ENGINE SERVICE HOLE
58720CCOVER ASSY, ENGINE SERVICE, FRONT NO.1
58720DCOVER ASSY, ENGINE SERVICE, FRONT NO.2
58730ACOVER ASSY, ENGINE SERVICE, REAR
58810JBOX ASSY, CONSOLE
58811DCLIP(FOR CONSOLE BOX)
58857ABRACKET, CONSOLE SUPPORT, UPPER NO.1
58858BRACKET, CONSOLE SUPPORT, NO.1
58859BRACKET, CONSOLE SUPPORT, NO.2
58861BRACKET, CONSOLE SUPPORT, NO.3
58991GCLIP
62590EGARNISH ASSY, CTR FLOOR FRONT CROSSMEMBER, NO.1
62590FGARNISH ASSY, CTR FLOOR FRONT CROSSMEMBER, NO.2
62610LBOARD ASSY, SIDE TRIM, NO.1
62620LBOARD ASSY, SIDE TRIM, NO.2
62620MBOARD ASSY, SIDE TRIM, NO.3
62620NBOARD ASSY, SIDE TRIM, NO.4
62630WBOARD ASSY, SIDE TRIM, NO.5
62640NBOARD ASSY, SIDE TRIM, NO.6
62640TBOARD ASSY, SIDE TRIM, NO.7
62650LBOARD ASSY, SIDE TRIM, NO.8
67771PRETAINER (FOR SIDE TRIM BOARD)
BLACK
74260BARMREST ASSY, QUARTER, LH
7454BATTERY CARRIER
7455CAUTION PLATE
8512AUTOMATIC DOOR
9011906699
main90119-06699
90119C0025
main90119-C0025
90177C0021
main90177-C0021
90182C0028
main90182-C0028
9046710161
main90467-10161
9046710188
main90467-10188
9326056016
main93260-56016
37 parts on this diagram · 1 diagram in section
