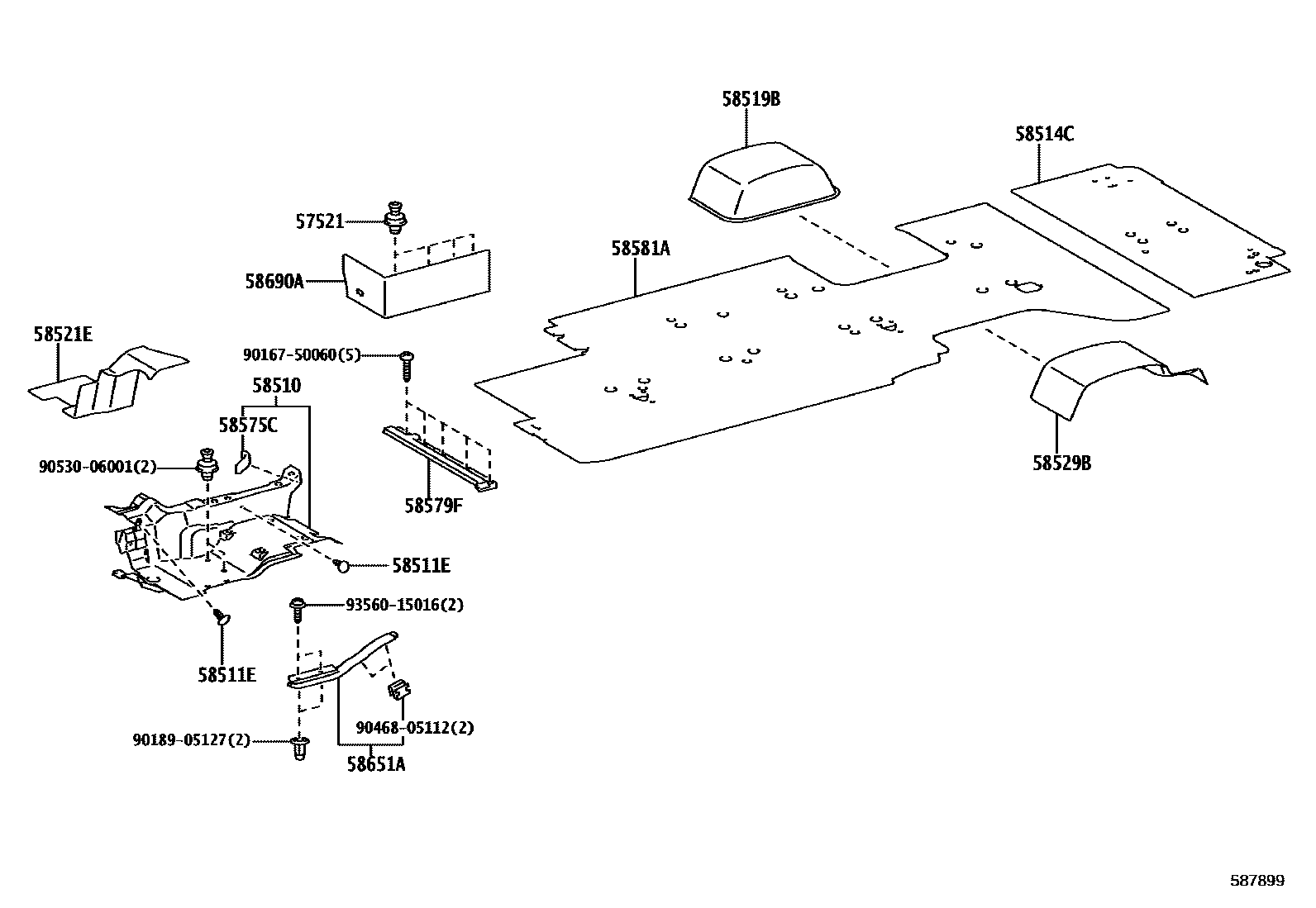

FLOOR MAT & SILENCER PAD

0001 1 0002 1 0003 1 0004 1

57521FASTENER, HOOK

main90530-06001iKMB53202108

58510MAT ASSY, FRONT FLOOR, FRONT NO.1

main58510-0S110iKMB53202108

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-05164-C0iKMB53202108

BLACK

sub90467-05164

58514CMAT, FROOR, REAR

main58514-0S030iKMB53..17S202108

58519BMAT, REAR WHEEL HOUSE, RH

main58580-0S030-C0iKMB53..03S202108

BLACK

main58580-0S070iKMB53..17S202108

58521ECARPET, ENGINE SERVICE HOLE COVER

main58521-0S110iKMB53202108

58529BMAT, REAR WHEEL HOUSE, LH

main58590-0S040iKMB53..17S202108

main58590-0S050iKMB53..03S202108

58575CPAD, FRONT FLOOR, FRONT

main58571-0S090iKMB53202108

58579FPLATE, REAR FLOOR MAT SUPPORT SIDE, NO.3

main58579-0S010iKMB53202108

58581AMAT, REAR FLOOR

main58581-0S180iKMB53..17S202108

main58581-0S220iKMB53..03S202108

58651APLATE, FRONT DOOR MAT, NO.1

main58651-36021-E0iKMB53202108

GREIGE,TRIM4#

58690ACARPET ASSY, CENTER DOOR STEP

main58690-0S030iKMB53..17S202108

main58690-0S040iKMB53..03S202108

9016750060

main90167-50060

9018905127

main90189-05127

9046805112

main90468-05112

9053006001

main90530-06001

9356015016

main93560-15016

17 parts on this diagram · 4 diagrams in section
