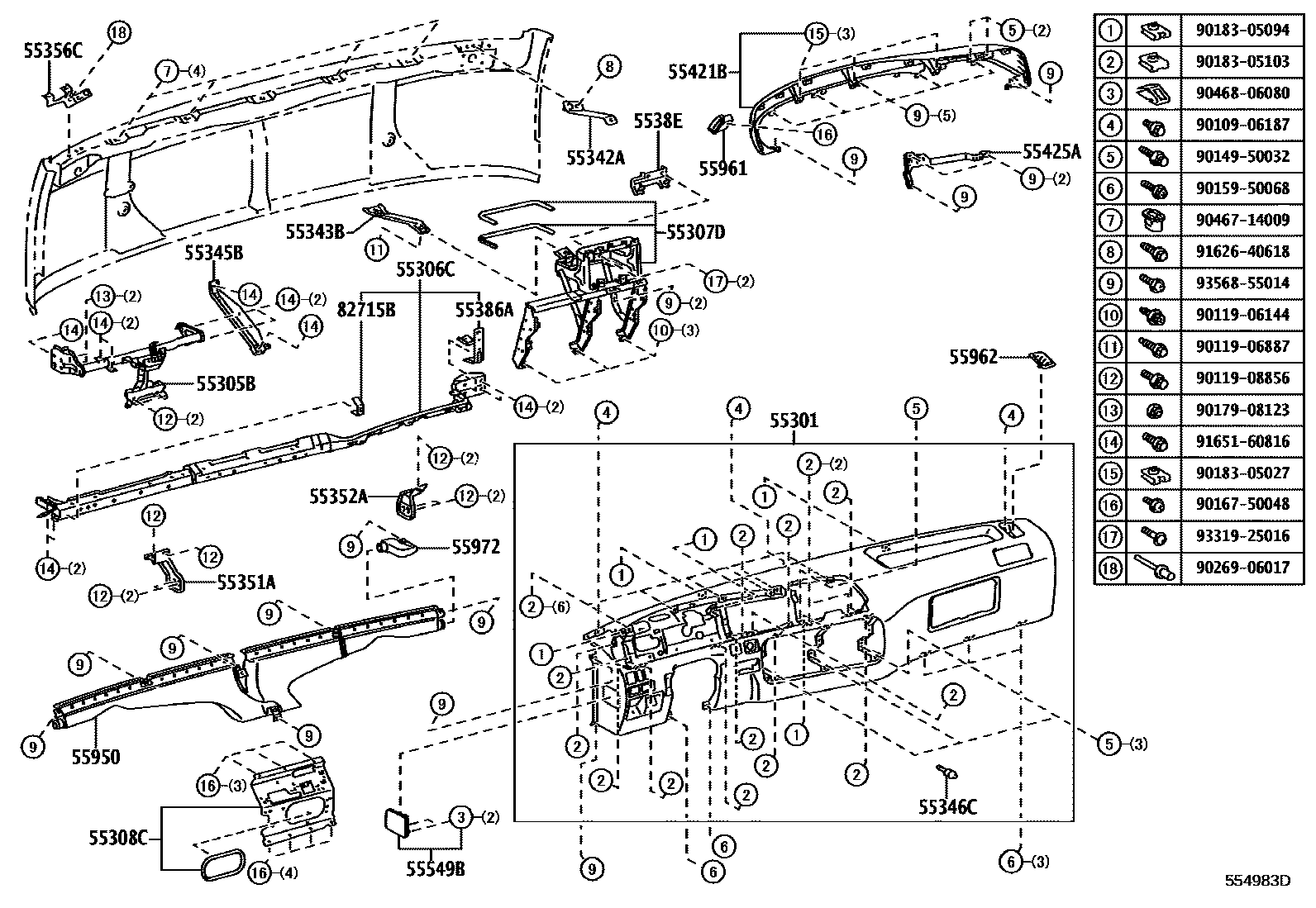

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55301-0S030-E0iKMB53202108

GREIGE,TRIM4#

55305BREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.1

main55305-0S020iKMB53202108

55306CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.2

main55306-0S020iKMB53202108

55307DREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.3

main55307-36070iKMB53202108

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-36030iKMB53202108

55342ABRACE, INSTRUMENT PANEL TO COWL, NO.2

main55342-36040iKMB53202108

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-0S010iKMB53202108

55345BBRACE, INSTRUMENT PANEL TO COWL, NO.4

main55345-36020iKMB53202108

55346CPIN, INSTRUMENT PANEL

main90249-04029×4iKMB53202108

55351ABRACE, INSTRUMENT PANEL TO FLOOR

main55351-36021iKMB53202108

55352ABRACE, INSTRUMENT PANEL TO FLOOR, NO.2

main55352-36021iKMB53202108

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-0S010iKMB53202108

55386ABRACKET, COMPUTER MOUNTING, NO.1

mainG92730S010iKMB53202108

5538EBRACKET, ELECTRICAL PARTS MOUNTING

main86683-0S010iKMB53202108

55421BPANEL, INSTRUMENT CLUSTER FINISH, UPPER

main55421-0S020-E0iKMB53202108

GREIGE,TRIM4#

55425ABRACKET, METER HOOD SET

main55425-0S010iKMB53202108

55549BCOVER, INSTRUMENT PANEL HOLE, NO.2

main55549-0S010-E0iKMB53202108

GREIGE,TRIM4#

55950NOZZLE ASSY, DEFROSTER

main55950-0S020iKMB53202108

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-0S010-E0iKMB53202108

GREIGE,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-36020-E0iKMB53202108

GREIGE,TRIM4#

55972DUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-36020iKMB53202108

82715BBRACKET, WIRING HARNESS CLAMP

main82715-0S480iKMB53202108

9010906187

main90109-06187

9011906144

main90119-06144

9011906887

main90119-06887

9011908856

main90119-08856

9014950032

main90149-50032

9015950068

main90159-50068

9016750048

main90167-50048

9017908123

main90179-08123

9018305027

main90183-05027

9018305094

main90183-05094

9018305103

main90183-05103

9026906017

main90269-06017

9046714009

main90467-14009

9046806080

main90468-06080

9162640618

main91626-40618

9165160816

main91651-60816

9331925016

main93319-25016

9356855014

main93568-55014

40 parts on this diagram · 4 diagrams in section
