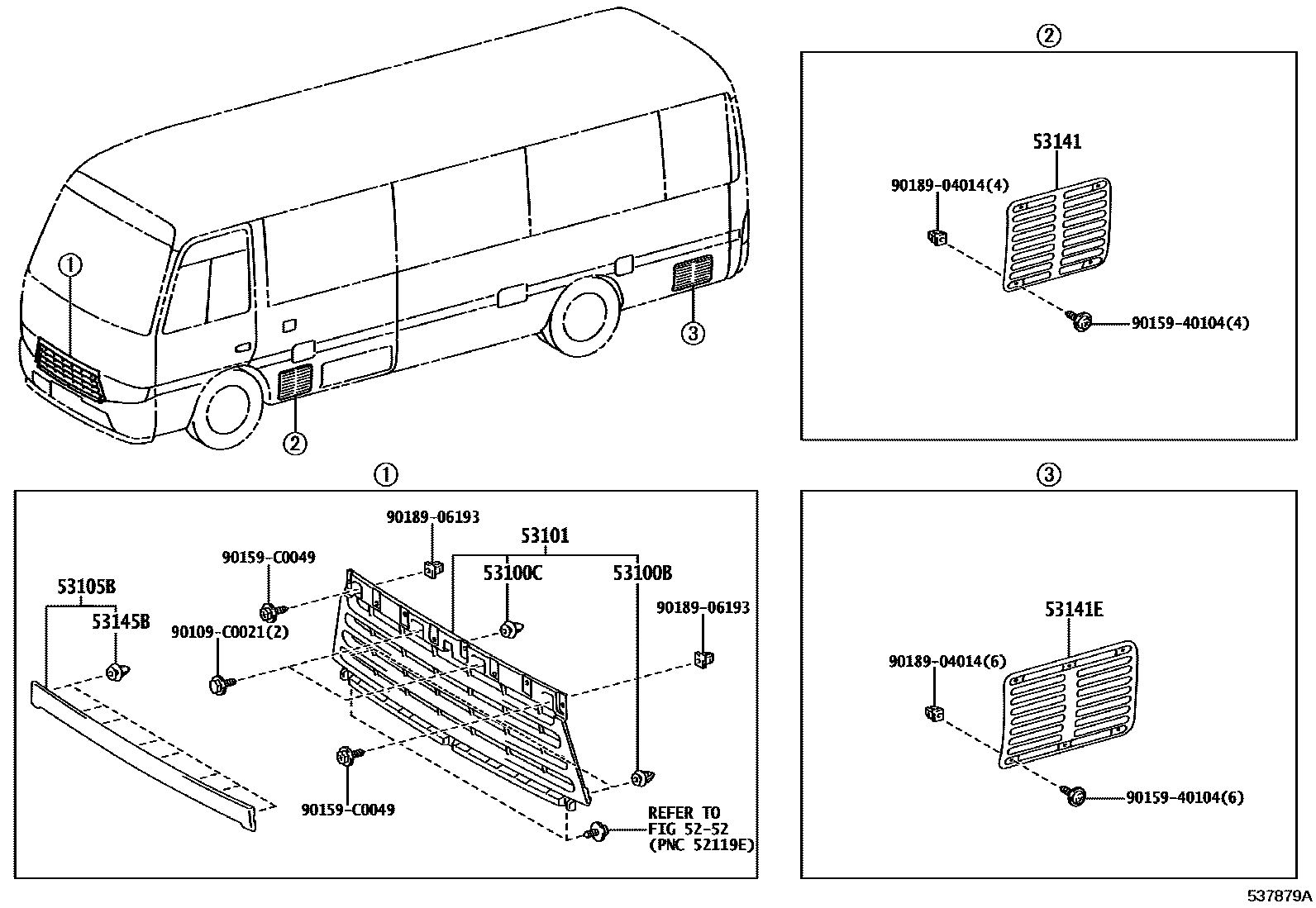

RADIATOR GRILLE

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

53100BCLIP, RADIATOR GRILLE

main62217-13010×2iKMB53202108

53100CCLIP, RADIATOR GRILLE

main90467-C0033iKMB53202108

53101GRILLE SUB-ASSY, RADIATOR

main53101-0S030iKMB53202108

NO PAINT REQ.

53105BGARNISH SUB-ASSY, RADIATOR GRILLE

main53105-0S010iKMB53202108

53141COVER, RADIATOR

main53141-0S020iKMB53202108

53141ECOVER, RADIATOR, NO.1

main53141-0S030iKMB53202108

53145BCLIP, RADIATOR GRILLE GARNISH

main62217-13010×8iKMB53202108

90109C0021

main90109-C0021

9015940104

main90159-40104

90159C0049

main90159-C0049

9018904014

main90189-04014

9018906193

main90189-06193

13 parts on this diagram · 1 diagram in section
