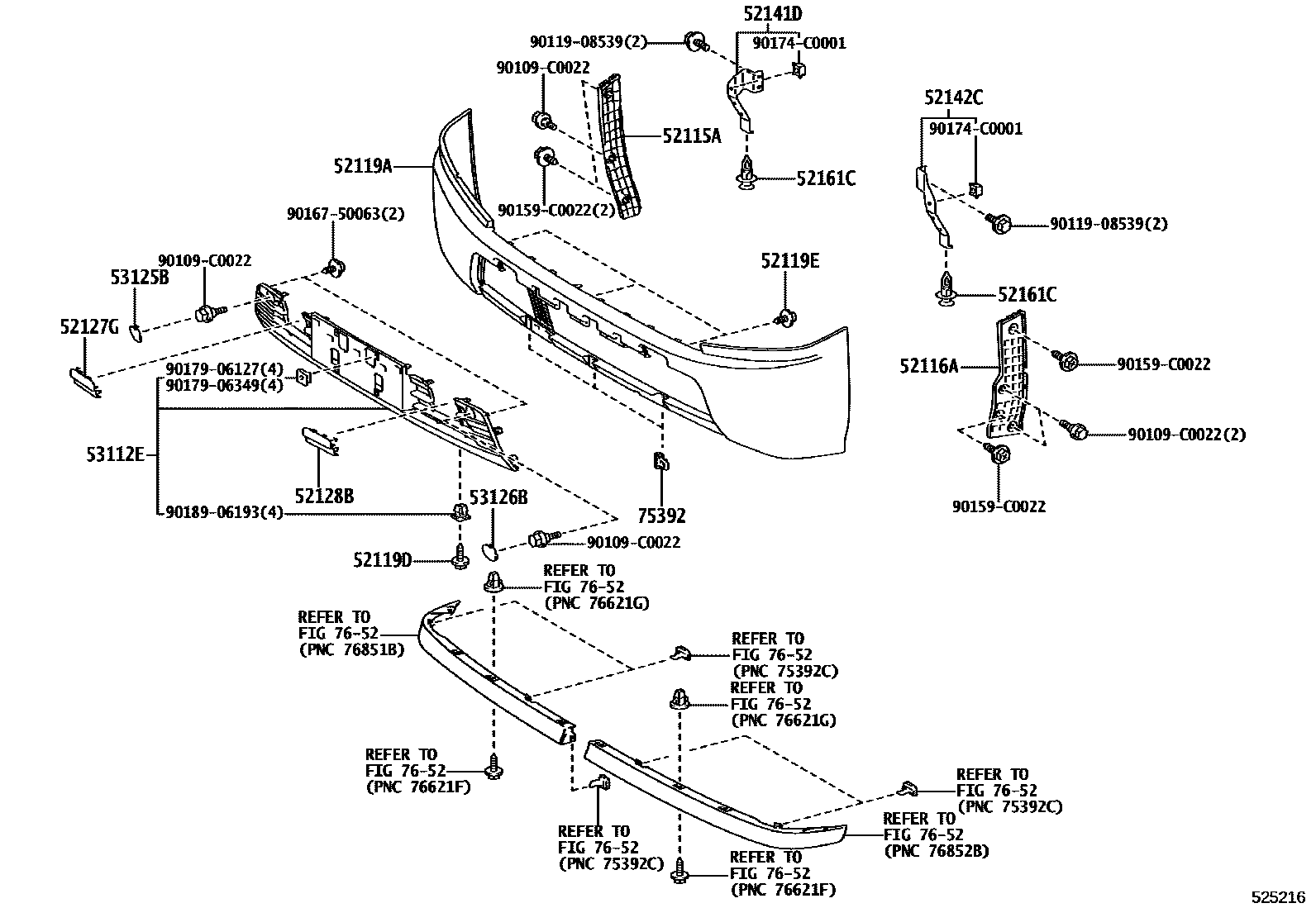

FRONT BUMPER & BUMPER STAY

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-0S010iKMB53202108

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-0S010iKMB53202108

52119ACOVER, FRONT BUMPER

main52119-0S901iKMB53202108

PAINT REQ.

52119DSCREW, NO.1

main90159-C0049×4iKMB53202108

52119ESCREW, NO.2

main90167-50063×3iKMB53202108

52127GCOVER, FRONT BUMPER HOLE, RH

main52127-0S020iKMB53202108

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-0S020iKMB53202108

52141DSTAY, FRONT BUMPER, RH

main52141-0S010iKMB53202108

52142CSTAY, FRONT BUMPER, LH

main52142-0S010iKMB53202108

52161CPIECE, FRONT BUMPER

main52161-16010×2iKMB53202108

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-0S010iKMB53202108

NO PAINT REQ.

53125BMOULDING, RADIATOR GRILLE, CENTER RH

main53125-0S010iKMB53202108

53126BMOULDING, RADIATOR GRILLE, CENTER LH

main53126-0S010iKMB53202108

75392RETAINER, OUTSIDE MOULDING

main75392-0R030×3iKMB53202108

7652SPOILER & SIDE MUDGUARD

→ Go to FIG 76-52

90109C0022

main90109-C0022

9011908539

main90119-08539

90159C0022

main90159-C0022

9016750063

main90167-50063

90174C0001

main90174-C0001

9017906127

main90179-06127

9017906349

main90179-06349

9018906193

main90189-06193

23 parts on this diagram · 1 diagram in section
