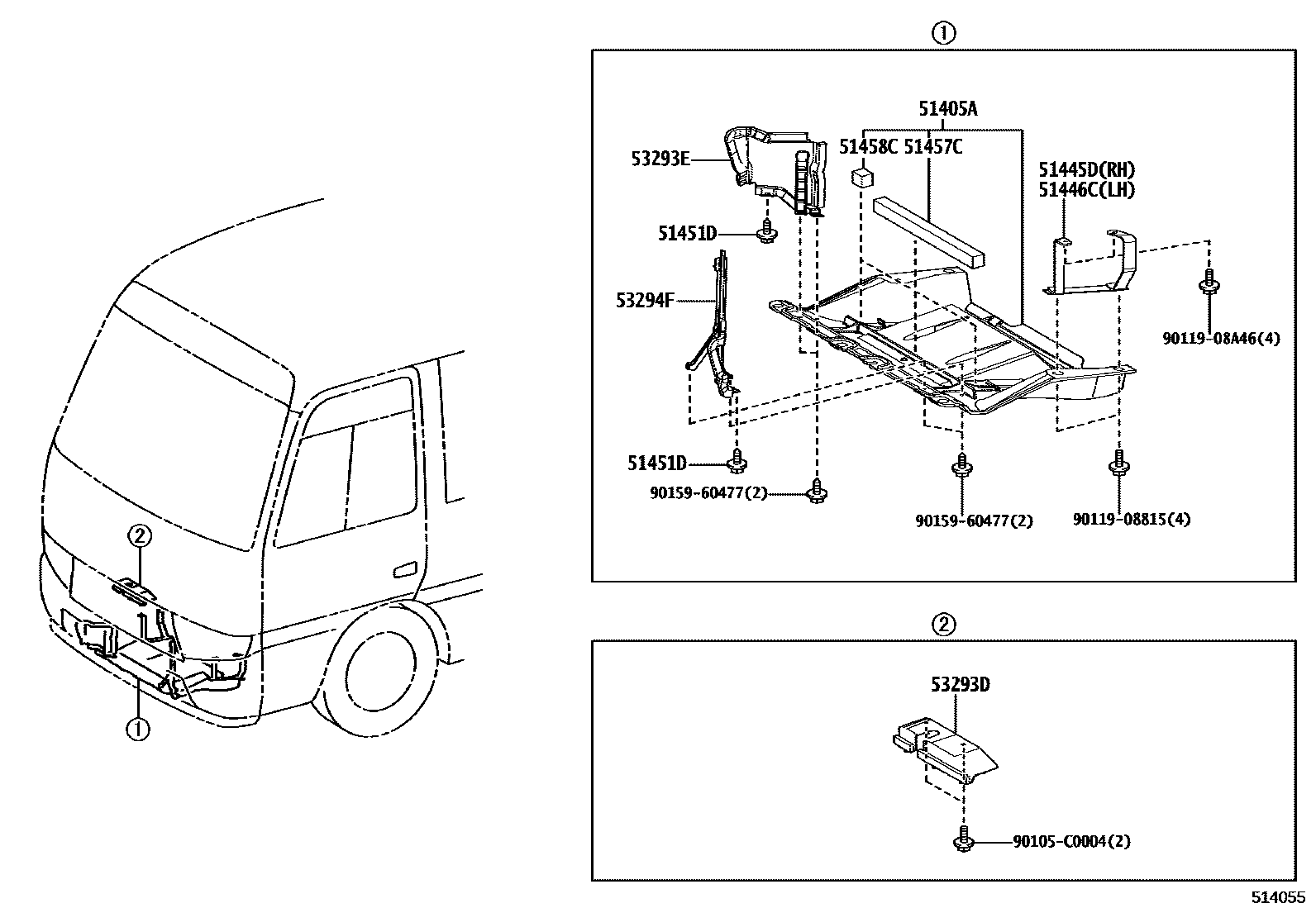

SUSPENSION CROSSMEMBER & UNDER COVER

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-0S020iKMB53202108

51445DBRACKET, ENGINE UNDER COVER, RH

main51445-0S010iKMB53202108

51446CBRACKET, ENGINE UNDER COVER, LH

main51446-0S010iKMB53202108

51451DSCREW, NO.1

main90159-60477×2iKMB53202108

51457CSEAL, ENGINE UNDER COVER, NO.3

main51457-36060iKMB53202108

51458CSEAL, ENGINE UNDER COVER, NO.4

main51458-36030×2iKMB53202108

53293DDEFLECTOR, RADIATOR UPPER AIR

main53293-0S020iKMB53202108

53293EDEFLECTOR, RADIATOR SIDE, RH

main53293-0S010iKMB53202108

53294FDEFLECTOR, RADIATOR SIDE, LH

main53294-0S010iKMB53202108

90105C0004

main90105-C0004

9011908815

main90119-08815

9011908A46

main90119-08A46

9015960477

main90159-60477

13 parts on this diagram · 1 diagram in section
