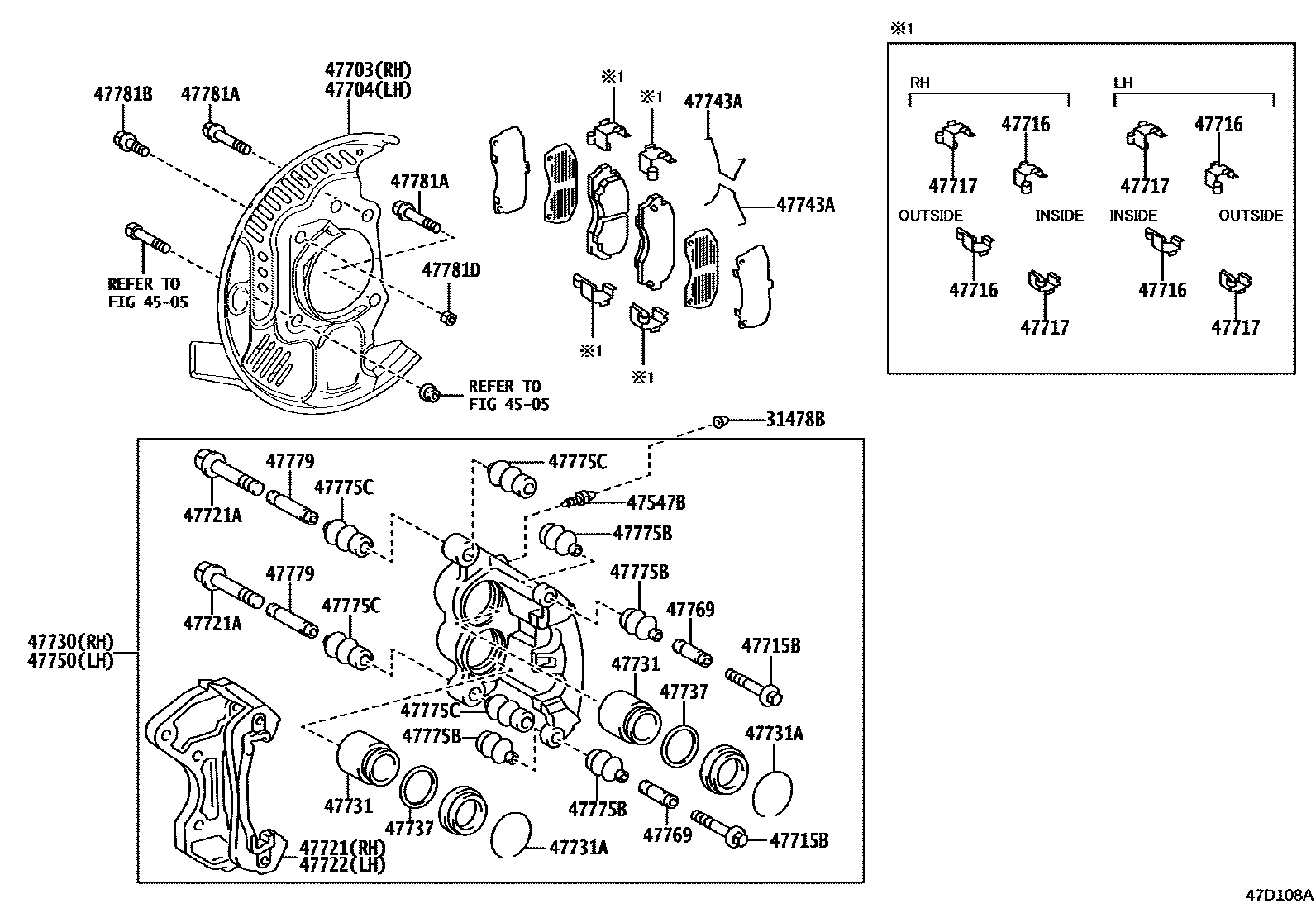

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iKMB53202108

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010iKMB53202108

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-0S011iKMB53202108

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-0S011iKMB53202108

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90119-08992iKMB53202108

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-36020iKMB53202108

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-36020iKMB53202108

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-36040iKMB53202108

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-12256iKMB53202108

*12-1.25PX75-30

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-36040iKMB53202108

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-36040iKMB53202108

47731PISTON, FRONT DISC BRAKE

main47731-36020iKMB53202108

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001iKMB53202108

47737SEAL, FRONT DISC BRAKE CYLINDER PISTON

main47737-32010iKMB53202108

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-36020iKMB53202108

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-36040iKMB53202108

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-36030iKMB53202108

47775BBOOT, BUSH DUST, NO.1

main47775-36040iKMB53202108

47775CBOOT, BUSH DUST, NO.2

main47775-36050iKMB53202108

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-36010iKMB53202108

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90105-16044iKMB53202108

47781BBOLT(FOR DUST COVER SETTING)

main90105-16045iKMB53202108

*16-1.5PX35.5-26.5

47781DNUT(FOR DUST COVER SETTING)

main94130-01602iKMB53202108

24 parts on this diagram · 2 diagrams in section
