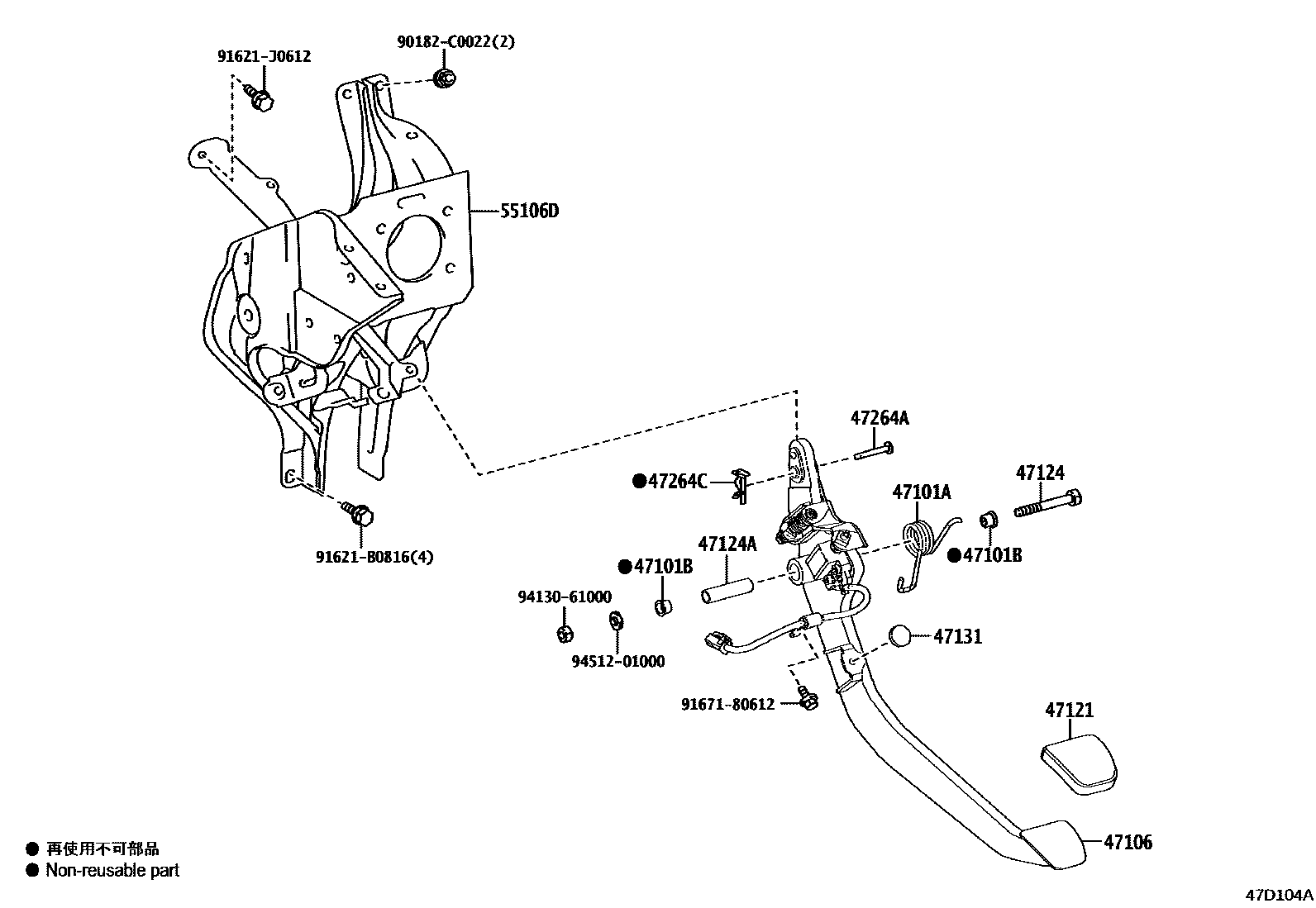

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35322iKMB53202108

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007×2iKMB53202108

47106PEDAL SUB-ASSY, BRAKE W/SWITCH

main47106-36010iKMB53202108

47121PAD, BRAKE PEDAL

main31321-14020iKMB53202108

47124SHAFT, BRAKE PEDAL

main91121-61070iKMB53202108

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iKMB53202108

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iKMB53202108

47264APIN(FOR PUSH ROD)

main90240-06028iKMB53202108

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90468-07027iKMB53202108

55106DBRACKET SUB-ASSY, PEDAL

main55106-0S020iKMB53202108

90182C0022

main90182-C0022

91621B0816

main91621-B0816

91621J0612

main91621-J0612

9167180612

main91671-80612

9413061000

main94130-61000

9451201000

main94512-01000

16 parts on this diagram · 1 diagram in section
