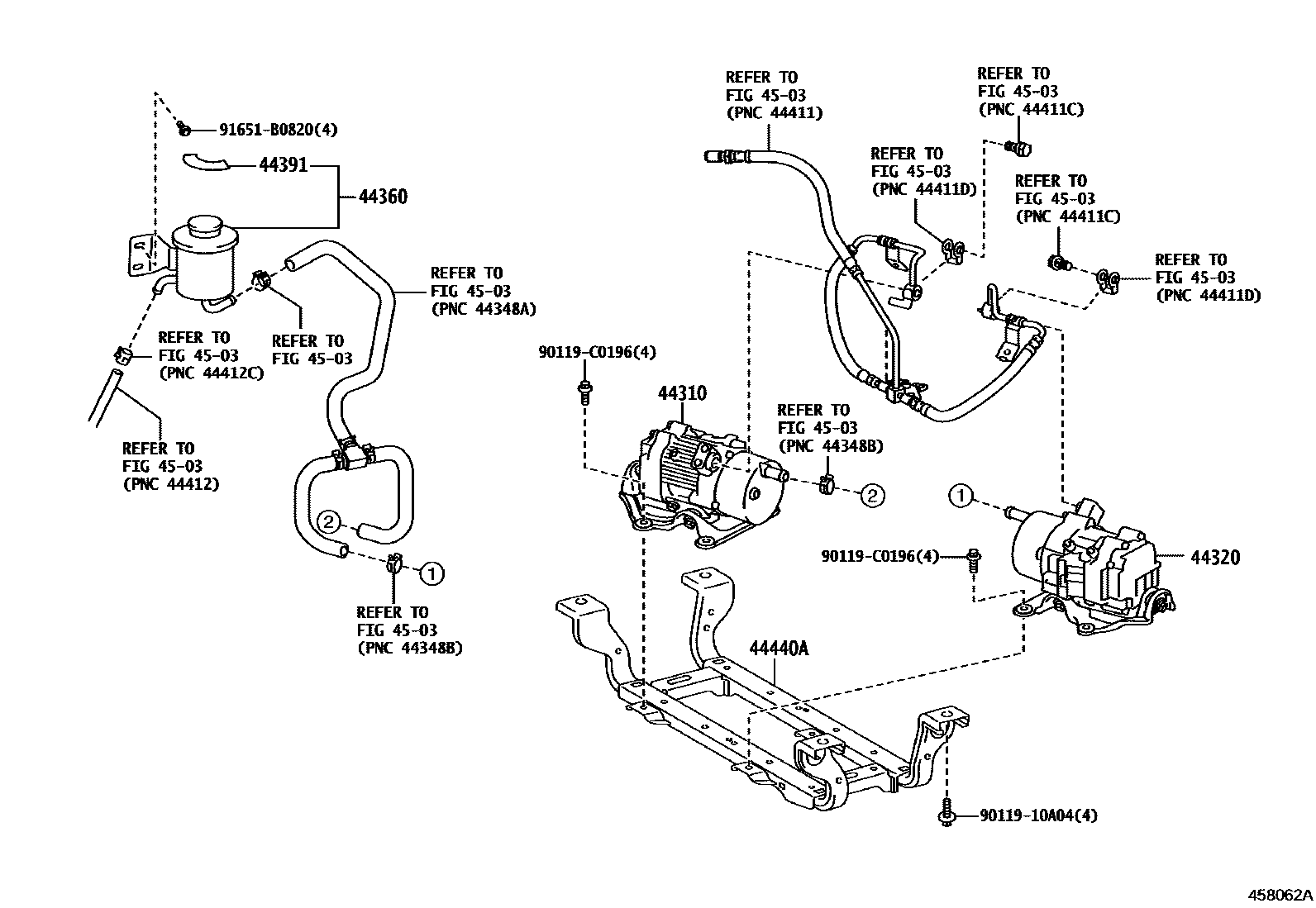

VANE PUMP & RESERVOIR (POWER STEERING)

44310PUMP ASSY, VANE

main44310-0S010iKMB53202108

44320PUMP ASSY, VANE

main44310-0S020iKMB53202108

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-36460iKMB53202108

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-36040iKMB53202108

44440ABRACKET ASSY, PUMP

main44440-0S020iKMB53202108

4503POWER STEERING TUBE

→ Go to FIG 45-03

9011910A04

main90119-10A04

90119C0196

main90119-C0196

91651B0820

main91651-B0820

9 parts on this diagram · 1 diagram in section
