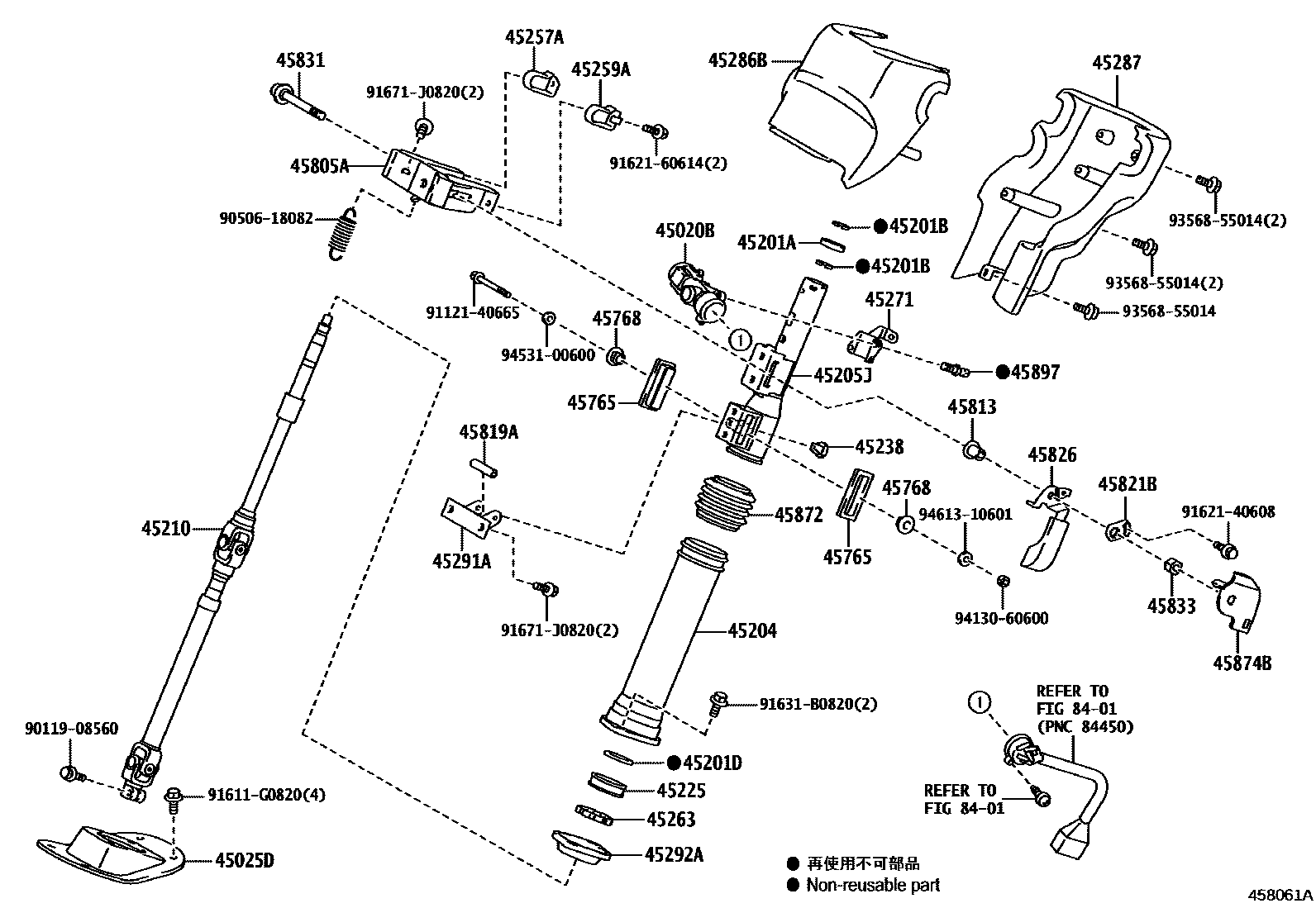

STEERING COLUMN & SHAFT

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-36400iKMB53202108

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-36150iKMB53202108

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-19006iKMB53202108

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17269×2iKMB53202108

T=1.20

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iKMB53202108

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-36220iKMB53202108

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-36240iKMB53202108

45210SHAFT ASSY, STEERING MAIN

main45210-36120iKMB53202108

45225BLOCK, BEARING

main45225-26010iKMB53202108

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iKMB53202108

45257APLATE, STEERING COLUMN ENERGY ABSORBING

main45257-36010iKMB53202108

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-36020iKMB53202108

45263RING, STEERING COLUMN, NO.1

main45263-32010iKMB53202108

45271CLAMP, STEERING COLUMN, UPPER

main45271-36010iKMB53202108

45286BCOVER, STEERING COLUMN, UPR

main45286-0S020-C0iKMB53202108

BLACK

45287COVER, STEERING COLUMN, LWR

main45287-0S020-C0iKMB53202108

BLACK

45291ASUPPORT, STEERING COLUMN TUBE

main45803-37010iKMB53202108

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-36060iKMB53202108

45765GUIDE, TELESCOPIC STEERING

main45765-37010×2iKMB53202108

45768BUSH, TELESCOPIC STEERING

main45768-37010×2iKMB53202108

45805ASUPPORT SUB-ASSY, TILT STEERING

main45805-36010iKMB53202108

45813COLLAR, TILT STEERING SUPPORT, NO.1

main45813-37010iKMB53202108

OD=30

45819ACOLLAR(FOR TILT LEVER RETAINER)

main90387-06037iKMB53202108

45821BREINFORCE, TILT STEERING SUPPORT, NO.1

main45821-12010iKMB53202108

45826LEVER, STEERING TILT

main45826-37010iKMB53202108

45831BOLT, TILT LEVER LOCK, NO.1

main45831-37010iKMB53202108

45833NUT, TILT STEERING ADJUSTING, NO.1

main45833-37010iKMB53202108

45872COVER, STEERING COLUMN TUBE

main45872-36040iKMB53202108

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-0S010iKMB53202108

45897BOLT, STEERING LOCK SET

main45897-12050×2iKMB53202108

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908560

main90119-08560

9050618082

main90506-18082

9112140665

main91121-40665

91611G0820

main91611-G0820

9162140608

main91621-40608

9162160614

main91621-60614

91631B0820

main91631-B0820

91671J0820

main91671-J0820

9356855014

main93568-55014

9413060600

main94130-60600

9453100600

main94531-00600

9461310601

main94613-10601

43 parts on this diagram · 1 diagram in section
