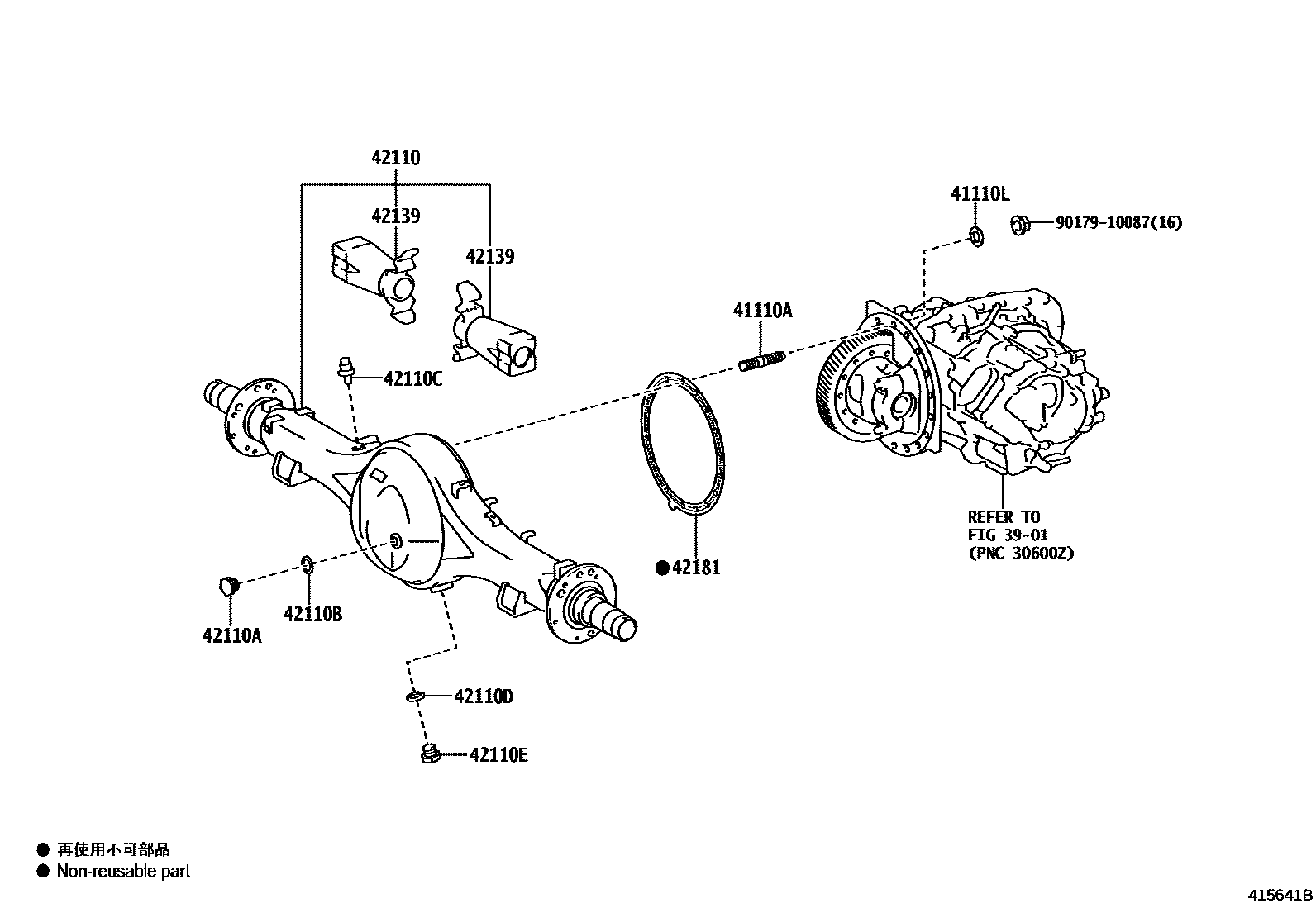

REAR AXLE HOUSING & DIFFERENTIAL

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-10228×16iKMB53202108

S=26 & 18,L=43

41110LWASHER, PLATE(FOR REAR DIFFERENTIAL CARRIER)

main94612-41001×16iKMB53202108

42110HOUSING ASSY, REAR AXLE

main42110-0S020iKMB53202108

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18006iKMB53202108

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iKMB53202108

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03138iKMB53202108

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iKMB53202108

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iKMB53202108

42139DEFLECTOR, REAR AXLE HOUSING OIL

main42108-36030×2iKMB53202108

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-36090iKMB53202108

9017910087

main90179-10087

12 parts on this diagram · 1 diagram in section
