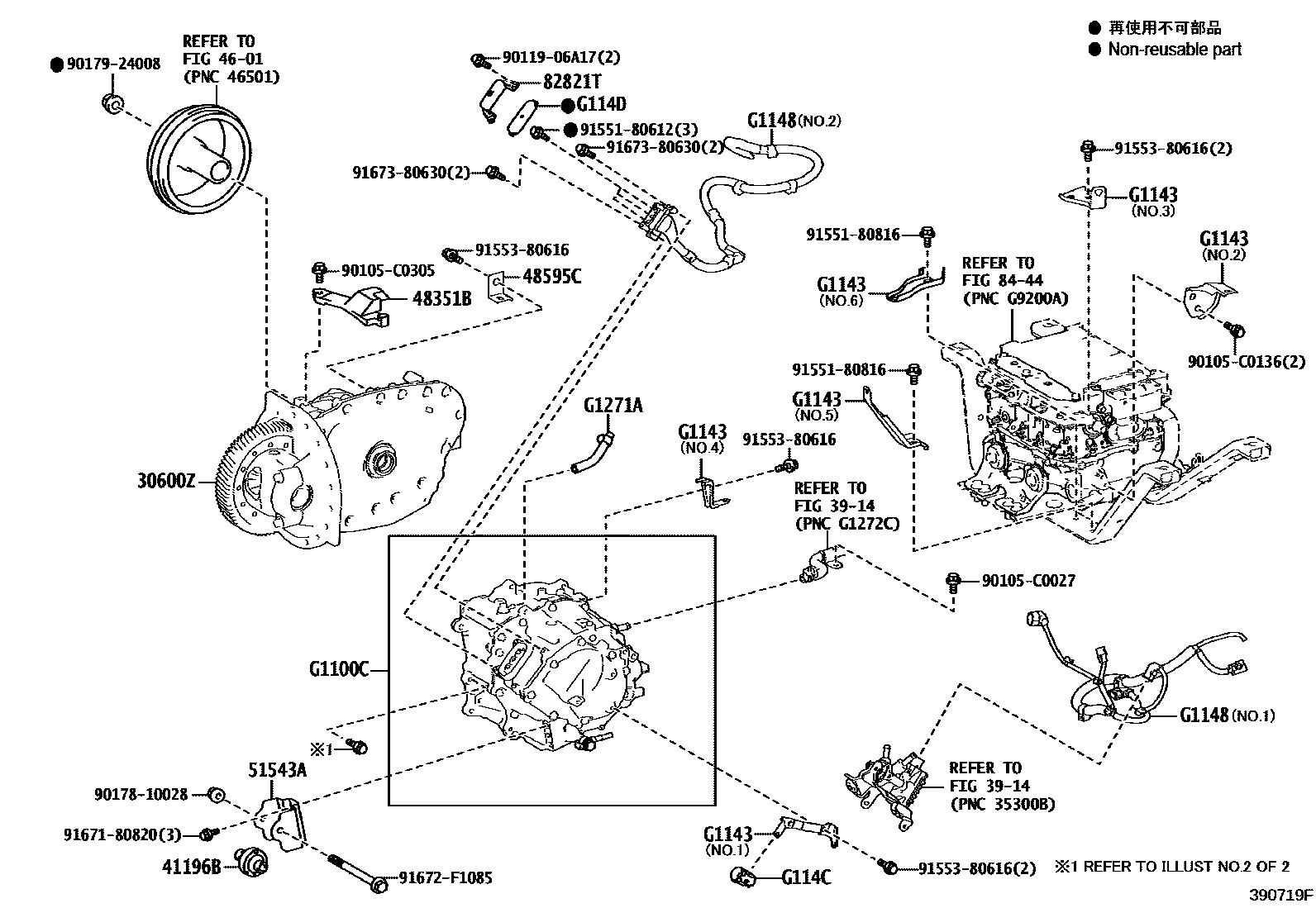

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1

30600ZTRANSAXLE ASSY, FCHV

main30600-0S010iKMB53202108

3914OIL COOLER & TUBE (HEV OR BEV OR FCEV)

→ Go to FIG 39-14

41196BDAMPER, DIFFERENTIAL DYNAMIC

main41196-36010iKMB53202108

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

48351BBUMPER, DIFFERENTIAL CARRIER

main48351-0S010iKMB53202108

48595CCLAMP, ACTUATOR HARNESS

main48595-0S010iKMB53202108

51543ABRACKET, DAMPER

main51543-36010iKMB53202108

82821TCOVER, CONNECTOR

main82821-11010iKMB53202108

8444INVERTER(BEV OR FCEV)

→ Go to FIG 84-44

G1100CMOTOR ASSY, HYBRID VEHICLE

mainG110036030iKMB53202108

G1143BRACKET, MOTOR CABLE

mainG11430S010iKMB53202108

NO.1

mainG11430S020iKMB53202108

NO.2

mainG11430S030iKMB53202108

NO.3

mainG11430S040iKMB53202108

NO.4

mainG11430S050iKMB53202108

NO.5

mainG11430S060iKMB53202108

NO.6

G1148CABLE, MOTOR

mainG11480S010iKMB53202108

NO.1

mainG114836050iKMB53202108

NO.2

G114CPROTECTOR, MOTOR CABLE

mainG114C53040iKMB53202108

G114DCAP, MOTOR CABLE TERMINAL

mainG114D30010iKMB53202108

G1271AHOSE, MOTOR COOLING, NO.1

mainG127136020iKMB53202108

90105C0027

main90105-C0027

90105C0136

main90105-C0136

90105C0305

main90105-C0305

9011906A17

main90119-06A17

9017810028

main90178-10028

9017924008

main90179-24008

9155180612

main91551-80612

9155180816

main91551-80816

9155380616

main91553-80616

9167180820

main91671-80820

91672F1085

main91672-F1085

9167380630

main91673-80630

27 parts on this diagram · 2 diagrams in section
