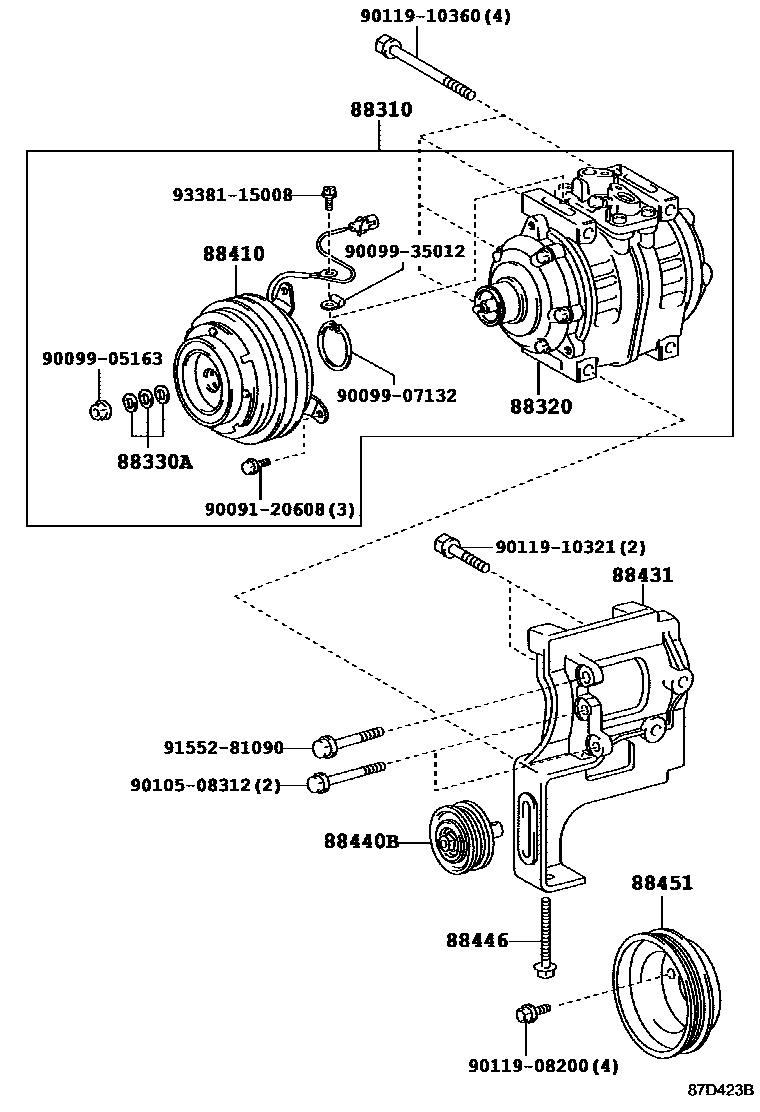

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88310COMPRESSOR ASSY, W/PULLEY

main88310-36891iTRB53201301-201507

main88310-36A10iXZB53201403-201507

88320COMPRESSOR ASSY, COOLER

main88320-36530iGRB53..LX201801-202412

main88320-36540iTRB53201801-201910

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iTRB53201301-201507

88410CLUTCH ASSY, MAGNET

main88410-36430iGRB53,TRB53201301-201507

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-0S010iGRB53..EX,STD201801

main88431-36670iTRB53201801-201910

main88431-E0150iXZB53201403-201507

88440BPULLEY ASSY, IDLE

main88440-0S020iGRB53201301-201403

main88440-0S021iGRB53201404-201507

main88440-0S030iTRB53201507-201801

main88440-36130iXZB53201403-201507

main88440-36210iTRB53201301-201401

88446BOLT, IDLE PULLEY

main88446-36030iTRB53201301-201507

88451PULLEY, CRANKSHAFT

main88451-36190iTRB53201301-201507

9009120608

main90091-20608

9009905163

main90099-05163

9009907132

main90099-07132

9009935012

main90099-35012

9010508312

main90105-08312

9011908200

main90119-08200

9011910321

main90119-10321

9011910360

main90119-10360

9155281090

main91552-81090

9338115008

main93381-15008

18 parts on this diagram · 3 diagrams in section
