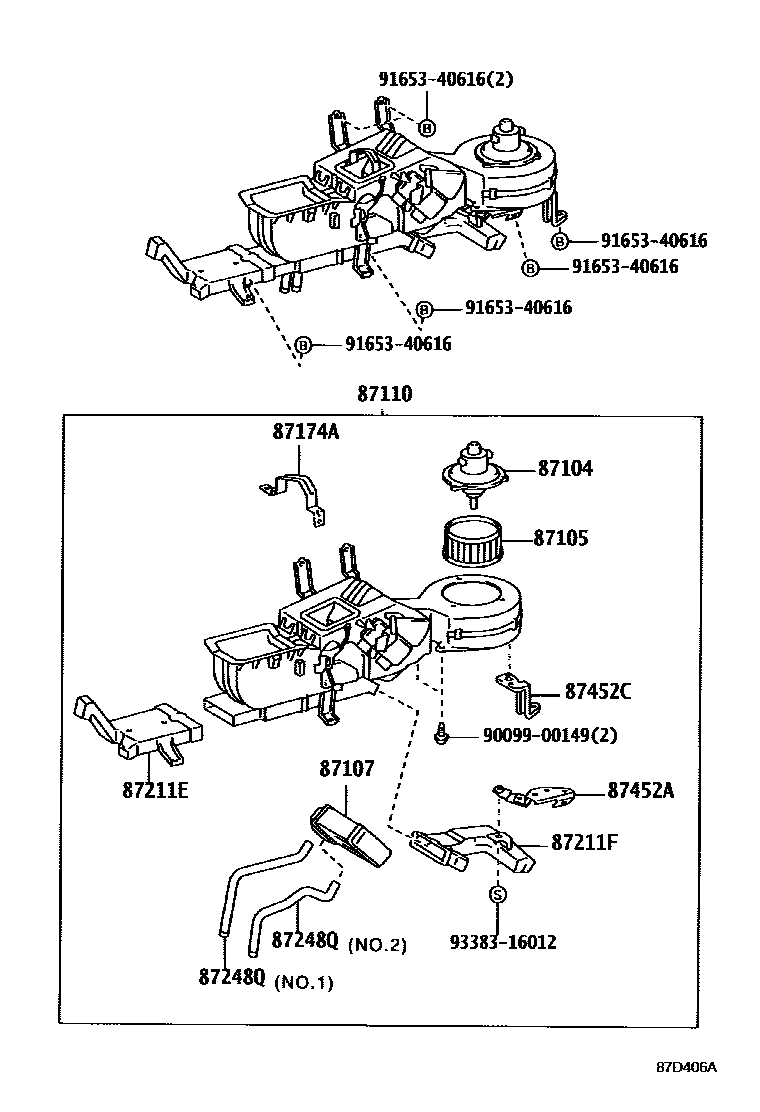

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1FRONT 0003 1REAR 0005 1REAR

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-36340iGRB53,TRB53201507-201801

main87104-36380iXZB53201403-201507

87105FAN SUB-ASSY, HEATER BLOWER

main87105-36100iGRB53,TRB53..EX,STD201801

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-36200iGRB53..LX201801-202412

87110HEATER ASSY

main87110-36570iGRB53..LX201801-202412

main87110-36730iXZB53201403-201507

87174AGUIDE, AIR HEATER

main87174-36060iGRB53,TRB53,XZB53201301-201507

87211EDUCT, AIR

main87211-36120iGRB53,TRB53201507-201801

87211FDUCT, AIR

main87211-36131iGRB53,TRB53,XZB53201301-201507

87248QPIPE, FRONT HEATER RADIATOR WATER

main87248-36460iGRB53,TRB53,XZB53201301-201507

NO.1

main87248-36470iGRB53,TRB53,XZB53201301-201507

NO.2

87452ABRACKET, HEATER, FRONT

main87452-36300iGRB53,TRB53,XZB53201301-201507

87452CBRACKET, FRONT HEATER, NO.2

main87452-36310iGRB53,TRB53,XZB53201301-201507

9009900149

main90099-00149

9165340616

main91653-40616

9338316012

main93383-16012

13 parts on this diagram · 3 diagrams in section
