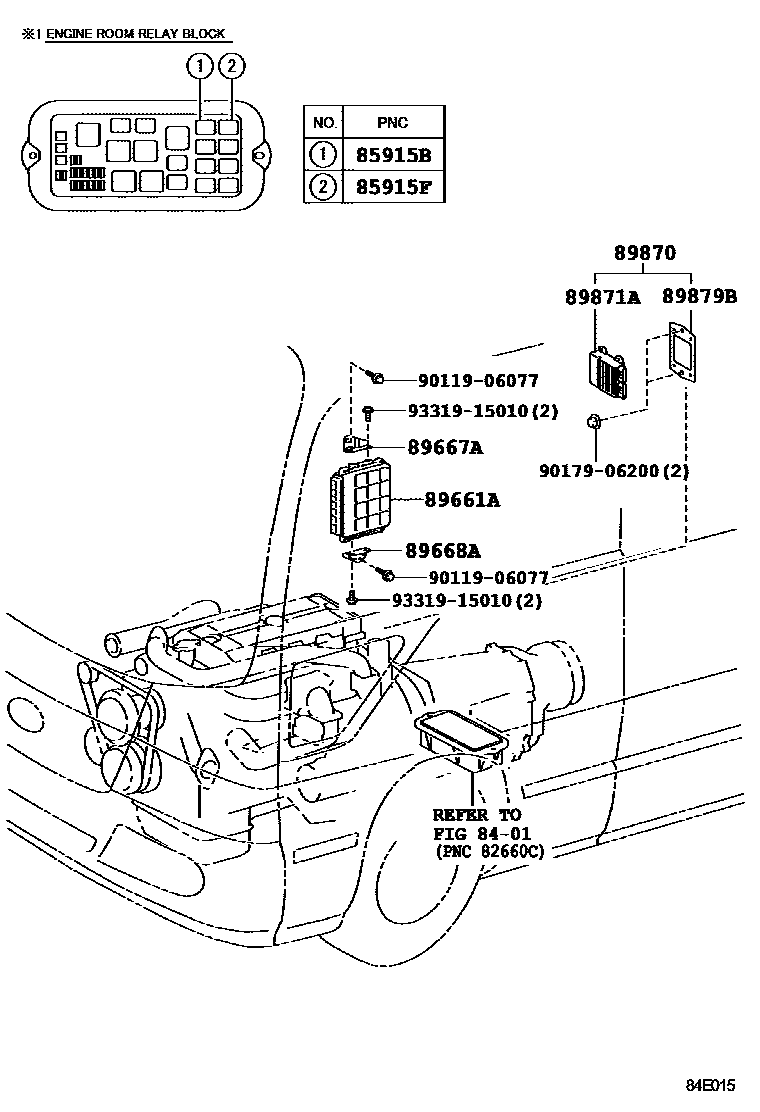

ELECTRONIC CONTROLED DIESEL (ECD)

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85915BRELAY, MAIN (FOR DIESEL TURBO)

main90987-T2005iXZB53201403-201507

85915FRELAY, SPILL VALVE

main90987-T2005iXZB53201403-201507

89661ACOMPUTER, ENGINE CONTROL

main89661-36320iXZB53201403-201507

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-36090iXZB53201403-201507

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-36100iXZB53201403-201507

89870DRIVER ASSY, SPILL VALVE CONTROL

main89870-36040iXZB53201403-201507

89871ADRIVER, INJECTOR

main89871-25010iXZB53201403-201507

89879BBRACKET, INJECTOR DRIVER

main89879-36020iXZB53201403-201507

9011906077

main90119-06077

9017906200

main90179-06200

9331915010

main93319-15010

12 parts on this diagram · 1 diagram in section
