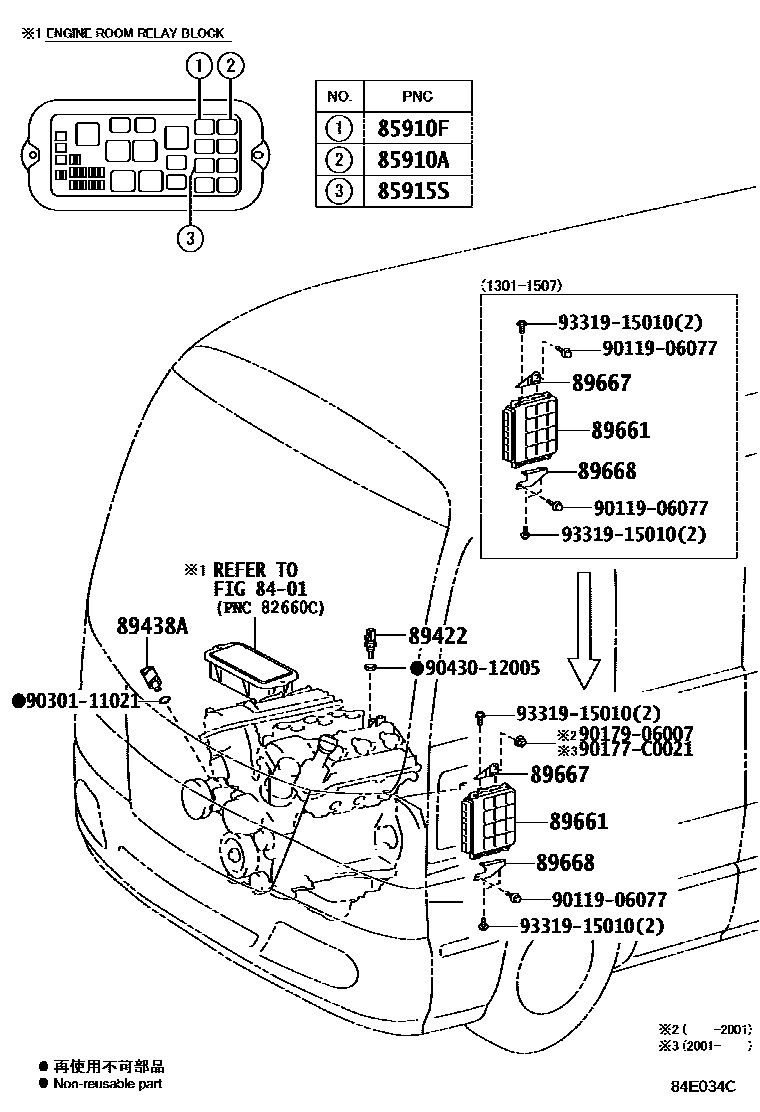

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-T2005iGRB53..LX201301-202412

85910FRELAY, COMPUTER (FOR EFI)

main90987-T2005iGRB53,TRB53201301-202412

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-T2005iGRB53,TRB53..EX,STD201301-202412

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iTRB53201301-201910

main89422-33030iGRB53..EX,STD201301-202412

89438ASWITCH, POWER STEERING OIL PRESSURE

main89438-33010iTRB53201301-201610

main89438-71010iTRB53201611-201910

main89448-34020iGRB53..LX201301-202412

89661COMPUTER, ENGINE CONTROL

main89661-36400iGRB53201801-201901

DENSO

main89661-36400iGRB53201301-201801

main89661-36401iGRB53201901-201911

DENSO

main89661-36410iTRB53201301-201801

main89661-36410iTRB53201801-201901

DENSO

main89661-36411iTRB53201901-201910

DENSO

main89661-36790iGRB53..LX201911-202412

DENSO

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-36080iTRB53201301-201910

main89667-36090iGRB53201301-202412

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-36070iTRB53201301-201910

main89668-36100iGRB53..LX201301-202412

9011906077

main90119-06077

90177C0021

main90177-C0021

9017906007

main90179-06007

9030111021

main90301-11021

9043012005

main90430-12005

9331915010

main93319-15010

15 parts on this diagram · 2 diagrams in section
