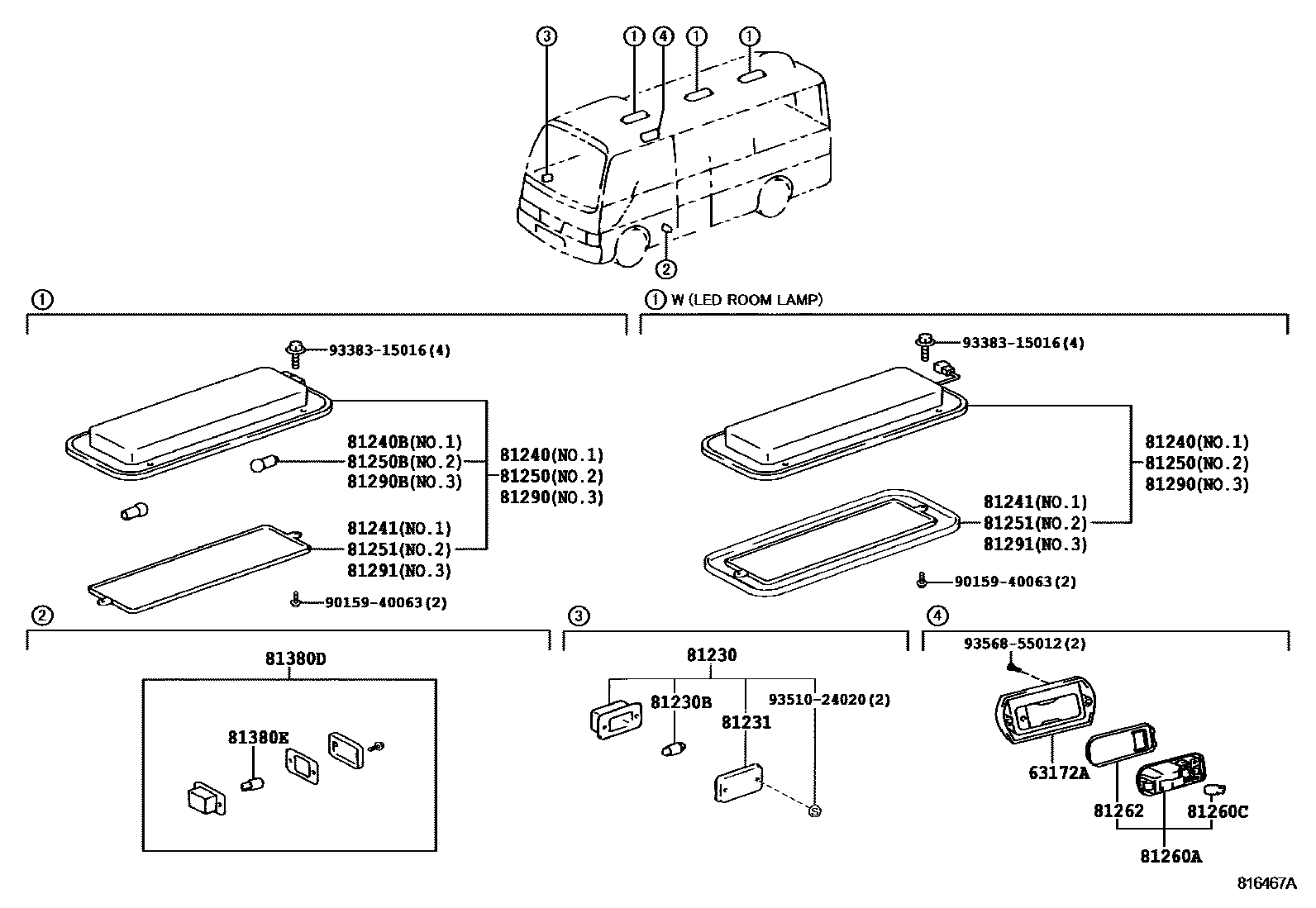

INTERIOR LAMP
63172ABASE, ROOM LAMP
IVORY,TRIM4#
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 5W
81231LENS, COURTESY LAMP
81240LAMP ASSY, ROOM, NO.1
IVORY,TRIM4#
IVORY,TRIM4#
ROOM LAMP-LED(FRONT1,REAR2)
ROOM LAMP-LED(FRONT1,REAR2)
81240BBULB, ROOM LAMP, NO.1
12V 10W
81241LENS, ROOM LAMP, NO.1
ROOM LAMP-LED(FRONT1,REAR2)
ROOM LAMP-LED(FRONT1,REAR2)
81250LAMP ASSY, ROOM, NO.2
IVORY,TRIM4#
IVORY,TRIM4#
ROOM LAMP-LED(FRONT1,REAR2)
ROOM LAMP-LED(FRONT1,REAR2)
81250BBULB, ROOM LAMP, NO.2
12V 10W
81251LENS, ROOM LAMP, NO.2
ROOM LAMP-LED(FRONT1,REAR2)
ROOM LAMP-LED(FRONT1,REAR2)
81260ALAMP ASSY, MAP
IVORY,TRIM4#
81260CBULB(FOR MAP LAMP)
12V 5W
81262LENS, MAP LAMP
81290LAMP ASSY, ROOM, NO.3
IVORY,TRIM4#
IVORY,TRIM4#
ROOM LAMP-LED(FRONT1,REAR2)
ROOM LAMP-LED(FRONT1,REAR2)
81290BBULB, ROOM LAMP, NO.3
12V 10W
81291LENS, ROOM LAMP, NO.3(FOR REAR)
ROOM LAMP-LED(FRONT1,REAR2)
ROOM LAMP-LED(FRONT1,REAR2)
81380DLAMP ASSY, STEP
81380EBULB (FOR STEP LAMP)
9015940063
main90159-40063
9338315016
main93383-15016
9351024020
main93510-24020
9356855012
main93568-55012
22 parts on this diagram · 1 diagram in section
