CENTER STOP LAMP

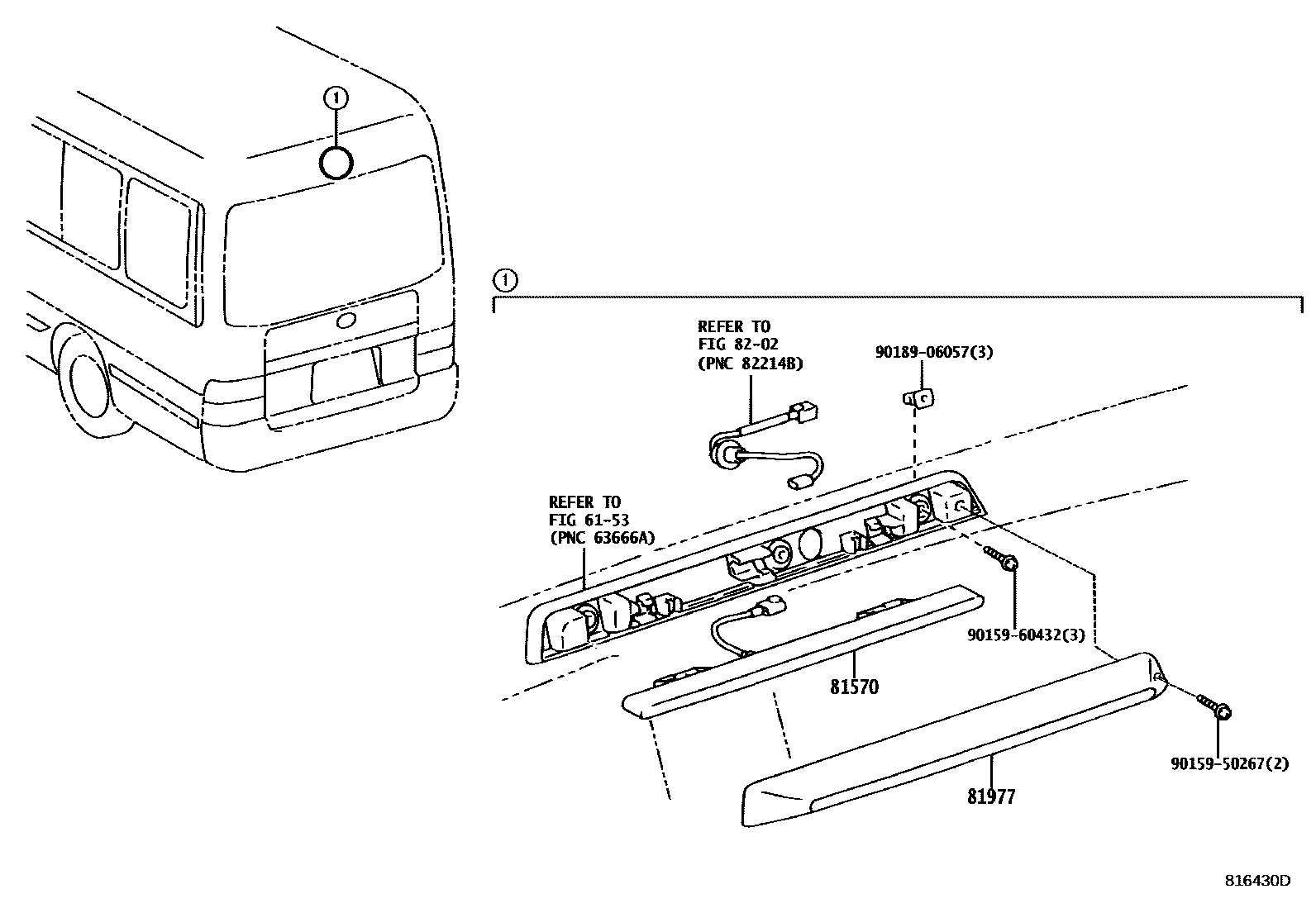

Parts diagram

6153ROOF PANEL & BACK PANEL

→ Go to FIG 61-53

81570LAMP ASSY, CENTER STOP

main81570-0S011i201301-201507

WITH(*HSL & *RUM & *RW & *RWD)

81977COVER, CENTER STOP LAMP

main81977-36010-B0i201301-201507

BLACK,058 ,2DT ,2FU ,2HL; BLACK,058 ,2DT ,2FU ,2HL ,4R4; WITH(*HSL & *RUM & *RW & *RWD),BLACK,058 ,2DT ,2FU ,2HL

8202WIRING & CLAMP

→ Go to FIG 82-02

9015950267

main90159-50267

9015960432

main90159-60432

9018906057

main90189-06057

7 parts on this diagram · 1 diagram in section
