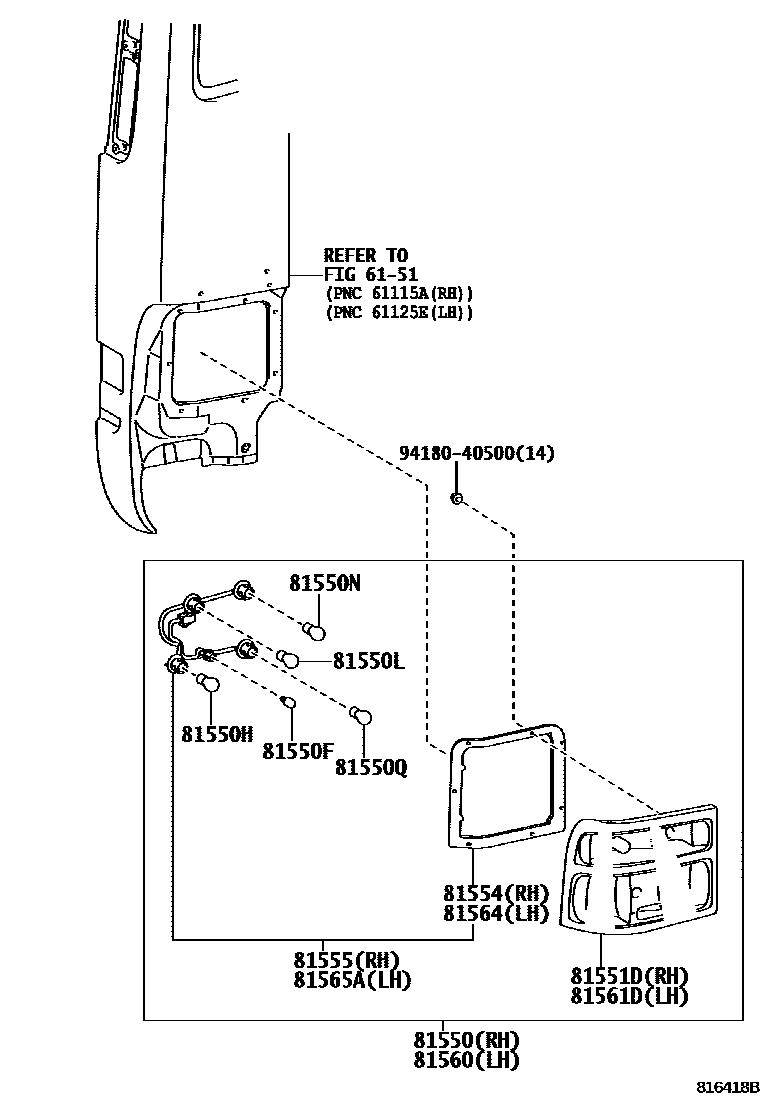

REAR COMBINATION LAMP

6151

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0S030iGRB53,XZB53..EX,LX201301-201507

main81550-0S040iGRB53,TRB53..STD201801

81550FBULB, TAILLAMP

main99132-12050×2iGRB53,TRB53201507-201801

12V 5W

81550HBULB, TAIL & STOP LAMP

main99132-21210×2iGRB53..LX201801-202412

12V 21/5W

81550LBULB, REAR TURN SIGNAL LAMP

main99132-11210×2iGRB53,TRB53,XZB53201301-201507

81550NBULB, BACK UP LAMP

main99132-11210×2iGRB53,TRB53,XZB53201301-201507

81550QBULB, REAR FOG LAMP, NO.1

main99132-11210×2iGRB53,TRB53,XZB53201301-201507

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0S030iGRB53..EX201801

main81551-0S040iGRB53,TRB53,XZB53..STD201301-201507

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-0S030iGRB53,TRB53,XZB53201301-201507

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0S030iGRB53,TRB53,XZB53201301-201507

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0S030iGRB53..EX201801

main81560-0S040iGRB53,TRB53,XZB53..STD201301-201507

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0S030iGRB53..LX201801-202412

main81561-0S040iGRB53,TRB53..STD201507-201801

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-0S030iGRB53,TRB53,XZB53201301-201507

81565ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0S030iGRB53,TRB53,XZB53201301-201507

9418040500

main94180-40500

15 parts on this diagram · 1 diagram in section
