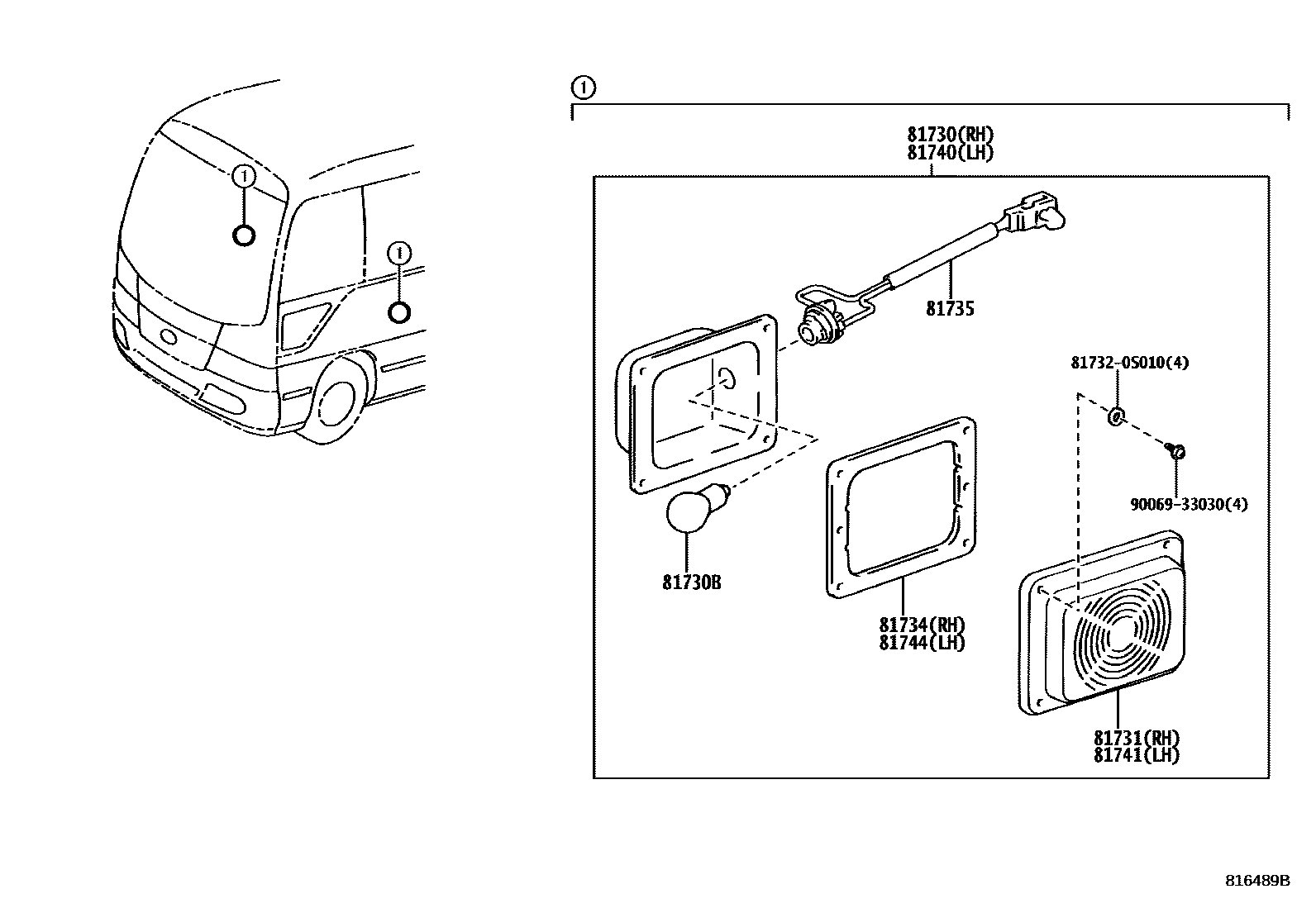

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-0S010iGRB53,TRB53,XZB53201301-201507

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-11210×2iGRB53,TRB53,XZB53201301-201507

12V 21W

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-0S010iGRB53,TRB53,XZB53201301-201507

81734GASKET, SIDE TURN SIGNAL LAMP BODY, RH

main81734-0S010iGRB53,TRB53,XZB53201301-201507

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

main81735-0S010×2iGRB53,TRB53,XZB53201301-201507

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-0S010iGRB53,TRB53,XZB53201301-201507

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81731-0S010iGRB53,TRB53,XZB53201301-201507

81744GASKET, SIDE TURN SIGNAL LAMP BODY, LH

main81734-0S010iGRB53,TRB53,XZB53201301-201507

817320S010GASKET, SIDE TURN SIGNAL LAMP LENS, RH

main81732-0S010

9006933030

main90069-33030

10 parts on this diagram · 1 diagram in section
