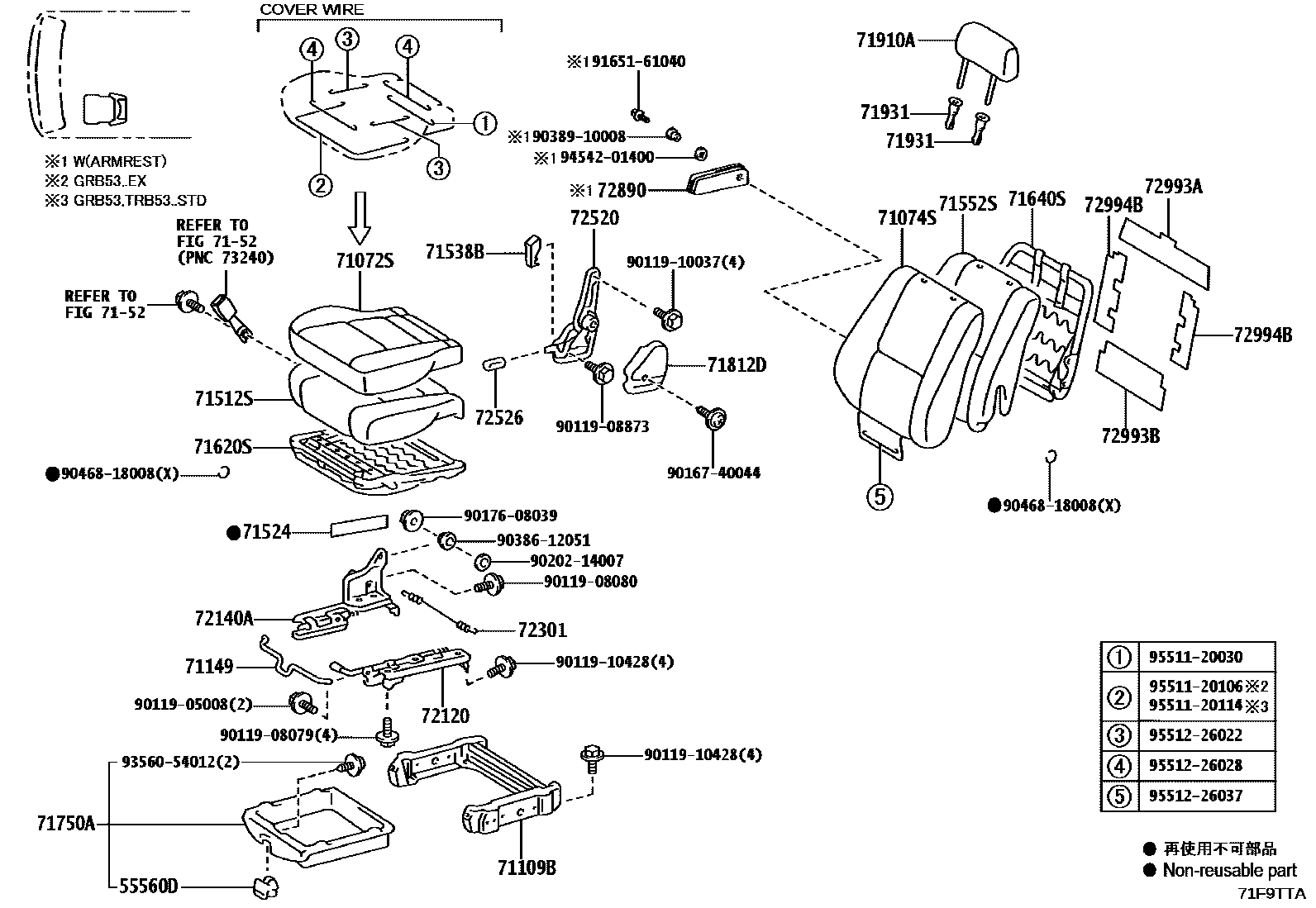

SEAT & SEAT TRACK

0001 1DRIVERS SEAT 0002 1REAR SEAT PATTERN 0003 1REAR SEAT(RH) 0004 1REAR SEAT(LH) 0005 1REAR SEAT-NO.8(FIX SEAT) 0006 1REAT SEAT-NO.8(FOLDING SEAT) 0007 1REAR NO.1 SEAT(RH) 0008 1REAR NO.1 SEAT(RH) 0009 1REAR NO.2 SEAT(RH) 0010 1REAR NO.2 SEAT(RH) 0011 1REAR NO.1 - NO.6 SEAT 0012 1REAR NO.3 - NO.6 SEAT(RH) 0013 1REAR NO.3 - NO.6 SEAT(RH) 0014 1REAR NO.1 - NO.6 SEAT(LH) 0015 1REAR NO.1 - NO.6 SEAT(LH) 0016 1FITTING PARTS 0017 1REAR NO.8 SEAT(RH) 0018 1REAR NO.8 SEAT(LH) 0019 1REAR NO.8 SEAT(FITTING PARTS)

55560DLOCK ASSY, SEAT UNDER TRAY

main72250-36010-E0iGRB53..LX201801-202412

GREIGE,TRIM4#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-0S010-A0iGRB53,TRB53,XZB53..STD201301-201507

IVORY,TRIM4#

main71072-0S020-A0iGRB53,XZB53..EX,LX201301-201507

IVORY,TRIM4#

main71072-0S030-A0iGRB53,TRB53..STD201507-201801

IVORY,TRIM4#

main71072-0S040-A0iGRB53..EX,LX201507-201801

IVORY,TRIM4#

main71072-0S050-A0iGRB53..EX,LX201801-202106

IVORY,TRIM4#

main71072-0S060-A0iGRB53,TRB53..STD201801-202106

IVORY,TRIM4#

main71072-0S080-A0iGRB53..EX202106

IVORY,TRIM4#

main71072-0S090-A0iGRB53..STD202106

IVORY,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-0S010-A0iGRB53,TRB53..STD201507-201801

IVORY,TRIM4#

main71074-0S020-A0iGRB53..EX,LX201801-202106

IVORY,TRIM4#

main71074-0S050-A0iGRB53..LX202106-202412

IVORY,TRIM4#

main71074-0S070-A0iGRB53..STD202106

IVORY,TRIM4#

main71074-36140-A1iGRB53,TRB53,XZB53..STD201301-201507

IVORY,TRIM4#

main71074-36150-A1iGRB53,XZB53..EX,LX201301-201507

IVORY,TRIM4#

main71074-0S030-A0iGRB53,TRB53..20S..STD..CBU201801-202106

REAR ARMREST-WITH, WITHOUT(REAR NO.8 SEAT ARMREST),IVORY,TRIM4#

main71074-0S060-A0iGRB53..STD..CBU202207

REAR ARMREST-WITH, WITHOUT(REAR NO.8 SEAT ARMREST),IVORY,TRIM4#

71109BLEG SUB-ASSY, FRONT SEAT, LH

main71109-0S010-E0iGRB53..LX201801-202412

GREIGE,TRIM4#

71149WIRE, FRONT SEAT CUSHION CONNECTING

main71149-0S010iGRB53,TRB53,XZB53201301-201507

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-0S010iGRB53,TRB53201507-201801

main71502-0S020iGRB53,TRB53201801-202106

main71502-0S030iGRB53..EX,STD202106

7152

71524PAD, FRONT SEAT CUSHION SILENCER, D

main71524-0S010×2iGRB53,TRB53201507-201801

71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

main71538-0S010iGRB53,TRB53..EX,STD201801

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-0S010iGRB53..STD202106

main71552-0S020iGRB53..LX202106-202412

main71552-36020iGRB53,TRB53,XZB53..STD201301-201507

main71552-36030iGRB53..EX,LX201801-202106

REAR ARMREST-WITH, WITHOUT(REAR NO.8 SEAT ARMREST)

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-36030iGRB53..LX201801-202412

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-0S010iGRB53,TRB53,XZB53..STD201301-201507

main71640-0S020iGRB53..LX201801-202412

71750ATRAY ASSY, FRONT SEAT UNDER

main71750-36030-E0iGRB53,TRB53,XZB53201301-201507

GREIGE,TRIM4#

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-0S020-E0iGRB53,TRB53..EX,STD201801

GREIGE,TRIM4#

71910AHEADREST ASSY, FRONT SEAT

main71910-0S010-E0iGRB53,TRB53,XZB53..STD201301-201507

GREIGE,TRIM4#

sub71910-0S050

main71910-0S030-E0iGRB53,TRB53..STD201801-202106

GREIGE,TRIM4#

main71910-0S040-A0iGRB53..EX,LX201507-201801

IVORY,TRIM4#

main71910-0S060-A0iGRB53,XZB53..EX,LX201301-201507

IVORY,TRIM4#

main71910-0S080-A0iGRB53..LX202106-202412

IVORY,TRIM4#

main71910-0S090-A0iGRB53..STD202106

IVORY,TRIM4#

71931SUPPORT, FRONT SEAT HEADREST

main71930-28040-E2iGRB53,TRB53201507-201801

W(LOCK),SANDAL WOOD,TRIM4#

sub71930-60030

main71931-28050-E2iGRB53,TRB53..EX,STD201801

W/O(LOCK),SANDAL WOOD,TRIM4#

72120TRACK ASSY, FRONT SEAT, OUTER LH

main72120-36010iGRB53,TRB53,XZB53201301-201507

72140ATRACK ASSY, FRONT SEAT,INNER LH

main72140-36011iGRB53,TRB53..EX,STD201801

72301WIRE SUB-ASSY, SEAT TRACK EQUALIZING

main72301-0S010iGRB53,TRB53,XZB53201301-201507

72520ADJUSTER ASSY, RECLINING SEATBACK, LH

main72520-0S010iGRB53..LX201801-202412

72526HANDLE, RECLINING ADJUSTER RELEASE, LH

main72525-60030-E2iGRB53,TRB53,XZB53201301-201507

GREIGE,TRIM4#

72890ARMREST ASSY, SEAT, C LH

main72830-0S030-A0iGRB53..EX,LX201507-201801

IVORY,TRIM4#

main72830-0S070-A0iGRB53..EX202106

IVORY,TRIM4#

main72830-36030-A1iGRB53,XZB53..EX,LX201301-201507

IVORY,TRIM4#

main72830-0S040-A0iGRB53,TRB53..20S..STD..CBU201801-202106

REAR ARMREST-WITH, WITHOUT(REAR NO.8 SEAT ARMREST),IVORY,TRIM4#

main72830-0S080-A0iGRB53..20S..STD..CBU202106

REAR ARMREST-WITH, WITHOUT(REAR NO.8 SEAT ARMREST),IVORY,TRIM4#

72993ACOVER, FRONT SEATBACK

main72993-36010iGRB53,TRB53,XZB53201301-201507

72993BCOVER, FRONT SEATBACK, RH

main72993-36020iGRB53,TRB53..EX,STD201801

72994BCOVER, FRONT SEATBACK, LH

main72994-36010×2iGRB53,TRB53,XZB53201301-201507

9011905008

main90119-05008

9011908079

main90119-08079

9011908080

main90119-08080

9011908873

main90119-08873

9011910037

main90119-10037

9011910428

main90119-10428

9016740044

main90167-40044

9017608039

main90176-08039

9020214007

main90202-14007

9038612051

main90386-12051

9038910008

main90389-10008

9046818008

main90468-18008

9165161040

main91651-61040

9356054012

main93560-54012

9454201400

main94542-01400

9551120030

main95511-20030

9551120106

main95511-20106

9551120114

main95511-20114

9551226022

main95512-26022

9551226028

main95512-26028

9551226037

main95512-26037

46 parts on this diagram · 19 diagrams in section
