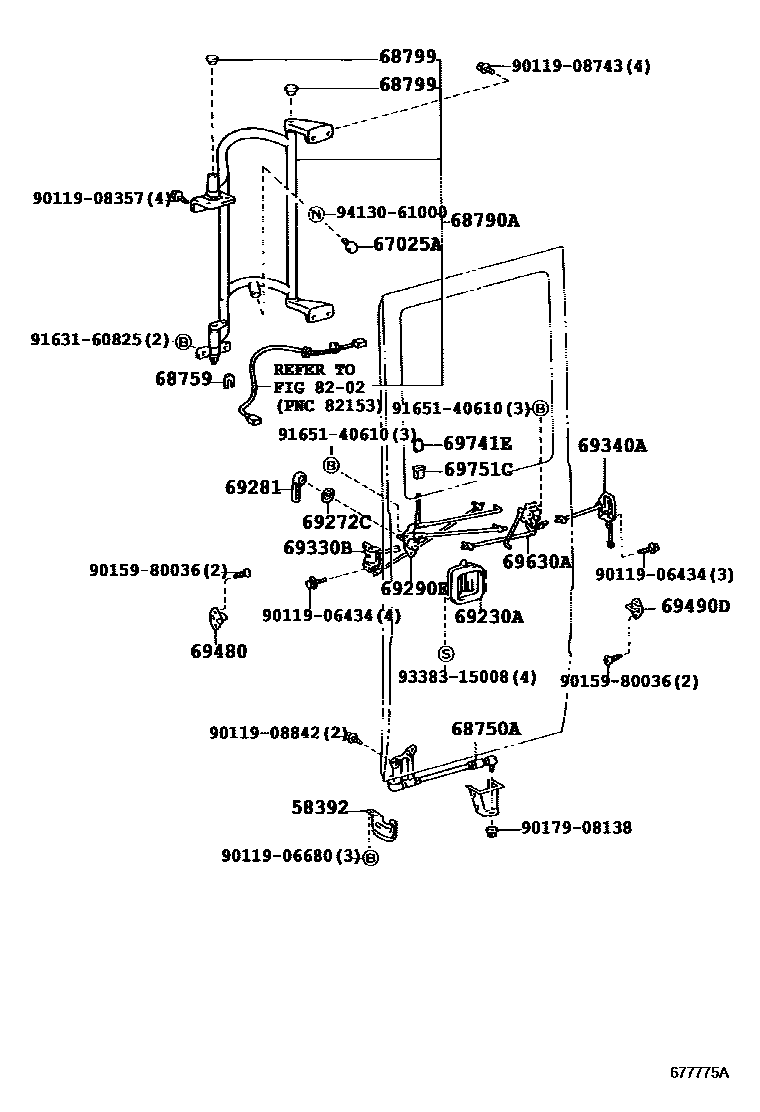

CENTER DOOR LOCK & HINGE
58392MUDGUARD, GLIDE DOOR LINK, FRONT
WITH(AUTO GLIDE DOOR)
67025ASTOPPER SUB-ASSY, SLIDE DOOR, FRONT
WITH(AUTO GLIDE DOOR)
68750ALINK ASSY, GLIDE DOOR
WITH(AUTO GLIDE DOOR)
68759SPACER, GLIDE DOOR ARM
WITH(AUTO GLIDE DOOR)
68790AARM ASSY, GLIDE DOOR
IVORY,TRIM4#
WITH(AUTO GLIDE DOOR),IVORY,TRIM4#
IVORY,TRIM4#
WITH(AUTO GLIDE DOOR),IVORY,TRIM4#
68799CAP, GLIDE DOOR ARM
WITH(AUTO GLIDE DOOR)
69230AHANDLE ASSY, GLIDE DOOR OUTSIDE
WITH(AUTO GLIDE DOOR)
69272CPLATE, GLIDE DOOR INSIDE HANDLE
WITH(AUTO GLIDE DOOR)
69281HANDLE, GLIDE DOOR INSIDE
IVORY,TRIM4#
WITH(AUTO GLIDE DOOR),IVORY,TRIM4#
69290EBASE ASSY, GLIDE DOOR INSIDE HANDLE
WITH(AUTO GLIDE DOOR)
69330BLOCK ASSY, GLIDE DOOR, FRONT
WITH(AUTO GLIDE DOOR)
WITH(AUTO GLIDE DOOR)
69340ALOCK ASSY, GLIDE DOOR, REAR
WITH(AUTO GLIDE DOOR)
WITH(AUTO GLIDE DOOR)
69480PLATE ASSY, GLIDE DOOR LOCK STRIKER, FRONT
WITH(AUTO GLIDE DOOR)
WITH(AUTO GLIDE DOOR)
69490DPLATE ASSY, GLIDE DOOR LOCK STRIKER, REAR
WITH(AUTO GLIDE DOOR)
WITH(AUTO GLIDE DOOR)
69630ACONTROL ASSY, GLIDE DOOR LOCK REMOTE
WITH(AUTO GLIDE DOOR)
WITH(AUTO GLIDE DOOR)
WITH(AUTO GLIDE DOOR)
69741EKNOB, DOOR LOCK CONTROL
69751CHOLDER, DOOR LOCK CONTROL KNOB(FOR GLIDE DOOR)
8202
9011906434
main90119-06434
9011906680
main90119-06680
9011908357
main90119-08357
9011908743
main90119-08743
9011908842
main90119-08842
9015980036
main90159-80036
9017908138
main90179-08138
9163160825
main91631-60825
9165140610
main91651-40610
9338315008
main93383-15008
9413061000
main94130-61000
29 parts on this diagram · 4 diagrams in section
