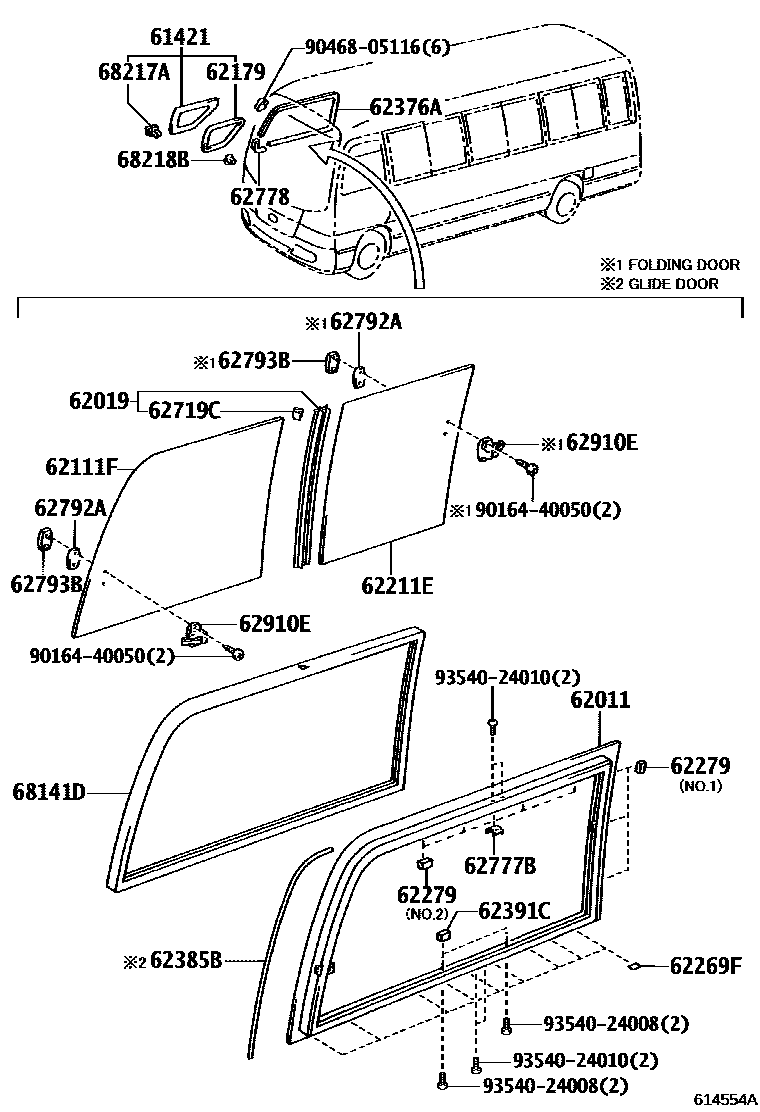

SIDE WINDOW

0001 1 0002 1 0003 1 0004 1SLIDE TYPE 0005 1FIXD TYPE 0006 1SLIDE TYPE 0007 1FIXD TYPE 0008 1SLIDE TYPE 0009 1FIXD TYPE 0010 1SLIDE TYPE 0011 1FIXD TYPE 0012 1SLIDE TYPE 0013 1FIXD TYPE 0014 1

61421GLASS, SIDE LOWER WINDOW

main62109-36071iGRB53..LX201801-202412

*TT,T=3.5,GREEN

62011FRAME SUB-ASSY, FRONT SIDE WINDOW, OUTER RH

main62011-0S010iGRB53,TRB53,XZB53..STD201301-201507

main62011-0S020iGRB53,XZB53..EX,LX201301-201507

main62011-0S030iGRB53,TRB53..STD201507-201801

main62011-0S031iGRB53..STD202106

main62011-0S040iGRB53..20S..STD..CBU201801-202106

WITH(AUTO GLIDE DOOR)

main62011-0S041iGRB53..LX202106-202412

62019FRAME SUB-ASSY, SIDE WINDOW, CENTER RH

main62019-0S010iGRB53,TRB53..STD201507-201801

main62019-0S020iGRB53..20S..STD201507-201801

WITH(AUTO GLIDE DOOR)

62111FGLASS, FRONT SIDE WINDOW, FRONT RH

main62111-0S010iGRB53,TRB53201507-201801

main62111-36071iGRB53,TRB53,XZB53201301-201507

*TT,T=5.0,GREEN

62179DAM, SIDE LOWER WINDOW

main62179-36010iGRB53..LX201801-202412

62211EGLASS, SIDE WINDOW, REAR RH

main62221-0S010iGRB53..LX201801-202412

main62221-36091iGRB53,TRB53,XZB53..STD201301-201507

*TT,T=5.0,GREEN

main62711-36051iGRB53,XZB53..EX,LX201301-201507

*TT,T=5.0,GREEN

62269FFILM, SIDE WINDOW FRAME

main62269-90K01×9iGRB53,TRB53,XZB53201301-201507

62279SPACER, SIDE WINDOW FRAME, UPPER

main62279-0S010×3iGRB53,TRB53..EX,STD201801

NO.1

main62279-0S020×3iGRB53,TRB53..EX,STD201801

NO.2

62376ACLIP, SIDE WINDOW, NO.2

main62376-0S010-A0iGRB53,TRB53,XZB53201301-201507

IVORY,TRIM4#

main62376-0S020-A0iGRB53,TRB53201507-201801

IVORY,TRIM4#

62385BSEAL, SIDE WINDOW, NO.5

main62385-0S020iGRB53,XZB53..EX,LX201301-201507

62391CSTOPPER, SIDE WINDOW, NO.1 RH

main62391-0S010×2iGRB53..LX202303-202412

main62391-36010iGRB53,TRB53201507-201801

62719CPACKING, SIDE FRONT WINDOW

main62746-0S010iGRB53,TRB53,XZB53201301-201507

62777BCAP, SIDE WINDOW CENTER SASH

main62777-36021iGRB53,TRB53,XZB53201301-201507

62778CAP, SIDE WINDOW FRONT SASH

main62778-0S010-A0iGRB53,TRB53..EX,STD201801

IVORY,TRIM4#

main62778-36010-A1iGRB53,TRB53,XZB53201301-201507

IVORY,TRIM4#

62792APACKING, SIDE WINDOW LOCK, RH

main62792-95A00iGRB53,XZB53..EX,LX201301-201507

62793BRETAINER, SIDE WINDOW LOCK, RH

main62793-95J00iGRB53,XZB53..EX,LX201301-201507

62910ELOCK ASSY, SIDE WINDOW

main62910-95702iGRB53,XZB53..EX,LX201301-201507

68141DRUN, SIDE FRONT WINDOW, RH

main68141-0S010iGRB53,TRB53,XZB53..STD201410-201507

main68141-0S020iGRB53,XZB53..EX,LX201410-201507

main68141-0S030iGRB53,TRB53201507-201801

main68141-0S041iGRB53..EX,STD202106

main68141-36012iGRB53,TRB53,XZB53..STD201301-201410

main68141-36022iGRB53,XZB53..EX,LX201301-201410

68217APIN, SIDE WINDOW , NO.1

main68217-36010iGRB53,TRB53,XZB53201301-201507

BLACK

main68217-36020iGRB53,TRB53201507-201801

WHITE

main68217-36030iGRB53,TRB53..EX,STD201801

ORANGE

68218BBUSH, SIDE WINDOW

main68218-36010×3iGRB53,TRB53,XZB53201301-201507

9016440050

main90164-40050

9046805116

main90468-05116

9354024008

main93540-24008

9354024010

main93540-24010

24 parts on this diagram · 14 diagrams in section
