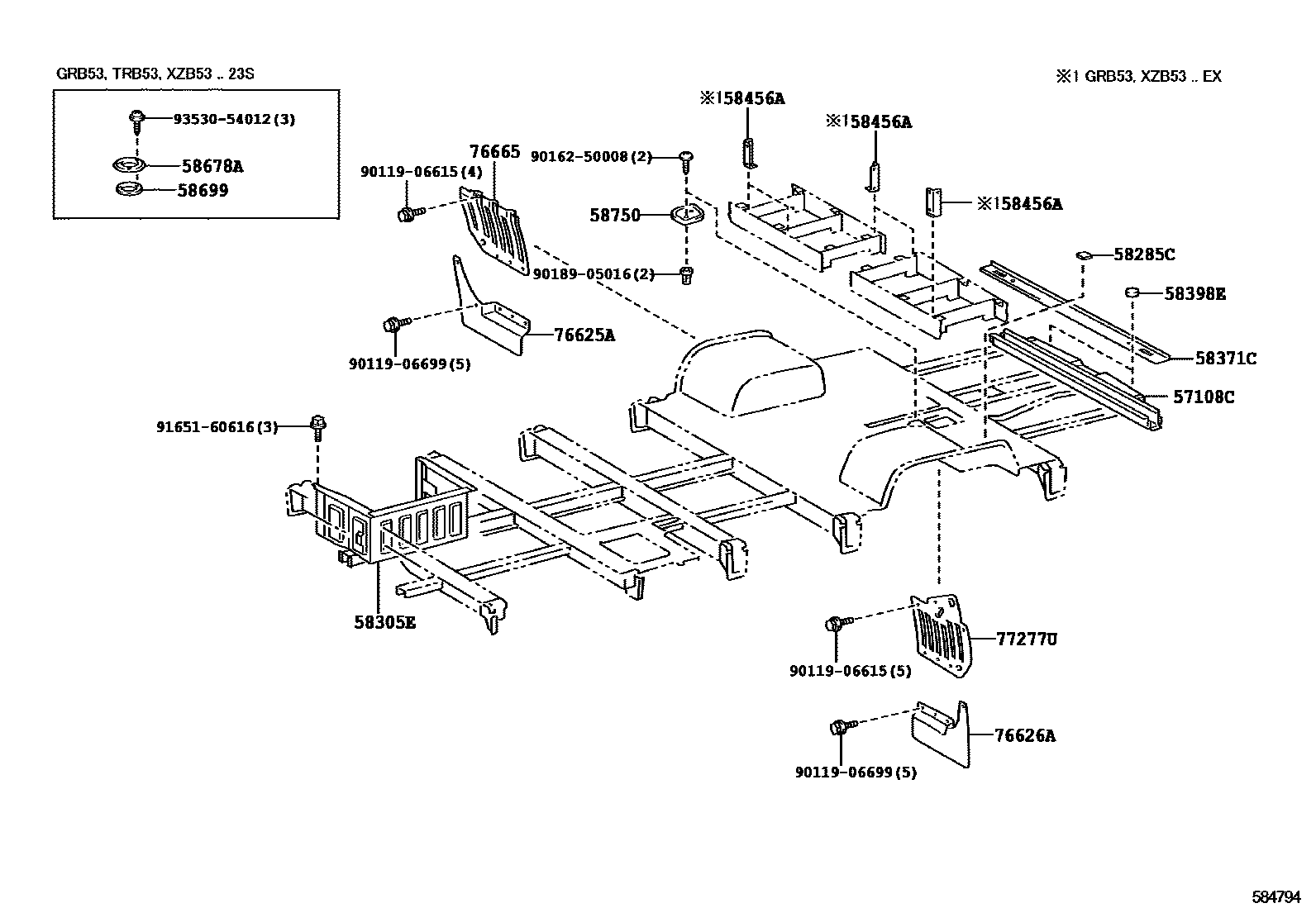

REAR FLOOR PANEL & REAR FLOOR MEMBER
57108CCROSSMEMBER SUB-ASSY, FLOOR, NO.8
58285CCOVER, REAR FLOOR HOLE
58305EPANEL SUB-ASSY, CENTER DOOR STEP
WITH(AUTO GLIDE DOOR)
WITH(AUTO GLIDE DOOR)
58371CPANEL, BODY LOWER BACK, UPPER
58398ECOVER, FLOOR UNDER, NO.1
58456APANEL, REAR FLOOR BOARD, NO.2 A
58678APLATE, REAR FLOOR MAT DRIP
GREIGE,TRIM4#,FLOOR BOARD, NO.3,FLOOR BOARD, NO.6
58699PACKING, REAR FLOOR MAT DRIP
FLOOR BOARD, NO.3,FLOOR BOARD, NO.6
58750COVER ASSY, FUEL TANK INSPECTION HOLE
GREIGE,TRIM4#
76625AMUDGUARD, REAR BODY, RH
76626AMUDGUARD, REAR BODY, LH
76665BRACE, REAR MUDGUARD
77277UPROTECTOR, FUEL TANK FILLER PIPE
9011906615
main90119-06615
9011906699
main90119-06699
9016250008
main90162-50008
9018905016
main90189-05016
9165160616
main91651-60616
9353054012
main93530-54012
19 parts on this diagram · 11 diagrams in section
