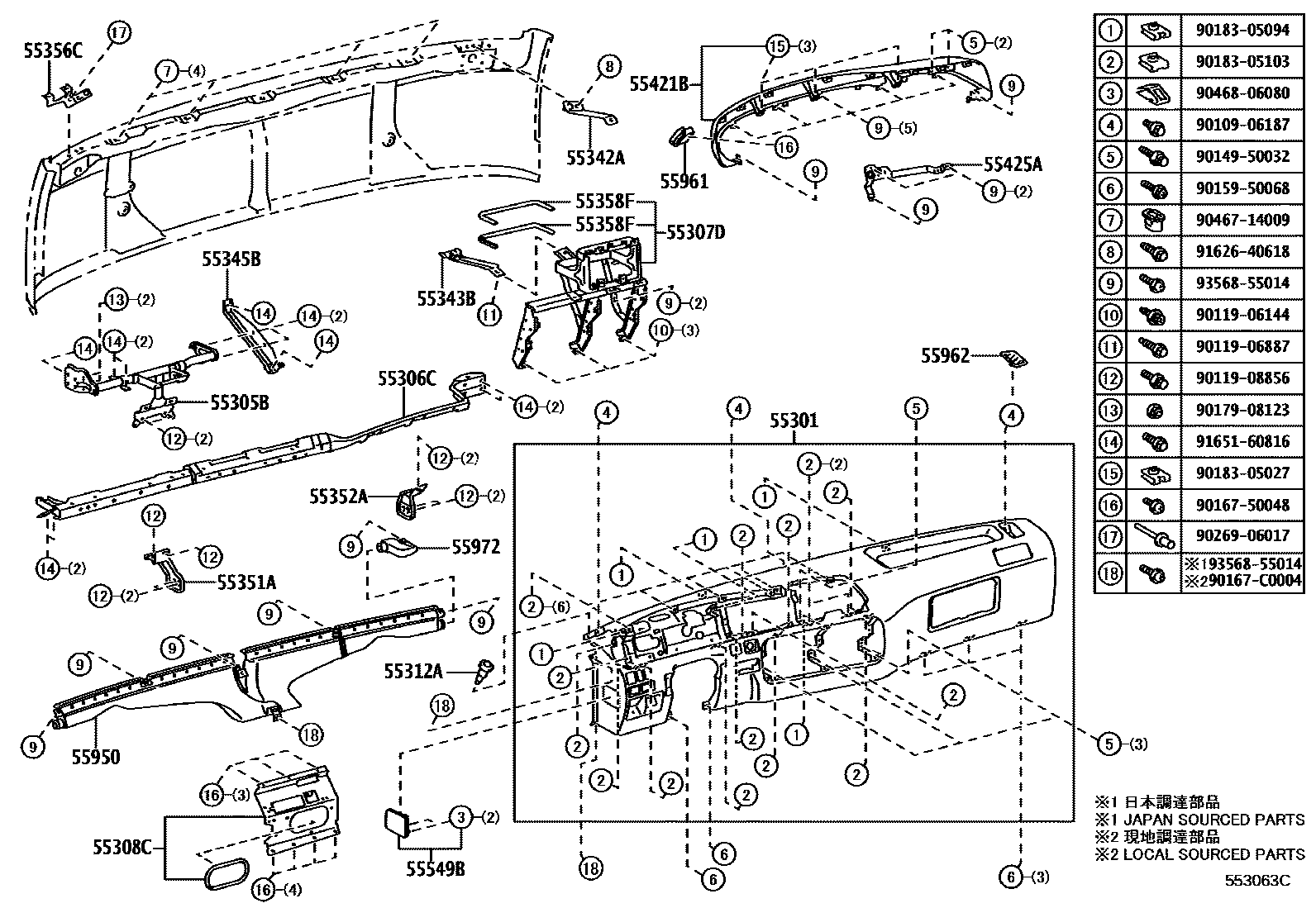

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55301-0S011-E0iGRB53,TRB53,XZB53201301-201507

GREIGE,TRIM4#

main55301-0S020-E0iGRB53,TRB53201507-201511

GREIGE,TRIM4#

main55301-0S021-E0iGRB53,TRB53201512-201911

GREIGE,TRIM4#

main55301-0S022-E0iGRB53201911-202106

GREIGE,TRIM4#

main55301-0S023-E0iGRB53..LX202106-202412

GREIGE,TRIM4#

55305BREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.1

main55305-0S010iGRB53,TRB53..STD201507-201801

main55305-0S020iGRB53..LX202008-202412

main55305-36022iGRB53,TRB53,XZB53..STD201301-201507

main55305-36040iGRB53,TRB53..STD..CBU201301-201910

STEERING COLUMN-WITH(TILT & TELESCOPIC)

main55305-36041iGRB53201911-202008

55306CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.2

main55306-0S010iGRB53,TRB53201507-201801

main55306-0S010iGRB53..EX,LX201801-201910

STEERING COLUMN-WITH(TILT & TELESCOPIC)

main55306-0S011iGRB53..EX,STD201911-202412

main55306-36045iGRB53,TRB53,XZB53201301-201507

55307DREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.3

main55307-36030iGRB53,TRB53,XZB53201301-202412

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-36022iGRB53,TRB53201301-201910

main55308-36023iGRB53..LX201911-202412

55312ACLIP, INSTRUMENT PANEL

main90467-07071-E3iGRB53,TRB53,XZB53201301-201507

GREIGE,TRIM4#

55342ABRACE, INSTRUMENT PANEL TO COWL, NO.2

main55342-36040iGRB53,TRB53,XZB53201301-202412

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-0S010iGRB53,TRB53..EX,STD201507-202412

main55343-36010iGRB53,TRB53201301-201308

main55343-36020iGRB53,TRB53,XZB53201309-201507

55345BBRACE, INSTRUMENT PANEL TO COWL, NO.4

main55345-36010iGRB53,TRB53..EX,STD201301-202412

55351ABRACE, INSTRUMENT PANEL TO FLOOR

main55351-36020iGRB53,TRB53,XZB53201301-201812

main55351-36021iGRB53..LX201901-202412

55352ABRACE, INSTRUMENT PANEL TO FLOOR, NO.2

main55352-36020iGRB53,TRB53,XZB53201301-201812

main55352-36021iGRB53..LX201901-202412

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-0S010iGRB53,TRB53201507-202412

55358FPROTECTOR, EDGE

main55358-36030iGRB53,TRB53,XZB53201301-202412

55421BPANEL, INSTRUMENT CLUSTER FINISH, UPPER

main55421-0S010-E0iGRB53,TRB53,XZB53201301-201511

GREIGE,TRIM4#

main55421-0S011-E0iGRB53,TRB53201512-202106

GREIGE,TRIM4#

main55421-0S012-E0iGRB53202106-202203

GREIGE,TRIM4#

main55421-0S030-E0iGRB53..LX202203-202412

GREIGE,TRIM4#

55425ABRACKET, METER HOOD SET

main55425-0S010iGRB53,TRB53,XZB53201301-202412

55549BCOVER, INSTRUMENT PANEL HOLE, NO.2

main55549-0S010-E0iGRB53,TRB53,XZB53201301-202412

GREIGE,TRIM4#

55950NOZZLE ASSY, DEFROSTER

main55950-0S010iGRB53,TRB53,XZB53201301-202412

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-0S010-E0iGRB53,TRB53,XZB53201301-202412

GREIGE,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-36020-E0iGRB53,TRB53,XZB53201301-202412

GREIGE,TRIM4#

55972DUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-36020iGRB53,TRB53,XZB53201301-202412

9010906187

main90109-06187

9011906144

main90119-06144

9011906887

main90119-06887

9011908856

main90119-08856

9014950032

main90149-50032

9015950068

main90159-50068

9016750048

main90167-50048

90167C0004

main90167-C0004

9017908123

main90179-08123

9018305027

main90183-05027

9018305094

main90183-05094

9018305103

main90183-05103

9026906017

main90269-06017

9046714009

main90467-14009

9046806080

main90468-06080

9162640618

main91626-40618

9165160816

main91651-60816

9356855014

main93568-55014

38 parts on this diagram · 4 diagrams in section
