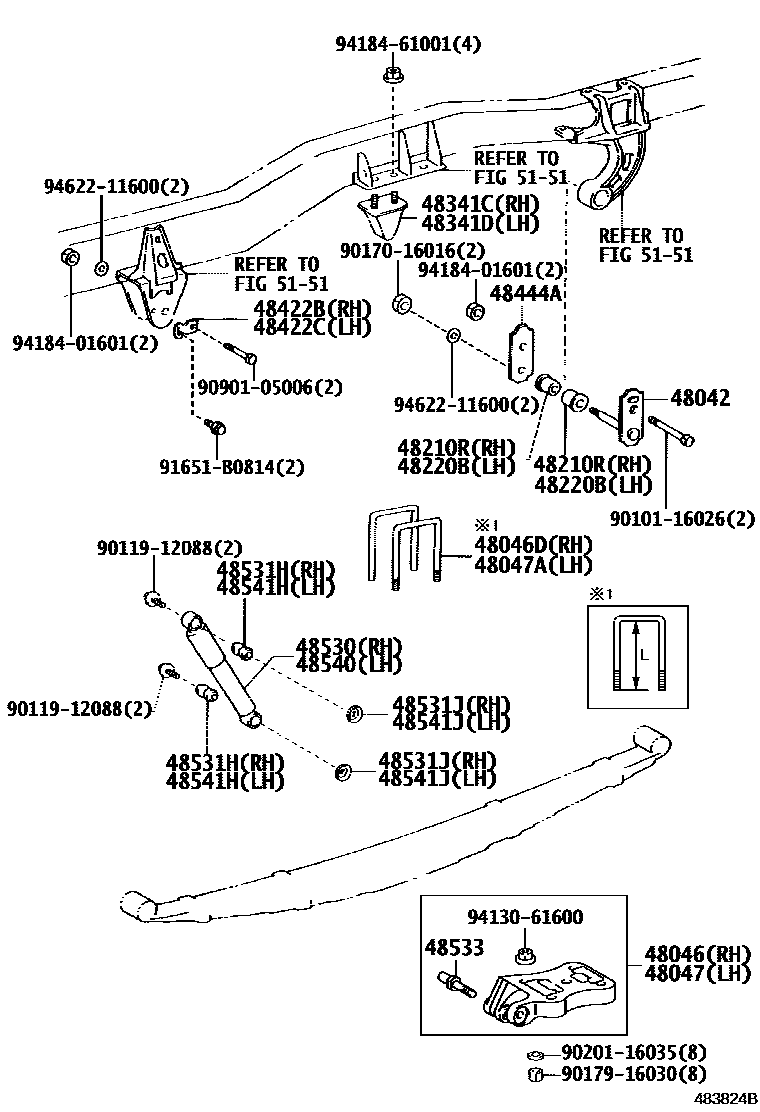

REAR SPRING & SHOCK ABSORBER

0001 1 0002 12-LEAF 0003 13-LEAF 0004 1STABILIZER

48042SHACKLE SUB-ASSY, REAR SPRING, NO.2

main48041-36090×2iGRB53..LX201801-202412

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-0S010iGRB53,TRB53201507-201801

48046DBOLT, U(FOR REAR SPRING RH)

main90117-16042×2iGRB53,TRB53..EX,STD201801

L=200

main90117-16085×2iGRB53..EX201507-201801

PREMIUM VIP PACKAGE

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-0S010iGRB53,TRB53,XZB53201301-201507

48047ABOLT, U(FOR REAR SPRING LH)

main90117-16042×2iGRB53,TRB53,XZB53201301-201507

main90117-16085×2iGRB53,XZB53..EX201301-201507

PREMIUM VIP PACKAGE

48210SPRING ASSY, REAR RH

main48210-3C210iGRB53..LX201801-202412

2-LEAF

main48210-36A40iGRB53..EX201507-201801

3-LEAF,PREMIUM VIP PACKAGE

48210RBUSH(FOR REAR SPRING SHACKLE LOWER RH)

main90385-23006×2iGRB53,TRB53,XZB53201301-201507

48220SPRING ASSY, REAR LH

main48210-3C220iGRB53,TRB53..EX,STD201801

2-LEAF

main48210-36A50iGRB53..EX201801

3-LEAF,PREMIUM VIP PACKAGE

48220BBUSH(FOR REAR SPRING SHACKLE LOWER LH)

main90385-23006×2iGRB53,TRB53201507-201801

48341CBUMPER, REAR SPRING, NO.2 RH

main48306-36100iGRB53,TRB53,XZB53201301-201507

main48306-36090iGRB53,XZB53..EX201301-201507

PREMIUM VIP PACKAGE

48341DBUMPER, REAR SPRING, NO.2 LH

main48306-36100iGRB53,TRB53..EX,STD201801

main48306-36090iGRB53..EX201507-201801

PREMIUM VIP PACKAGE

48422BSUPPORT, REAR SPRING PIN, RH

main48422-37010iGRB53,TRB53,XZB53201301-201507

48422CSUPPORT, REAR SPRING PIN, LH

main48422-37010iGRB53,TRB53,XZB53201301-201507

48444APLATE, REAR SPRING SHACKLE, INNER

main48444-36090×2iGRB53,TRB53,XZB53201301-201507

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-0S010iGRB53,TRB53,XZB53201301-201507

MARK 48531-0S010

main48531-0S011iGRB53..LX201904-202412

MARK 48531-0S011

main48531-0S020iGRB53..EX201507-201801

MARK 48531-0S020,PREMIUM VIP PACKAGE

main48531-0S021iGRB53..EX201904

MARK 48531-0S021,PREMIUM VIP PACKAGE

48531HBUSH(FOR REAR SHOCK ABSORBER RH)

main90385-19012×2iGRB53,TRB53,XZB53201301-201507

48531JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH

main90948-03011×2iGRB53,TRB53201507-201801

48533PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH

main48522-37030×2iGRB53,TRB53..EX,STD201801

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-0S010iGRB53,TRB53,XZB53201301-201507

MARK 48531-0S010

main48531-0S011iGRB53,TRB53..EX,STD201904

MARK 48531-0S011

main48531-0S020iGRB53..EX201801-201903

MARK 48531-0S020,PREMIUM VIP PACKAGE

main48531-0S021iGRB53..EX201904

MARK 48531-0S021,PREMIUM VIP PACKAGE

48541HBUSH(FOR REAR SHOCK ABSORBER LH)

main90385-19012×2iGRB53,TRB53,XZB53201301-201507

48541JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH

main90948-03011×2iGRB53,TRB53,XZB53201301-201507

5151

9010116026

main90101-16026

9011912088

main90119-12088

9017016016

main90170-16016

9017916030

main90179-16030

9020116035

main90201-16035

9090105006

main90901-05006

91651B0814

main91651-B0814

9413061600

main94130-61600

9418401601

main94184-01601

9418461001

main94184-61001

9462211600

main94622-11600

33 parts on this diagram · 4 diagrams in section
