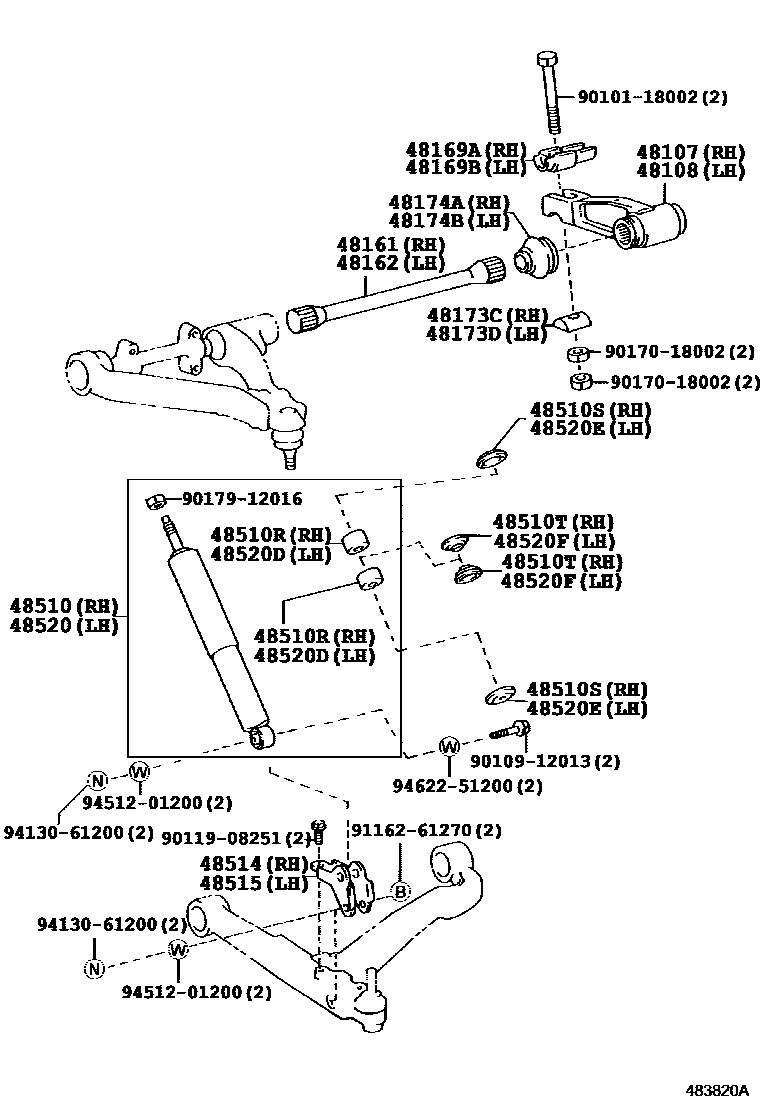

FRONT SPRING & SHOCK ABSORBER
48107ARM SUB-ASSY, ANCHOR, RH
48108ARM SUB-ASSY, ANCHOR, LH
48161SPRING, TORSION BAR, RH
48162SPRING, TORSION BAR, LH
48169ASWIVEL, ANCHOR ARM, RH
48169BSWIVEL, ANCHOR ARM, LH
48173CSEAT, ANCHOR ARM ADJUSTER, RH
48173DSEAT, ANCHOR ARM ADJUSTER, LH
48174ACOVER, TORSION BAR DUST, RH
48174BCOVER, TORSION BAR DUST, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48511-0S010
MARK 48511-0S011
MARK 48511-0S020,PREMIUM VIP PACKAGE
MARK 48511-0S021,PREMIUM VIP PACKAGE
48510RCUSHION, FRONT SHOCK ABSORBER, NO.1 RH
48510SRETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 RH
48510TRETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 RH
48514BRACKET, FRONT SHOCK ABSORBER, LOWER RH
48515BRACKET, FRONT SHOCK ABSORBER, LOWER LH
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48511-0S010
MARK 48511-0S011
MARK 48511-0S020,PREMIUM VIP PACKAGE
MARK 48511-0S021,PREMIUM VIP PACKAGE
48520DCUSHION, FRONT SHOCK ABSORBER, NO.1 LH
48520ERETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 LH
48520FRETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 LH
9010118002
main90101-18002
9010912013
main90109-12013
9011908251
main90119-08251
9017018002
main90170-18002
9017912016
main90179-12016
9116261270
main91162-61270
9413061200
main94130-61200
9451201200
main94512-01200
9462251200
main94622-51200
29 parts on this diagram · 2 diagrams in section
