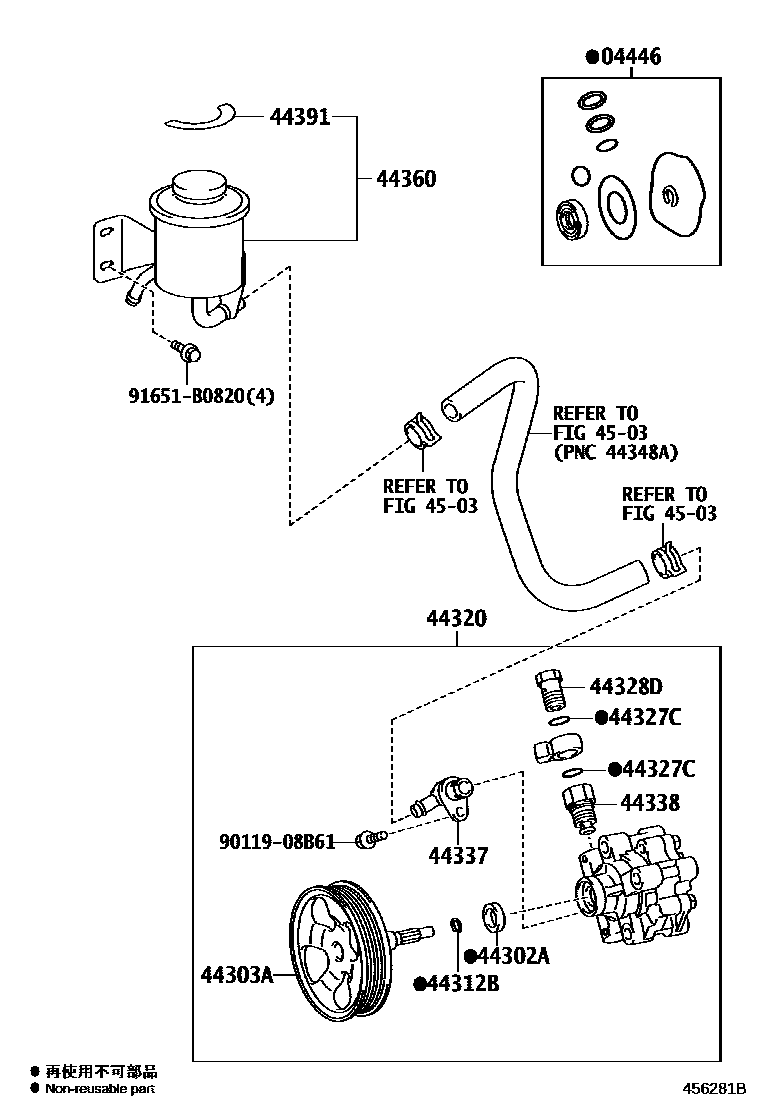

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1

04446GASKET KIT, POWER STEERING PUMP

main04446-35080iGRB53201301-202412

main04446-60130iXZB53201403-201507

44302ASEAL, OIL, NO.1(FOR VANE PUMP HOUSING)

main90311-15012iGRB53..EX,STD201301-202412

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-28010iTRB53201301-201910

main44303-60020iGRB53..EX,STD201301-202412

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iGRB53201301-202412

44320PUMP ASSY, VANE

main44310-36310iXZB53201403-201507

main44310-36320iTRB53201301-201910

main44310-36330iGRB53201301-202412

44327CGASKET, VANE PUMP HOUSING

main44327-12040iGRB53201301-202412

44328DBOLT(FOR VANE PUMP HOUSING END)

main96341-41603iGRB53201301-202412

44337UNION, POWER STEERING SUCTION PORT

main44337-60230iGRB53201301-202412

44338UNION, PRESSURE PORT

main44338-36020iGRB53..LX201301-202412

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-36361iTRB53201301-201910

main44360-36450iXZB53201403-201507

main44360-36460iGRB53..LX201301-202412

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-36040iGRB53,TRB53,XZB53201301-202412

4503

9011908B61

main90119-08B61

91651B0820

main91651-B0820

14 parts on this diagram · 3 diagrams in section
