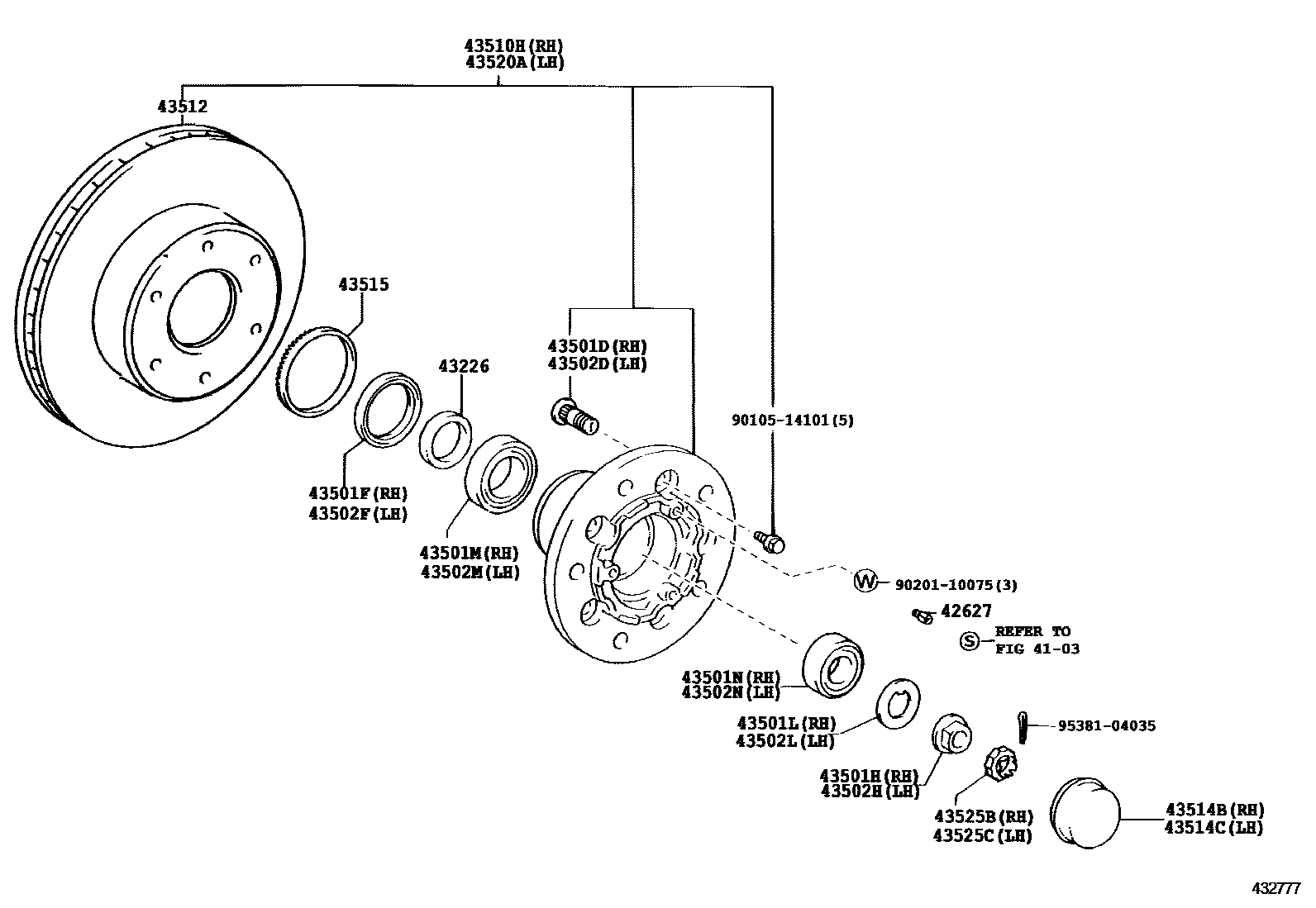

FRONT AXLE HUB
4103
42627BOLT, FRONT WHEEL CAP SET
43226SPACER, STEERING KNUCKLE
43501DBOLT, HUB (FOR FRONT AXLE RH)
43501FSEAL, OIL (FOR FRONT AXLE HUB RH)
43501HNUT (FOR FRONT AXLE SHAFT RH)
43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)
43501MBEARING (FOR FRONT AXLE HUB INNER RH)
43501NBEARING (FOR FRONT AXLE HUB OUTER RH)
43502DBOLT, HUB (FOR FRONT AXLE LH)
43502FSEAL, OIL (FOR FRONT AXLE HUB LH)
43502HNUT (FOR FRONT AXLE SHAFT LH)
43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)
43502MBEARING (FOR FRONT AXLE HUB INNER LH)
43502NBEARING (FOR FRONT AXLE HUB OUTER LH)
43510HHUB & DISC(DRUM) ASSY, FRONT AXLE, RH
43512DISC, FRONT
43514BCAP, FRONT AXLE HUB GREASE, RH
43514CCAP, FRONT AXLE HUB GREASE, LH
43515ROTOR, SKID CONTROL, FRONT
43520AHUB & DISC(DRUM) ASSY, FRONT AXLE, LH
43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH
43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH
9010514101
main90105-14101
9020110075
main90201-10075
9538104035
main95381-04035
26 parts on this diagram · 1 diagram in section
