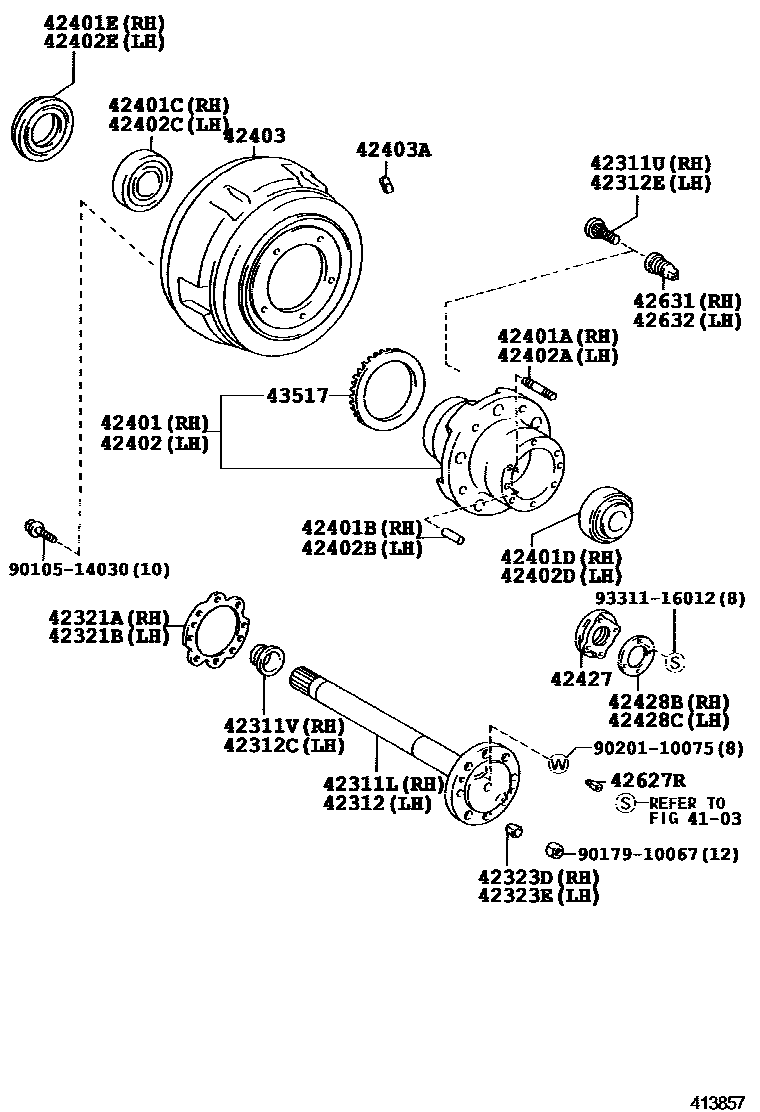

REAR AXLE SHAFT & HUB

0001 1 0002 1

4103

42311LSHAFT, REAR AXLE, RH

main42311-36230iGRB53,TRB53,XZB53201301-201507

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02071×5iGRB53,TRB53,XZB53201301-201507

42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)

main90310-38033iGRB53,TRB53,XZB53201301-201507

42312SHAFT, REAR AXLE, LH

main42311-36230iGRB53,TRB53,XZB53201301-201507

42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)

main90310-38033iGRB53,TRB53,XZB53201301-201507

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02072×5iGRB53,TRB53,XZB53201301-201507

42321AGASKET, REAR AXLE SHAFT, RH

main42321-37020iGRB53,TRB53,XZB53201301-201507

42321BGASKET, REAR AXLE SHAFT, LH

main42321-37020iGRB53,TRB53,XZB53201301-201507

42323WASHER, CONE (FOR REAR AXLE SHAFT)

main42323-36010×12iGRB53..LX201911-202412

42323DWASHER, CONE (FOR REAR AXLE SHAFT RH)

main42323-36010×6iGRB53,TRB53,XZB53201301-201507

42323EWASHER, CONE (FOR REAR AXLE SHAFT LH)

main42323-36010×6iGRB53,TRB53,XZB53201301-201507

42401HUB, REAR AXLE, RH

main42407-36040iGRB53,TRB53,XZB53201301-201507

main42430-39685iGRB53..LX201911-202412

42401ABOLT, STUD (FOR REAR AXLE HUB RH)

main90116-10191×6iGRB53,TRB53,XZB53201301-201507

42401BPIN, STRAIGHT (FOR REAR AXLE HUB RH)

main90250-10055×2iGRB53,TRB53,XZB53201301-201507

42401CBEARING (FOR REAR AXLE HUB INNER RH)

main90366-60012iGRB53,TRB53,XZB53201301-201507

42401DBEARING (FOR REAR AXLE HUB OUTER RH)

main90366-55054iGRB53,TRB53,XZB53201301-201507

42401ESEAL, OIL (FOR REAR AXLE HUB RH)

main90311-78001iGRB53,TRB53,XZB53201301-201507

42402HUB, REAR AXLE, LH

main42408-36040iGRB53,TRB53,XZB53201301-201507

main42430-39695iGRB53..LX201911-202412

42402ABOLT, STUD (FOR REAR AXLE HUB LH)

main90116-10191×6iGRB53,TRB53,XZB53201301-201507

42402BPIN, STRAIGHT (FOR REAR AXLE HUB LH)

main90250-10055×2iGRB53,TRB53,XZB53201301-201507

42402CBEARING (FOR REAR AXLE HUB INNER LH)

main90366-60012iGRB53,TRB53,XZB53201301-201507

42402DBEARING (FOR REAR AXLE HUB OUTER LH)

main90366-55054iGRB53,TRB53,XZB53201301-201507

42402ESEAL, OIL (FOR REAR AXLE HUB LH)

main90311-78001iGRB53..LX201801-202412

42403DRUM SUB-ASSY, REAR BRAKE

main42431-36180×2iTRB53201801-201910

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01511iGRB53,TRB53201507-201801

40G

main90937-01512iGRB53,TRB53201507-201801

50G

main90937-01513iTRB53201801-201910

60G

42427NUT, REAR AXLE BEARING LOCK

main42427-36060×2iGRB53,TRB53201507-201801

42428PLATE, REAR AXLE LOCK NUT

main42428-36040×2iGRB53..LX201911-202412

42428BPLATE, REAR AXLE LOCK NUT, RH

main42428-36040iGRB53,TRB53,XZB53201301-201507

42428CPLATE, REAR AXLE LOCK NUT, LH

main42428-36040iGRB53,TRB53,XZB53201301-201507

42627RBOLT, REAR WHEEL CAP SET

main42627-36020×4iGRB53,TRB53,XZB53201301-201507

42631BOLT, DOUBLE WHEEL STOP, RH

main42631-55031×5iGRB53,TRB53,XZB53201301-201507

42632BOLT, DOUBLE WHEEL STOP, LH

main42632-55031×5iGRB53,TRB53,XZB53201301-201507

43517ROTOR, SKID CONTROL, REAR

main43517-37010iTRB53,XZB53201301-201507

main43517-37040×2iGRB53..LX201911-202412

9010514030

main90105-14030

9017910067

main90179-10067

9020110075

main90201-10075

9331116012

main93311-16012

38 parts on this diagram · 2 diagrams in section
