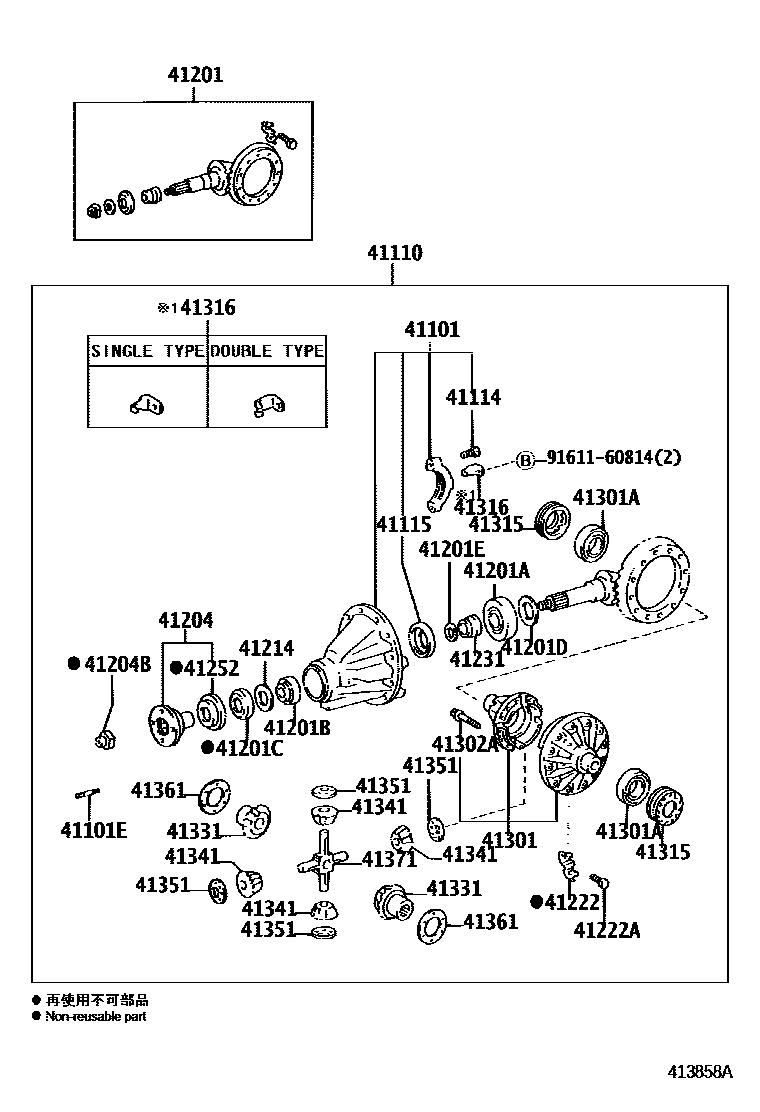

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101EBOLT (FOR REAR DIFFERENTIAL CARRIER)
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=43:7=6.142
*FGR=43:8=5.375
*FGR=43:8=5.375
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41115RING, DIFFERENTIAL OIL STORAGE
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=43:7=6.142
*FGR=43:8=5.375
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=1.05
T=1.075
T=1.10
T=1.125
T=1.15
T=1.175
T=1.20
T=1.225
T=1.25
T=1.275
T=1.30
T=1.325
T=1.35
T=1.375
T=1.40
T=1.425
T=1.45
T=1.475
T=1.50
T=1.525
T=1.55
41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)
T=1.80
T=1.82
T=1.84
T=1.86
T=1.88
T=1.90
T=2.00
T=2.10
T=2.20
T=2.30
T=2.40
T=2.50
T=2.60
T=2.70
T=2.80
T=2.90
T=3.00
T=1.81
T=1.83
T=1.85
T=1.87
T=1.89
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204BNUT (FOR REAR DRIVE PINION)
OD=43
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301CASE SUB-ASSY, REAR DIFFERENTIAL
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
SINGLE TYPE
DOUBLE TYPE
41331GEAR, REAR DIFFERENTIAL SIDE
41341PINION, REAR DIFFERENTIAL
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.60
T=1.75
T=1.90
T=2.05
T=1.55
T=1.65
T=1.70
T=1.80
T=1.85
T=1.95
T=2.00
T=2.10
41371SPIDER, REAR DIFFERENTIAL
9161160814
main91611-60814
29 parts on this diagram · 3 diagrams in section
