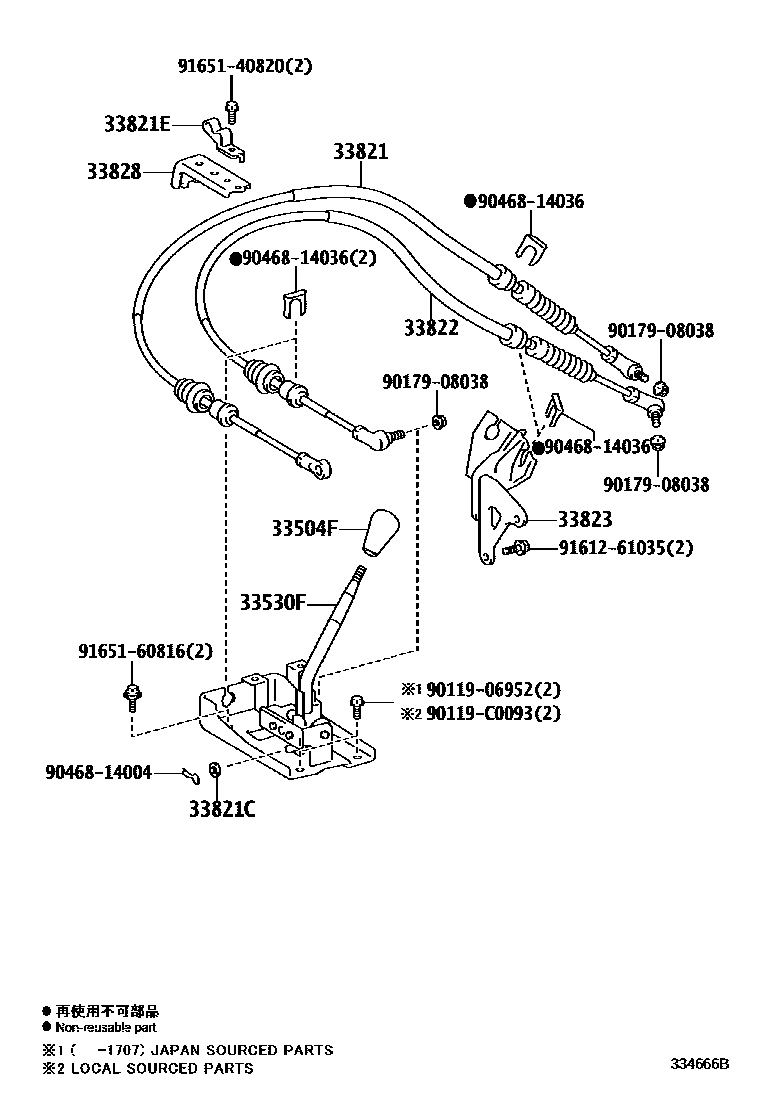

SHIFT LEVER & RETAINER

0001 1 0002 1 0004 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-36051-C0iGRB53..LX201301-202412

BLACK,TRIM4#

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-0S010iGRB53201301-202301

main33530-36200iTRB53,XZB53201301-201910

main33530-36220iGRB53..LX202302-202412

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33821-0S020iTRB53201301-201910

main33821-0S030iXZB53201403-201507

main33821-0S040iGRB53201301-202412

33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

main90201-08023iGRB53,TRB53,XZB53201301-202412

33821ECLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)

main33829-0S010iXZB53201403-201507

main33829-0S020iGRB53201301-202412

main33829-36111iTRB53201301-201910

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33822-0S020iTRB53201301-201910

main33822-0S030iXZB53201403-201507

main33822-0S040iGRB53..EX,STD201301-202412

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33804-36100iTRB53201301-201910

main33804-36170iXZB53201403-201507

main33804-36180iGRB53201301-202412

33828BRACKET, TRANSMISSION CONTROL CABLE, NO.4

main33828-0S010iXZB53201403-201507

main33828-0S020iTRB53201301-201910

main33828-36110iGRB53201301-202412

9011906952

main90119-06952

90119C0093

main90119-C0093

9017908038

main90179-08038

9046814004

main90468-14004

9046814036

main90468-14036

9161261035

main91612-61035

9165140820

main91651-40820

9165160816

main91651-60816

16 parts on this diagram · 3 diagrams in section
